Dayu Conserving Water Group Co., Ltd.

Wuqing District, China

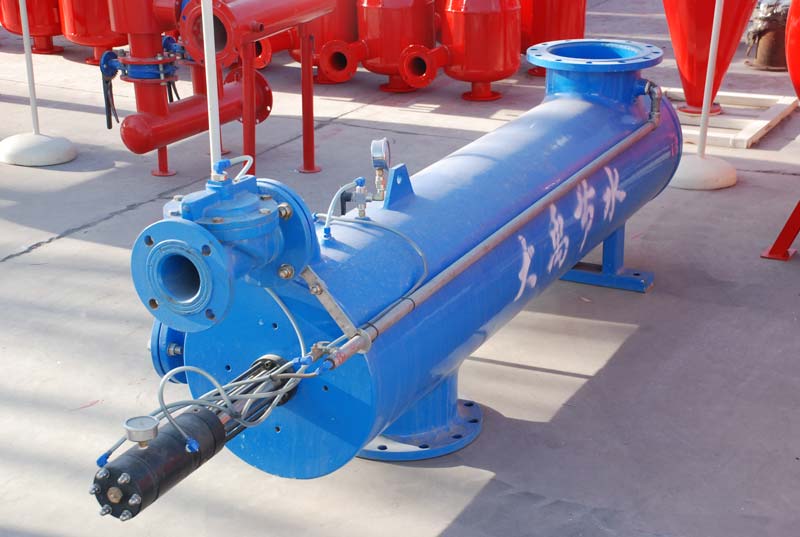

The dayu hydraulic screen filter, with a water-driven self-cleaning mechanism, is ideal for places where power is not available. the filtration process begins when raw water flows through the filter inlet into the coarse screen. Here, the water is pre-filtered in order to protect the cleaning mechanism from large debris. The water then passes through the inner surface of the fine screen; dirt particles are trapped and accumulate inside the filter while clean water flows through the filter outlet. The gradual dirt accumulation on the inner screen surface causes pressure difference across the screen. when the pressure differential across the screen reaches a pre-set level (0.030.05 mpa), the drainage valve will open automatically and the self-cleaning process starts. Thus the dirt particles are sucked into the drainage pipe.

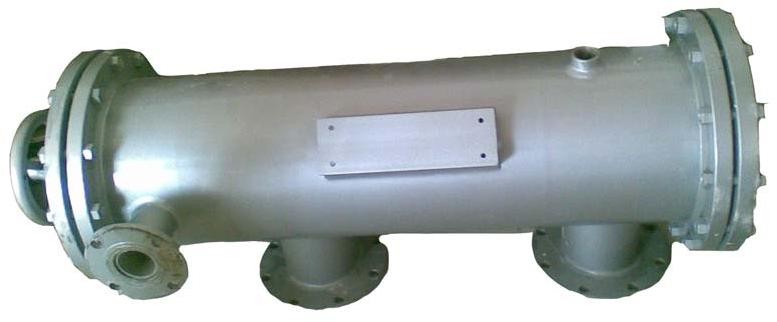

The manual brushaway screen filter, developed and manufactured by dayu conserving water group co., ltd. Consists of stainless steel brushes fitted on a frame and inserted into the filter screen. Users can use a handle, outside the filter, to brush away particles from the screen surface, and move them out of the filter. Brushing is done during the filtering process without stopping the water supply. this type of filter is designed in an advanced and reasonable way. It can effectively remove various organic or inorganic particles, with low resistance and large space for impurities. The filter can be specially installed according to different water sources. product characteristics 1. High filtration accuracy, large filtration area, large space for impurities; 2. Easy way of cleaning -- use stainless steel brush to clean the screen 3. The manual operation of cleaning is more reliable; 4. Less time and less water for back washing, the water needed is 1% of the total discharge. 5. The filter structure can be designed according to user's requirements. It is convenient to install and disassemble.
