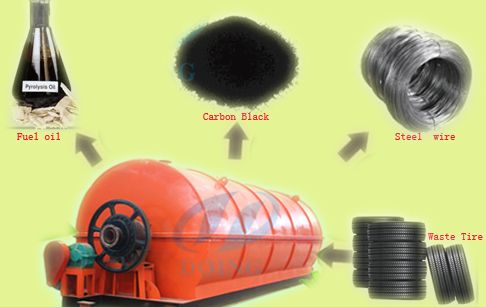

As a kind of polymer, waste rubber has aroused more and more social attention. Waste rubber recycling can not only reduce the white pollution, but also create profits and ease the energy crisis. In order to achieve the recycling of waste rubber, DoingGroup has developed a waste rubber pyrolysis plant, but also can be used for waste plastics, waste tires and other waste reprocessing. This waste rubber treatment plant proved to be successful due to some advantages of it: 1. Standard pressure vessel, Q245R standard boiler plate steel, the thickness of 16mm.2. Seamless welding process, not easy to crack, long service life.3.360 degree omnidirectional insulation cover, thermal insulation effect is more prominent.4. A negative pressure, water seal device to ensure safe and efficient operation of equipment. And negative pressure equipment can increase the oil rate.5. Environment friendly, energy efficient. Our equipment has a special dust deodorant device that can achieve the waste liquid waste disposal, will not cause any harm to the environment. The main output of waste rubber processing equipment for the cracker oil, carbon black, combustible gas.Fuel Oil: Steel Plant, Boiler Heating, Heavy Oil Generator, Cement Plant. If it is further processed, will be refined oil, can be used for diesel generators, light fuel, heavy machinery.Carbon black: Pressure ball combustion and refined toner, refined toner which can be used for new tires, rubber soles, pigment manufacturing.Combustible gas: directly in the equipment was recycled for the reactor fuel heating, energy saving.

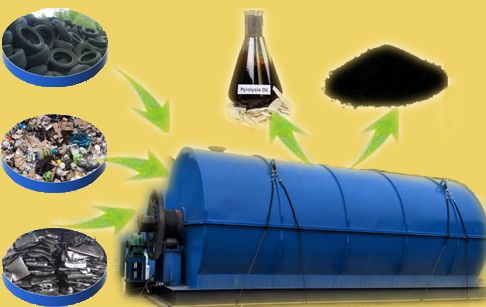

Nowadays , waste rubber pollution is becoming more and more serious damage to our environment. In order to achieve the recycling of waste rubber, doinggroup has developed a waste rubber pyrolysis plant, but also can be used for waste plastics, waste tires and other waste reprocessing. The following is a brief description of the process of rubber pyrolysis plant:1. Use mechanical waste tires into the reactor, closing the entrance to prevent gas from flowing out.2. Carbon, wood or fuel heating reactor, the reactor generally reach 200-300 degrees is the beginning of the cracking reaction, when the waste tires vaporized into oil vapor.3. Oil and gas into the condensing system, liquefied into oil, was collected to the tank device.4. The liquefied petroleum gas that can not be liquefied under normal pressure will be returned to the reactor as fuel for combustion.5. After completing the oil production, the reactor will be cooled. When the temperature drops to 40 degrees, the carbon black and wire will be removed automatically or manually. This waste rubber treatment plant proved to be successful due to some advantages of it:1. Reactor is made according to the standard of pressure production, using 16mm thick boiler special steel and arc compression head.2. High-standard 3-step welding process, not easy to crack, long service life.3. pinion rotation device, power is small, not directly contact the reactor, less heat transfer, not easy to deformation.4. The three-stage cooling system uses tube condensation, also known as a heat exchanger, and is currently the most commonly used and best performing condenser in the oil industry. 5. Safety device oil-water separator, water seal, vacuum device.
