Dolang Technology Equipment Co. Ltd.

Jinan, China

• MOQ 1 Set(s)

We are offering hydraulic and pneumatic training system. Equipment overview dlyy-dh101 type hydraulic training device, is design, research and develop according to experimental teaching outline of the national college “hydraulic transmission” for guidance, and combine with requirements of vocational training and professional further study to the fluid drive. this training device uses operating board of the open structure, all kinds of hydraulic components can be flexible install in operation board, connect with hydraulic pressure tube between components, the quick-change connector of hydraulic hose can make training experiment is fast and safe. Besides large whole set of components can be chose to upgrade! it has very strong expansibility and actual exercise, has the following features: ·can meet the requirements of the school ·meet the base and teaching training system of need of practical applications . ·equipment structure is firm and has good stability ·low noise operation ·layout clear and intriguing design hydraulic operation station it consists of aluminum material profile, and can be set up the system according to the different requirements, so it is easy to change the structure. Ambry that be made of special composite material is divided into the upper and lower levels, have their own independent lock system. The every component can be easily to storage. Work station equipped with loop work board and set oil pan to convenient for cleaning equipment. Four caster wheel with crack slot in order to move and install. Due to the point and height is adjustable, convenient for efficient experiment. Panel grooves gap is 25 mm, can easily move all kinds of components inserted on it. Experiment table dimension：1600（length）×750（width）×1700（height） aluminium panel dimension：1200（length）×750（width） groove gap：25mm aluminum wood cabinet：1 piece caster with crack groove: 4 pieces

• MOQ 1 Set(s)

We offer diesel engine training set. Introduction ● the training set adopt greatwall common rail electronical controlled diesel engines assembly, with complete accessories, can be used to complete various training content of engine load. All components adopt original parts, qc strictly testified, in accordance with production quality management standard of iso9001:2008, suit for car engine structure and maintenance practical training in the medium and senior vocational schools and car training institutions, satisfy the requirement of teaching training project on the electronic controlled engine structure, working principle, fault diagnosis, fault setting and exclusion assessment technical feature ● support frame adopt imported paint special for car, high temperature coating, with anti-corrosion function ● support frame material is welded with quality square tube(40*60*3mm) ● size: 1580*880*1780mm

• MOQ 1 Set(s)

We offer proximity sensor training set. General the sensor is tools to get information; sensor technology is sensor design, manufacturing and application comprehensive technology and also is one of the three pillars of information technology (sensor and control technology, the communication technology and computer technology). Sensor application popularize the scientific research, the military industry, agriculture, business, traffic, environmental protection, medical care, health, weather, marine, aerospace, aviation, household appliances..all areas and departments. It is the indispensable foundation part of production automation, scientific research, and the measurement of accounting, detection and diagnosis system. Technical parameter 1. Input power: ac220v±10%（single phase three wire） 2. Rated power:

• MOQ 1 Set(s)

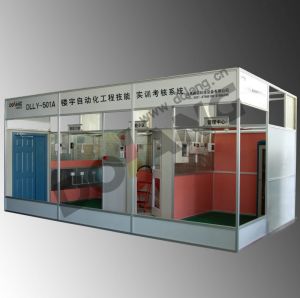

Offers building automation engineering skill training evaluation system. Equipment oveiview ⅰ this system is building automation technology training assessment equipment developed for vocational college education, vocational training institutions , according to the intelligent building industry building automation characteristics , on the basis of access to inductry site, aim to practice teaching to design specially. Includes computer technology, network communication technology, integrated wiring technology, ddc technology, strengthened the intelligent building system design, installation, wiring, wiring, programming, commissioning, operation, maintenance and engineering ability. Suitable for intelligent building, building automation and related professional teaching and training. This system in intelligent building model as the foundation, contains the intelligent building, intelligent community, management center and corridor lights typical structure, covering the intercom entrance guard, security, video monitoring, fire control, integrated wiring and ddc control system, each system can not only independent operation, also can achieve linkage. Through this system do training project, check the team cooperation ability, planning organization ability, building equipment installation and commissioning ability, professional qualities, communication ability, etc. Technical parameter 1, total power input: ac220v ground. 2, direct power output: universal three-plug, ac220v. 3, controlled protection: 16a single-phase leakage protection switch, dc switching power supply. 4, controlled power output: safe plug interface, ac220v, dc24v, dc18v, dc12v. 6 dc power: dc24v_6a dc18v_8a, dc12v_12a. 7 bus connection interface: safe plug interface, the maximum capacity of eight. 8, computer network interface: rj45 utp shielded (10100mbps).

• MOQ 1 Set(s)

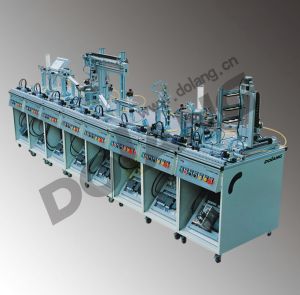

We offer modular product system. Overview modern industry is the comdination and integration of computer, information technology and advanced industrial technology which covers products designing, producing preparation and manufaturing execution, etc. What is more, modern industry is also one of the important supports for the development of nation and society. To strenghen students’ ability of dealing with social challenges, we should waste no time to improve the ability both on theory and practice of students. With urgency and realistic significance, we should pay more attention to the construction of experimental platform for electro-mechanical engineering flexible manufacturing system. basic circuit experiment basic knowledge of mechatronics and pneumatics structure and function of mechatronic element operating process and switch state of the control system the application of magnetic induction-type proximity switch fault analysis of the simple electrical pneumatic control circuit basic physics knowledge of electricity and pneumatics principle of relay control electricity self-maintain circuit application of sensor in control system

• MOQ 1 Set(s)

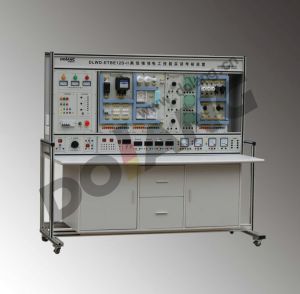

We offer advanced electrical technology know-how training set. Overview “dlwd-etbe series electrical technology know-how training series” have obtain 10 patents and have been ranged to “china good practical patent”. It was filtered the most potential gold patent project by hongkong international patent technology patent products exposition. The inventor was written into “contemporary world outstanding scientific and technology experts. Also the introduction of inventor was recorded by “the dictionary of chinese celebrities” technical parameter each side have a power switch with leakage protection. Leakage current up to the technical parameter: input power：ac380v, 50hz60hz；three-phase, five wires environment: temperate range is -5～40℃ protection device action when capacity current below 1.5kva, 30ma 2. 3 pcs ac voltmeter with indicator 450v 3. Ac power: 1) three phase output 2) 0～220v2a adjustable ac power output 3) transformer ac output: equipped with emergency stop button. Cut three-phase output when push it. 4. Dc stabilized power supply: 1) 1.25～30v2a accuracy of adjustment 1%, 2) provide 0~190v2a adjustable dc power 5. Digital meter 1) ac digital voltmeter , precision class 1.0 2) ac digital ammeter, measurement range 0~5a , precision class 0.5; 3) dc digital voltmeter, measurement range 0~300v, input resistor 10 mω, 4) dc digital ammeter, measurement range 0~5a , precision class 0.5; 6, commutation diode 1n5408

• MOQ 1 Set(s)

Offers industrial automation network training system. Ⅰ. Overview dlgk-simna industrial automation network training platform is researched and developed on the base of siemens fully integrated automation plc control system. The industrial automation training platform is comprehensive training device in view of the higher education and vocational and technical education, suitable for electromechanical integration, automation professional teaching in all kinds of vocational school and relevant professional and technical personnel training. This system not only can be used as automation and network teaching training system, can also combined with the subsystem make up network classroom, and to use as teacher machine. Ⅰ. Overview dlgk-simna industrial automation network training platform is researched and developed on the base of siemens fully integrated automation plc control system. The industrial automation training platform is comprehensive training device in view of the higher education and vocational and technical education, suitable for electromechanical integration, automation professional teaching in all kinds of vocational school and relevant professional and technical personnel training. This system not only can be used as automation and network teaching training system, can also combined with the subsystem make up network classroom, and to use as teacher machine.

• MOQ 1 Set(s)

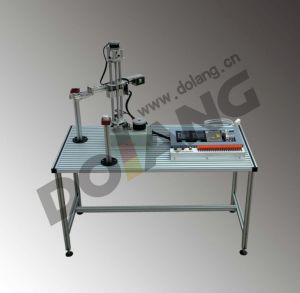

Offers manipulator training set. Ⅰ. General with programmable controller as the core of the industrial control integration technology, at present it has rapidly developed into a new subject in the colleges and universities. Its content is not only has rich theory but also has wide practice. It can practice the students’ working ability, also can develop their creative ideas. It has formed an important course of the automation, mechatronics and mechanics. About plc curriculum, the necessary teaching materials, practice, laboratory construction planning, all of them has won the leaders and professional teachers' full attention. My company's "dlfa-jxs1 manipulator training set" is the plc professional control training platform developed for vocational education, technical education, and higher education. It is specially opened courses of "programmable logic controller technology" , "programmable logic controller principle and its application", "maintenance electrician", "plc application technology" and "plc application technology” for the universities of our country. the device set plc, the position control, the pneumatic technology combination in one of the training system, through the sensor signal acquisition, plc programming, more complex position control for dc motor, temporal logic control, and realize the vehicle in and out management function. This device is applicable to the senior vocational college students, and higher institutions to study the programmable controller, application training, student and staff training. It can not only meet all institutions of higher learning, vocational school of plc experiment teaching and related course design, the requirements of the assessment, and can also be used as engineering and technical personnel training equipment.

• MOQ 1 Set(s)

We offer programmable logic controller training set. Equipment overview dlplc-fxgd series programmable logic controller comprehensive training device, is a set of comprehensive teaching experiment and training system that integrated the plc principle and application technology(mitsubishi fx2n-32mr) configuration king software application technology. This experiment system adopts full open type modular structure, apply to all kinds of vocational colleges, secondary specialized schools and other training institutions, not only can be used as “the programmable logic controller technology ", "the programmable logic controller principle and application", "maintenance electrician", "the plc application technology", the plc principle and application", and other relevant materials supporting teaching experiment equipment, and can also be used for qualification examination, the graduation design, curriculum design, interest developing, etc. Technical parameter 1. Experiment table dimension:1800×800×1662mm(length×width×height). 2. Work power: input power: three phase five wire ac380v±10%，50hz60hz. Output power: three phase ac 380v±10％ 50hz60 hz； single phase ac 220v±10％ 50hz60 hz. Acquire has dc voltage stabilizer 3. Power control: automatic air switches hige power, have over-voltage protection, voltage protection, over current protection, leakage protection devices. 4. Plc: mitsubishi fx2n-32mr, relay inputoutput method.

• MOQ 1 Set(s)

Offers modular serial-link robot training system. General dlfa-r601dm modular serial-link robot is typical mechatronic system, the design and manufacture apply modular design idea and industrial grade standard, with characteristic modular、industrialization, openness, multi-control etc, serial-link robot is combined by each joint module flexibility, can be combined into two、three、four、five、six-axes serial-link robot, can completely complex movement planing and control within space, widely used in colleges related specialties electrical transmission control、computer control、information engineering control and cnc technology professional field research and teaching experiment, this is a practice platform for specialty like mechatronicsautomation carry our verity of experimental training、application development and scientific research. Technical parameter dlfa-r601dm modular serial-link robot is composed of feeding part、serial-link robot、material sorting and control part. Robot contains of verity industrial transmission device, step motor、servo motor、position encoder、limiting and protection device, which can realistic simulate the object transmission process of robot arm. The control part support three kinds of control method(plc control、motion control card 、manual control). 1. Power input： ac 220v±10% , 50hz. 2. Robot desktop size：800mm×780mm×850mm. 3. Control system overall size：1400mm×780mm×1400mm.
