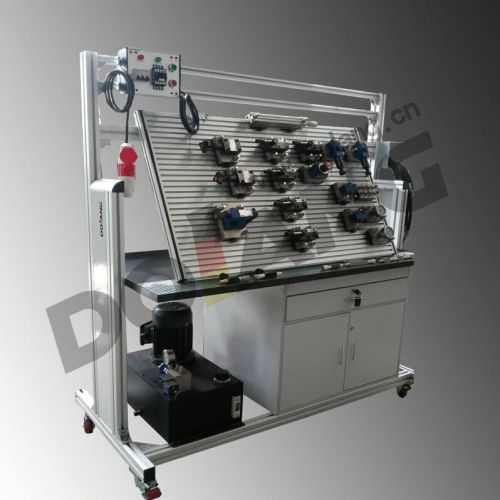

Hydraulic and Pneumatic Training System

We are offering hydraulic and pneumatic training system. Equipment overview
dlyy-dh101 type hydraulic training device, is design, research and develop according to experimental teaching outline of the national college “hydraulic transmission” for guidance, and combine with requirements of vocational training and professional further study to the fluid drive. this training device uses operating board of the open structure, all kinds of hydraulic components can be flexible install in operation board, connect with hydraulic pressure tube between components, the quick-change connector of hydraulic hose can make training experiment is fast and safe. Besides large whole set of components can be chose to upgrade! it has very strong expansibility and actual exercise, has the following features:
·can meet the requirements of the school
·meet the base and teaching training system of need of practical applications .
·equipment structure is firm and has good stability
·low noise operation
·layout clear and intriguing design
hydraulic operation station
it consists of aluminum material profile, and can be set up the system according to the different requirements, so it is easy to change the structure. Ambry that be made of special composite material is divided into the upper and lower levels, have their own independent lock system. The every component can be easily to storage.
Work station equipped with loop work board and set oil pan to convenient for cleaning equipment.
Four caster wheel with crack slot in order to move and install. Due to the point and height is adjustable, convenient for efficient experiment. Panel grooves gap is 25 mm, can easily move all kinds of components inserted on it.
Experiment table dimension：1600（length）×750（width）×1700（height）
aluminium panel dimension：1200（length）×750（width）
groove gap：25mm
aluminum wood cabinet：1 piece
caster with crack groove: 4 pieces
