Dongguang Packaging Machinery Co., Ltd.

Cangzhou, Hebei, China

• MOQ 1 Set(s)

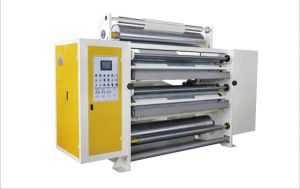

We offers glue machine. Working width:1400--2500mm max working speed:280mmin glue roller diameter:318mm, the surface press of rhombus pattern hard chromium. Steel products（s45s）cylindrical grinding, hard chrome polishing process. air cylinder 4 sets control paper pressure roller up and down, the gap adopt electric or auto adjustment. the syne setting: the servo motor control its speed, let it sync with the cardboard in double facer, when in a short shut down, the motorcan be in a lower speed in order to avoid the glue do not dry on the surface of glue roller. the glue thickness according to the speed plc control automatic adjustment, touch screen display accurate data, also can be electric adjustment. glue unit servo motor driven.

• MOQ 1 Set(s)

We offers thin blade slitter scorer. technical specification: design speed: 100mmin max. Slitting width: 1400mm min. Slitting width: 120mm 5 blades 8 scores the whole machine can move left-right â±90mm whole machine dimension, 3400, 1000, 2100 total power, 7.55kw electricity 380v 50hz working pressure 0.6~0.9 mpa comparative moisture, 20, 90 *temperature required 5, 50 structure characteristic: conversion adjustment speed can automatically follow production speed, and keep in-phase in the process of production, auto- grinding edge system can be still working while machine stops, and can set the interval meter and the grinding time at any time according to the material and condition of hem. 1mm high quality blade slits cardboard in high speed, slitting line is smooth, beautiful, unchanged shape, and good for printing main bought-in parts, raw materials and origin: mail wall plate two sides: q235a slitting motor frequency control 4kw 1 set continuous work scorer motor 3kw 1 set continuous work horizontal movement motor: 0.55kw 1 set, continuous work blade: diameter 260mm materials: rigid alloy steel bears are from wa, ha, luo cities electric appliances: chint, china pneumatic cylinder, pneumatic parts: tianyuan, airtac, origin: shandong, taiwan.

• MOQ 1 Set(s)

We offers df-636 double baker facer. technical specification: working width: 1400mm design speed:100mmin temperature requirements: 160～200℃, steam pressure: 0.8～1.3mpa steam consumption:1.2～1.8th, pneumatic pressure: 0.6～0.9mpa heating plants section length: 6240mm(520mm×12), cooling section length: 4000mm total power:51kw electric power: 380v, 50hz dimension: about 11600mm×1900mm×1950mm(l×w×h) heating section: 1 heating plants dimension:2000mm×520mm×135mm. (l×w×h) 2 heating plants raw materials: 20g steel 3. Machining techniques: surface carefully grinding 4.joint method: single plate cross type 5. Temperature control type: many groups section control 6. Pressing type: adopts dense pressing roller type 7.pressing roller diameter: ￠60mm, 45#solid steel 8.holding paper diameter: ￠60mm, 45#solid steel driving part, transportation part: 1.main drive roller: upper diameter ￠636mm, lower diameter ￠636mm 2.big front belt idle roller diameter: ￠316mm, raw materials:2＃steel 3.big-small belt correct error roller diameter: ￠145mm, raw materials:20＃steel 4.front-back belt roller diameter: ￠120mm, raw materials:20＃steel 5.manual tension roller diameter: ￠120mm, raw materials:20＃steel 6.hydraulic tension roller diameter: ￠145mm, raw materials:20＃steel 7. Driving part main motor: adjustable speed motor 45kw structure characteristic: 1. Whole body is high strength channel steel, stable, beautiful, suitable for high speed machinery running. 2. Heating plate is made according to national container safety standard, of 520mm steel. Inside, s type construction will raise the steam usage efficiency. More welded rods will keep heating plate unchanged in shape. 3. Heating section is tense pressure roller structure, cardboard sticks firmly and levels off.
