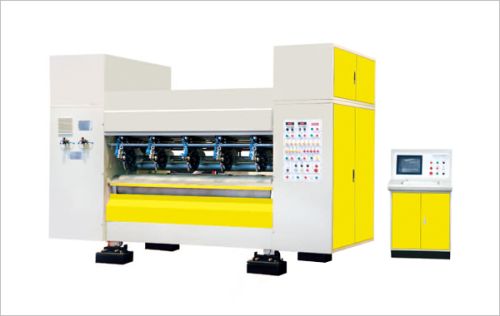

Thin Blade Slitter Scorer

We offers thin blade slitter scorer.
technical specification:
design speed: 100mmin
max. Slitting width: 1400mm min. Slitting width: 120mm
5 blades 8 scores the whole machine can move left-right â±90mm
whole machine dimension, 3400, 1000, 2100
total power, 7.55kw
electricity 380v 50hz
working pressure 0.6~0.9 mpa
comparative moisture, 20, 90 *temperature required 5, 50
structure characteristic:
conversion adjustment speed can automatically follow production speed, and keep in-phase
in the process of production, auto- grinding edge system can be still working while machine stops, and can set the interval meter and the grinding time at any time according to the material and condition of hem.
1mm high quality blade slits cardboard in high speed, slitting line is smooth, beautiful, unchanged shape, and good for printing
main bought-in parts, raw materials and origin:
mail wall plate two sides: q235a
slitting motor frequency control 4kw 1 set continuous work
scorer motor 3kw 1 set continuous work
horizontal movement motor: 0.55kw 1 set, continuous work
blade: diameter 260mm materials: rigid alloy steel
bears are from wa, ha, luo cities
electric appliances: chint, china
pneumatic cylinder, pneumatic parts: tianyuan, airtac, origin: shandong, taiwan.
