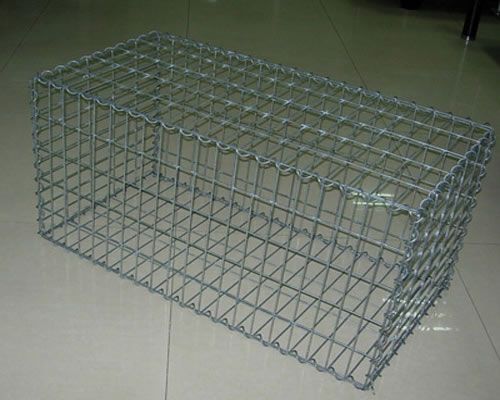

We are offering gabion mesh. Gabions consist of rectangular units, fabricated from a double-twisted hexagonal mesh. Filled with stones, gabions become large, flexible and permeable elements from which a broad range of structures may be built. Gabions and mattresses are widely used for hydraulic and geo- technical control such as retaining walls, riverbank protections, weirs, channel linings etc. gabions are divided into cells with diaphragms (usually spaced at 1 meter or 3 intervals), whose function is to reinforce the structure. The mesh (except for the diaphragms) is reinforced on all edges with wires of a larger diameter to strengthen the gabions and facilitate the assembly and installation. internation standard to follow:astm 975 standard:style 1 galvanzied wire as per astm a 641, class 3 soft temperstyle 2 style 1 and overcoated with pvcstyle 3 zn-5al-mm coated wire as per astm a 856en 10223-3 standard:galvanzied wire meets en 10244-2 and old bs 443tensile strength between 420nmm2 and 500nmm2 according to en 10218-2tolerances: on the hexagonal, double-twisted wire mesh opening shall not exceed 10% on the nominal dimension.
Additional Information:
China, Hebei, China
