Flumatic Liquid Control Equipment Co. Ltd

Zhejiang, China

dispensing syringe barrels are silicone and chloride- free and designed to work with syringeguns and pneumatic dispensers. the syringe barrels are made from low friction polypropylene to ensure accuracy, repeatability and productivity. features a luer lock for secure dispense tip attachment. syringe(usa) available in 3 colours: natural for most generic applications, amber provides protection of uv/visible light block (up to 520nm), but with the ability to see material inside the syringe barrel, and black for total light block. maximum operating pressure 100 psi (6.9bar). pistons available for all barrel sizes as well as end caps and adapter assemblies.package:50pcs/bag specification: vol. clear black amber dark amber package 3cc te1e03c te1e03b te1e03a te1e03d 50pcs/bag 5cc te1e05c te1e05b te1e05a te1e05d 50pcs/bag 10cc te1e10c te1e10b te1e10a te1e10d 50pcs/bag 30cc te1e30c te1e30b te1e30a te1e30d 50pcs/bag 55cc te1e55c te1e55b te1e55a te1e55d 50pcs/bag syringe(japan) available in 2 colours: natural, and green.maximum operating pressure 100 psi (6.9bar). pistons available for all barrel sizes as well as end caps and adapter assemblies. package:50pcs/bag specification: vol. clear green misty packag 3cc te1j03c te1j03g te1j03m 50pcs/bag 5cc te1j05c te1j05g te1j05m 50pcs/bag 10cc te1j10c te1j10g te1j10m 50pcs/bag 30cc te1j30c te1j30g te1j30m 50pcs/bag 50cc te1j50c te1j50g te1j50m 50pcs/bag

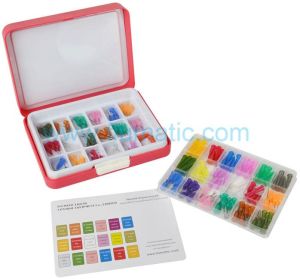

a useful tip selection kit containing 146 assorted tips from our precision te range (0.5" long), a selection of 45° and 90° bend angled tips, all size tapered tips and sample tip caps. dual level plastic box with printed card for easy product identification. all tips feature double helix locking thread for safety and are safe to use to 100 psi. hubs are colour filtered plastic for uv protection. all components are silicone and chloride free. we also can include the tips at your request. part number fu-001dkit contains the following: the upper layer 1 te714050 te tips 14g 1/2'' olive 5 2 te715050 te tips 15g 1/2'' ambe 5 3 te718050 te tips 18g 1/2'' green 5 4 te720050 te tips 20g 1/2'' pink 5 5 te721050 te tips 21g 1/2'' purple 5 6 te722050 te tips 22g 1/2'' blue 5 7 te723050 te tips 23g 1/2'' orange 5 8 te725050 te tips 25g 1/2'' red 5 9 te727050 te tips 27g 1/2'' clear 5 10 te730025 te tips 30g 1/4'' lavende 5 11 te732025 te tips 32g 1/4'' yellow 5 12 tt14 tapered tips tt 14g olive 5 13 tt16 tapered tips tt 16g grey 5 14 tt18 tapered tips tt 18g green 5 15 tt20 tapered tips tt 20g pink 5 16 tt22 tapered tips tt 22g blue 5 17 tt25 tapered tips tt 25g red 5 18 tt27 tapered tips tt 27g clear 5 the lower layer 19 te71405045 te bent tips 45@ 14g 1/2'' olive 3 20 te71505045 te bent tips 45@ 15g 1/2'' ambe 3 21 te71805045 te bent tips 45@ 18g 1/2'' green 3 22 te72005045 te bent tips 45@ 20g 1/2'' pink 3 23 te72205045 te bent tips 45@ 22g 1/2'' blue 3 24 te72305045 te bent tips 45@ 23g 1/2'' orange 3 25 te72505045 te bent tips 45@ 25g 1/2'' red 3 26 te72705045 te bent tips 45@ 27g 1/2'' clear 3 27 te71405090 te bent tips 90@ 14g 1/2'' olive 3 28 te71505090 te bent tips 90@ 15g 1/2'' ambe 3 29 te71805090 te bent tips 90@ 18g 1/2'' green 3 30 te72005090 te bent tips 90@ 20g 1/2'' pink 3 31 te72205090 te bent tips 90@ 22g 1/2'' blue 3 32 te72305090 te bent tips 90@ 23g 1/2'' orang 33 te72505090 te bent tips 90· 25g 1/2'' red 3 34 te72705090 te bent tips 90· 27g 1/2'' clear 3 35 te73005090 te bent tips 90· 30g 1/2'' lavende 3 36 te7015ll tip cap orange 5 　 total: 146

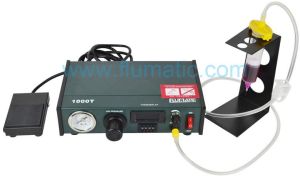

dispenses all assembly fluids digital timer vacuum control for thin fluids 2 year function warranty size 195*216*60mm dispense time 0.01to 31 seconds ±0.1% speed >600/m control mode foot pedal /finger switch standards ce approve air input 1bar-7bar (1bar =1.01972kg/cm² =14.5038psi) air output 0.1ba-7bar voltage 110vac/220vac internal voltage 24vdc consumed power working condition +5c~+40c weight < 3 kg

the pinch tube valve is a compact and cost effective device for dispensing very thin liquids, semi-viscous materials, cyanoacrylates, anaerobics, solvents, uv cure adhesives and two-component fluids. make repeat dots, beads or potting. the only part of the valve that makes contact with the liquid is the low cost replaceable pinch tube assembly. this makes the fu-1212 valve ideal for aggressive or curable liquids with no risk of the material setting and damaging expensive parts. compact and easy to set up, this valve is controlled by a valve controller. the controller provides a timed pulse of air pressure to open the fu-1212 pinch tube, allowing the adhesive or liquid to flow. a spring loaded shut-off provides the ability to make micro dots if required with no drips between shots. the shot size is determined by the time setting on the controller, the amount of opening set on the stroke control and the size of needle tip used. to feed fluid to any adl metering valve including the fu-1212, choose from our range of syringe barrels up to 55cc size, our cartridge reservoirs up to 960cc size or pressure pots up to 19 litre size. the connecting link between reservoir and fu-1212 is a fluid line. these offer safe luer lock connection and are suitable for use with most liquids and adhesives. use teflon lined or teflon for cyanoacrylates, general purpose for other fluids and tapered for more viscous gels size: 83mm l x 40mm diameter weight: 82 g wetted parts: polyethylene viscosity range: 1 - 45, 000 cps min shot size: 0.007 cc/ ml repeatability: ±0.56% flow rate: 0.54 gpm @ 60 psi (water) max fluid pressure: 60 psi ( 4 bar) material inlet: female luer lock material outlet: male luer lock mounting: 1/4" 20unc-2b on/off pressure: 50 psi (3.4 bar) minimum

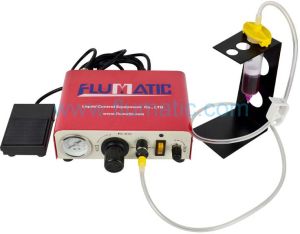

three operating modes: manual, timing and cycling foot pedal or finger switch controlled suck-back feature ensures no dripping designed for wide range of applications complete with an accessory dispensing vacuum control for thin fluids 2 year function warranty size 257*216*67mm dispensing time 0.001 to 9.999seconds operation modes manual, timer, cycles cycle rate 0.1 to .9 seconds speed >600/m control mode foot pedal /finger switch standards ce approve air input 1bar-7bar (1bar =1.01972kg/cm² =14.5038psi) air output 0.1bar-7bar voltage 110vac/220vac internal voltage 24vdc consumed power working condition +5c~+40c weight < 3 kg

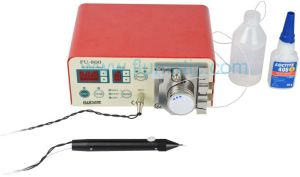

application for dispensing the liquid in lowness density(such as:instant adhesive, electrolyte. printing ink etc. turn on power and for usage without the air-pressure using the function on rolling--contact for circumvolve to reduce the resistance, and progress the timer and prolong the usage of dispensing barrel. 2 years function warranty size 190(w)*184(d)*94(h) speed 0~160rpm time/ gelatinize rolling 0~999° rolling/back rolling 1~999° voltage ac220v110v, 50/60hz min dot 0.0001cc(φ0.2*φ0.7) liquid density under 10000cps weight 3.5kg

With a bright four-digit LED screen. Three operating modes: manual, timing and cycling Foot Pedal or Finger Switch Controlled Designed for wide range of applications Digital display of dispense time Microprocessor-based control Unique TEACH function Memory for time recorder Complete with an accessory dispensing 2 Year function Warranty Size 246*145*65mm Dispensing time 0.001 to 99.99±0.00005 seconds Operation Modes LCD screen +Manual, Timer, Cycles Speed >600/m Control Mode Foot Pedal /Finger Switch Standards CE approve Air input 1bar-7bar (1bar =1.01972kg/cm² =14.5038psi) Air output 0.1bar-7bar Voltage 110VAC/220VAC Internal Voltage 24VDC Consumed Power Working Condition +5C~+40C Weight < 3 Kg

• Maximum Fluid Pressure60 PSI
• Viscosity Range1 cps - 5,000 cps

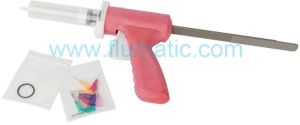

2 sizes of gun available includes syringe, piston and tips powerful hand lever leverage lightweight materials quick syringe attachment low cost solution part no.: fu-sg10 fu-sg30 volum: 10cc 30cc or 55cc material: nylon, polypropylene nylon, polypropylene colour: red/ white red/ white length: 190mm (including push rod) 190mm (including push rod) height: 135mm 135mm weight: 115g (without syringe barrel) 115g (without syringe barrel) the gun is lightweight yet robust enough for even the most demanding applications. it is portable and ideal for production work or field work. a 7:1 leverage lever reduces hand fatigue and is a significant improvement over manual hypodermic syringes, squeeze bottles or toothpaste type tubes. typical applications include rtv sealing, silicone sealing, epoxy (not rapid cure), potting, solder paste and solder flux, jointing compounds, mastics, gel to blister packs, roach gels, adhesives, inks, uv gels and greases. adhesive dispensing syringeguns are safe and hygienic, reducing risk of operator contact with the materials being dispensed. they fit comfortably in the hand for use over long periods of time which minimises the risk of repetitive strain injury. the guns are autoclavable.

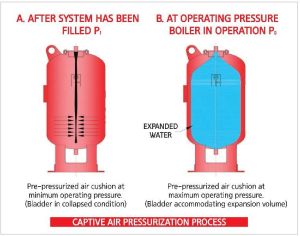

• Pressure(Mpa)0-1.0
• Capacity2L
