Pneumatic Pinch Tube Valve

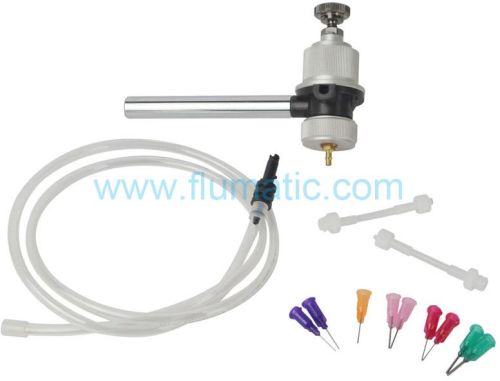

the pinch tube valve is a compact and cost effective device for dispensing very thin liquids, semi-viscous materials, cyanoacrylates, anaerobics, solvents, uv cure adhesives and two-component fluids. make repeat dots, beads or potting. the only part of the valve that makes contact with the liquid is the low cost replaceable pinch tube assembly. this makes the fu-1212 valve ideal for aggressive or curable liquids with no risk of the material setting and damaging expensive parts.
compact and easy to set up, this valve is controlled by a valve controller. the controller provides a timed pulse of air pressure to open the fu-1212 pinch tube, allowing the adhesive or liquid to flow. a spring loaded shut-off provides the ability to make micro dots if required with no drips between shots. the shot size is determined by the time setting on the controller, the amount of opening set on the stroke control and the size of needle tip used. to feed fluid to any adl metering valve including the fu-1212, choose from our range of syringe barrels up to 55cc size, our cartridge reservoirs up to 960cc size or pressure pots up to 19 litre size. the connecting link between reservoir and fu-1212 is a fluid line. these offer safe luer lock connection and are suitable for use with most liquids and adhesives. use teflon lined or teflon for cyanoacrylates, general purpose for other fluids and tapered for more viscous gels
size: 83mm l x 40mm diameter
weight: 82 g
wetted parts: polyethylene
viscosity range: 1 - 45,000 cps
min shot size: 0.007 cc/ ml
repeatability: ±0.56%
flow rate: 0.54 gpm @ 60 psi (water)
max fluid pressure: 60 psi ( 4 bar)
material inlet: female luer lock
material outlet: male luer lock
mounting: 1/4" 20unc-2b
on/off pressure: 50 psi (3.4 bar) minimum
