Our product range contains a wide range of 220kw Electricity Cummins Diesel Generator and Open Type Cummins Diesel Generator 550kVA
deepsea & smartgen control panel:
1. Function:
automatic start/stop
control ats
2. Protection and control and alarming:
water temperature
oil/fuel pressure
engine revolve speed
ampere control
voltage control
wire disfunction detecting
remote control by computer, control cabinet, even by mobile message
Additional Information:
Payment Terms : L/C, T/T
Packaging Details : Wooden Package or Plastic Film Package in Container
Delivery Time : 30 Working Days After Received Deposit
diesel generator max. Output:550kva
diesel generator rate output:500kva
warranty:all equipments are guaranteed for a period of 12 months limited or 1000 operating hours from date of initial start up, warranty against defective material and workmanship, subject to which occurs first.
delivery time:with 25day after received your firm order.
Additional Information:
Payment Terms : L/C, T/T
Packaging Details : Plastic Film Package in Container
Delivery Time : 30 Working Days After Received Deposit
500kVA Cummins Specification

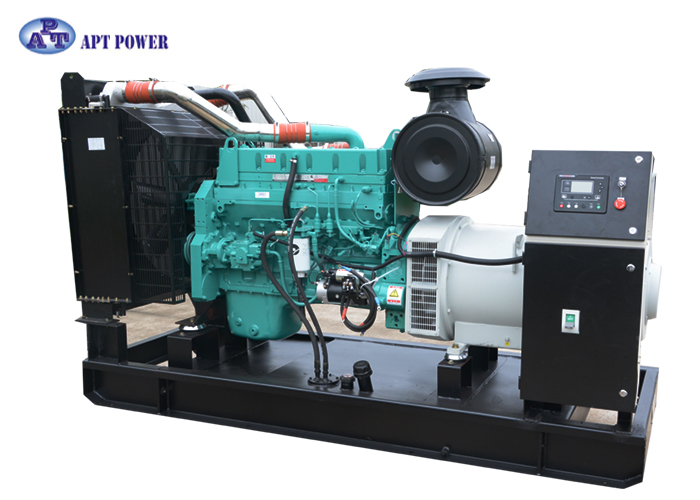

Open Type Cummins Diesel Generator 550kVA with Stamford Alternator
Engine Brand: Cummins
Engine Original: U.S.A.
Alternator Brand: Stamford
Alternator Manufacturer: Cummins Generator Technologies
Diesel Generator Max. Output: 550kVA
Diesel Generator Rate Output: 500kVA
Warranty: All equipments are guaranteed for a period of 12 months limited or 1000 operating hours from date of initial start up, warranty against defective material and workmanship, subject to which occurs first.
Delivery Time: With 25 Day After Received Your Firm Order.
Cummins Diesel Generator Specifications:
| Model | A-C550 | |
| Standby Power | kVA | 550 |
| kW | 440 | |
| Prime Power | kVA | 500 |
| kW | 400 | |
| Frequency | Hz | 50 |
| Output Voltage | V | 400/230 |
| Oil Consumption | L/H | 0.33 |
| Dimension For Open-type | mm | 3490 X 1680 X 1920 |
| Weight For Open-type | kg | 4800 |
| Dimension For Soundproof | mm | 4350 X 1450 X 2180 |
| Weight For Soundprof | kg | 5300 |
| Engine Manufacturer | Dongfeng Cummins Engine Co., Ltd. | |
| Engine Model | KTA19-G3A | |
| No.of Cylinder | 6 Cylinder in line | |
| Bore | mm | 159 |
| Stroke | mm | 159 |
| Displacement | L | 18.9 |
| Cooling Fan Air Flow | m3/min | 588 |
| Compress Air Flow | m3/min | 41.5 |
| Exhaust Gas Flow | m3/min | 111.3 |
| Exhaust Gas Temperature | � | 450 |
| Lubrication Oil Capacity | L | 50 |
| Cooling Water Capacity | L | 91 |
| Starting Voltage | V | 24 |
| Engine Max.Output Power | kW | 504 |
| Alternator Manufacturer | Cummins Generator Technolgoies | |
| Alternator Model | HCI 544 C | |
| Alternator Brand | Stamford | |
| Rate Output | kVA | 500 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H | |
| Protection Grade | IP23 | |
| Alternator for choice | We also have Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator for your choice. | |
| Control Panel Model | AF500 | |
| Controller | Deepsea Brand Model DSE7320 | |
| Function of control panel | Automatic genset start/stop | |
| Automatic battery charger | ||
| Emergency stop | ||
| AMF (Automatic Mains Fault) | ||
| Remote control | ||
| Micro-processor based design | ||
| LED alarm indication and Sound alarm | ||
| Display of the controller | Generator voltage: Uab, Ubc, Uca | |
| Generator current: Ua, Ub, Uc | ||
| Generator temp.: �/� both display | ||
| Generator frequency: Hz | ||
| Generator power: kW, kVA, kWh, kVAr, kVArh, kVAh | ||
| Generator starts count: 999999 times (Max) | ||
| Generator pressure: kPa/Psi/Bar both display | ||
| Charging Voltage: V | ||
| Battery Voltage: V DC | ||
| Protection of Diesel Generator | Over / Under Speed Alarm and Shutdown | |
| Start / Stop Failure Alarm | ||
| Over Current Alarm and Shutdown | ||
| Under / Over Generator Voltage Alarm and Shutdown | ||
| Low Oil Pressure Alarm and Shutdown | ||
| High Engine Temperature Alarm and Shutdown | ||
| Over Load Alarm and Shutdown | ||
| Low and High Battery Voltage Alarm | ||
| Lose of Speed Signal Alarm and Shutdown | ||
| Charge Fail Alarm |
||
