GE Processing Co.,ltd

zhangjiagang, China

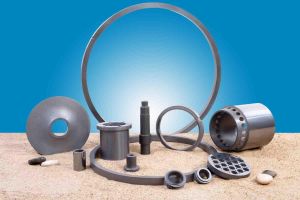

We are offering seal material. 1.ge101 reaction silicon carbide ge101 is pressed into blank ring with α-sic and the additive.it contact with the liquid state silicon in the high temperature.tue graphite in the blank ring reaction with the in filtered si product β-sic and it combine with α-sic.the free silicon fills the porosity then we gain the high dense material.it can be used in the moderate concentration acid or alkali medium 2.ge102 reaction silicon carbide with free graphite in order to advance the performance of the silicon carbide seal ring, our company exploits ge102 based on ge101.it is the reaction silicon carbide with free graphite.it contains some fine carbon grain in the ceramic body.so except the performance of the reaction silicon carbide ge101 it is also has high self-lubricate but low friction coefficient.it is applied to the dry friction condition. 3.ge201 sinter silicon carbides ge201 is out new products’.it pressed into blank ring with pure α-sic and the additive.it uses the pressless technique sintering in the high temperature become high purity, high density and no free silicon sic ceramic.compare with other engineering ceramics such as al2o3 and reaction reaction-bonded silicon carbide has good performance of its hardness, intensity, corruption resistant, hith-temperature, and concussion resistant.it can be used in strong corruption, high rotating and wearable environment and can also use in rebound board, nozzle and so on field. 4.ge202 sinter silicon carbide with free graphite ge202 is the product which is added graphite grains based on the ge201.compare with ge201, it not only doesn’t reduce its corruption resisted but also increases its self-lubricate and carrying capacity.it is suit to using in the strong corruption, high carrying capacity, dry friction and hard face-hard face environment

We are offering split seal. gp design features: single, balanced seal ; operating limits: temperature: -20～160℃； speed: 11ms; pressure: 8bar; split seal is used for the situation that it needs fast installation, or the replacement time is too long that can’t meet the maintenance time. Advantage: easily replaced without dismantling equipment. The clamp ring which is used in packing seal can be replaced with split seal. Disadvantage: it is limited by pressure and solid medium. But we’re keeping on extending the application. Material: seal face: carbon, sic, ceramic, secondary seal: nbr, viton, epdm, metal parts:304, 316

We are offering agitators. G70ag70az design features: single, balanced cartridge seal, anti-negative pressure design, “z” is with sleeve . Operating limits: temperature:-20~220℃; speed: 5ms, pressure: 13 bar; standard: din28138 stainless steel and ceramic is the two main material for agitator seal. According to different working conditions, there’re single, double, sleeve, and no-sleeve design, etc. Special design can reduce the limits of diameter, pressure, speed, temperature, axial displacement, etc. Material: seal face: carbon, sic, tc; secondary seal: fep, viton, epdm, kalrez , metal parts: 304, 316, c-276, dual-phase steel, ti, bellow: 316, am350, c-276, alloy718, ti

We are offering slurry seal. g51s normally, g51s is vertical mounted, and applied to pulp & paper industry, or other industries. material: seal face: sic, tc; secondary seal: nbr, viton, epdm, kalrez, metal parts: 304, 316, c-276, dual-phase steel, ti; design features: dul, balanced cartridge seal, operating limits: temperature:-20~220℃; speed: 23ms, pressure: 25 bar;

• MOQ 1 Piece

We offer ANSI standard cartridge seal. Design features: Single, spring cartridge seal, Interchangeability, Operating limits: Temperature: -50~204℃; Speed: 23ms; Pressure: 20 bar; Standard: EN12756, ANSI Modular design, “Q” is for back cooling design, “F” is for pump spiral design, no rotation request, mass production. Material: Seal face: Carbon, SiC, TC; Secondary seal: NBR, Viton, EPDM, Kalrez; NBR, Viton, EPDM, Kalrez, Graphite Metal parts: 304, 316, C-276, dual-phase steel, Ti. Carp 42, AM350, C-276, Alloy 718
