Agitators

We are offering agitators.

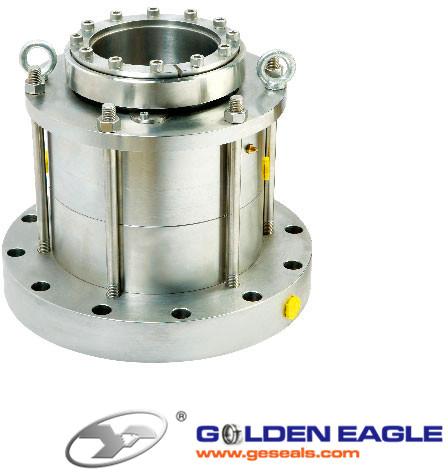

G70ag70az
design features:
single, balanced cartridge seal,
anti-negative pressure design,
“z” is with sleeve .
Operating limits:
temperature:-20~220℃;
speed: 5ms,
pressure: 13 bar;
standard: din28138
stainless steel and ceramic is the two main material for agitator seal. According to different working conditions, there’re single, double, sleeve, and no-sleeve design, etc. Special design can reduce the limits of diameter, pressure, speed, temperature, axial displacement, etc.
Material:
seal face: carbon, sic, tc;
secondary seal: fep, viton, epdm, kalrez ,
metal parts: 304, 316, c-276, dual-phase steel, ti,
bellow: 316, am350, c-276, alloy718, ti
