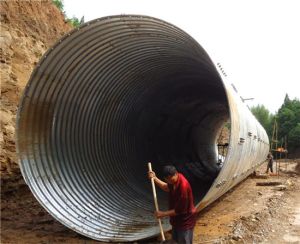

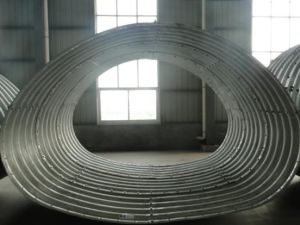

We offer special type corrugated steel pipe in different shapes can meet customers�� requirements our company can supply corrugated steel pipe available in different shapes. They refer to non-standard circular corrugated steel culvert pipe that buried under the road, railway and it is made by corrugated metal coils or corrugated steel pipe assembled of corrugated plate. The shapes can be oval, dustpan, horseshoe shape. They are widely used in highway, railway culverts, channels, bridges, temporary pavement, drainage channels and a variety of mine roadway retaining wall supporting projects. material of plate: ss400 or q235 hot rolled steel plate thickness of the plate: 2.0-7.0mm it can be divided into integral type and assembled type according to the assemble form. According to the sectional shape of channel it is available in round, oval, arched, horseshoe shape, dustpan-shaped and pear shaped. By the form of import and export: orthogonal, oblique, straight, oblique mouth filling height: 1.5-60m diameter of span: 0.5-12m section of pipe connection form is divided into: inner flange connection, flange joints, plate lap, and clamp connection. Waveform parameters (wave pitch*wave depth): 150*25, 200*55, 150*50, 150*65, 300*110, and 400*180. Anti-corrosion treatment: hot dip galvanizing antiseptic treatment of �� 63 ��m, secondary corrosion is generally added asphalt coating years of use are for more than 100 years. the selection process according to the diameter, height of filling culvert to select the waveform parameters. According to the filling height, special anti-corrosion requirements to choose steel plate thickness. According to the conditions of transport, installation environment to choose assembled form. application of arched corrugated steel pipe: highway and railway: bridge, culvert, channel tunnel, culvert tunnel overhaul, temporary pavement, infiltration wells. Municipal construction: common channel, optical cable protection, drainage ditch, tower crane, vertical pile shell. Coal mine: mineral transporting pipeline, and mining machinery, shaft passage. Civil: power plant smoke pass, warehouse grain reserves, fermentation tank, and wind power. Military: military sidewalk, air defense channel and evacuation routes. From home and abroad application situation, corrugated culvert pipe has a strong ability to adapt; has great advantages to replace the traditional method so the application prospect is very considerable.

We offer assembled corrugated steel pipe has a considerable application prospect for its unique advantages assembled corrugated steel pipe also called assembled metal pipe is assembled by curved corrugated board assembled that widely used in highway, railway culverts, channels, bridges, tunnels, temporary pavement, drainage channels and a variety of mine roadway retaining wall supporting projects. the unique advantages of assembled corrugated steel pipe: assembled corrugated metal pipe adopts the standard design, centralized production and the products are manufactured according to customers�� design requirements or drawing. It has strong adaptability to different use of the environment. At the same time the on-site installation of civil engineering and structural section can be separate implemented to reduce or simply abandon the conventional building materials therefore the construction period is shorter and it has far-reaching environmental protection sense. the stress of assembled corrugated steel pipe structure is reasonable, and the load distribution is equal. It has a certain capacity of deformation resistance, can solve the damage problems on bridge and culvert concrete structure of cold northern regions (frost) so there is no expansion joint on road surface. It improves the driving comfort degree, helps to improve the "fault" phenomenon at the junction of soft soil foundation and embankment structure, and improve driving safety. Corrugated pipe culvert engineering operation and maintenance cost is low. The real engineering cost is lower than the similar long-span bridges, culverts. corrugated metal pipe with its unique advantages, a strong ability to adapt, replacement of the traditional products has a very considerable application prospect. special specifications of assembled corrugated steel pipe type i.d. (m) length (mm) height (mm) thickness (mm) galv. (um) cspp a750 0.75 68 13 2.0~4.0 ��84 cspp a1000 1.0 68 13 2.0~4.0 ��84 cspp a1250 1.25 68 13 2.0~4.0 ��84 cspp a1500 1.5 68 13 2.0~4.0 ��84 cspp b750 0.75 75 25 2.0~4.5 ��84 cspp b1000 1.0 75 25 2.0~4.5 ��84 cspp b1250 1.25 75 25 2.0~4.5 ��84 cspp b1500 1.5 75 25 2.0~4.5 ��84 cspp b2000 2.0 75 25 2.0~4.5 ��84 cspp b2500 2.5 75 25 2.0~4.5 ��84 cspp b3000 3.0 75 25 2.0~4.5 ��84 cspp c750 0.75 125 25 2.0~5.0 ��84 cspp c1000 1.0 125 25 2.0~5.0 ��84 cspp c1250 1.25 125 25 2.0~5.0 ��84 cspp c1500 1.5 125 25 2.0~5.0 ��84 cspp c2000 2.0 125 25 2.0~5.0 ��84 cspp c2500 2.5 125 25 2.0~5.0 ��84 cspp c3000 3.0 125 25 2.0~5.0 ��84 cspp d1500 1.5 150 50 2.0~6.5 ��84 cspp d2000 2.0 150 50 2.0~6.5 ��84 cspp d2500 2.5 150 50 2.0~6.5 ��84 cspp d3000 3.0 150 50 2.0~6.5 ��84 cspp d3500 3.5 150 50 2.0~6.5 ��84 cspp d4000 4.0 150 50 2.0~6.5 ��84 cspp d4500 4.5 150 50 2.0~6.5 ��84 cspp d5000 5.0 150 50 2.0~6.5 ��84 cspp d5500 5.5 150 50 2.0~6.5 ��84 cspp d6000 6.0 150 50 2.0~6.5 ��84 cspp d6500 6.5 150 50 2.0~6.5 ��84 cspp d7000 7.0 150 50 2.0~6.5 ��84 cspp d7500 7.5 150 50 2.0~6.5 ��84 cspp d8000 8.0 150 50 2.0~6.5 ��84 cspp e1500 1.5 200 55 2.0~6.5 ��84 cspp e2000 2.0 200 55 3.0~6.5 ��84 cspp e2500 2.5 200 55 3.0~6.5 ��84 cspp e3000 3.0 200 55 3.0~6.5 ��84 cspp e3500 3.5 200 55 3.0~6.5 ��84 cspp e4000 4.0 200 55 3.0~6.5 ��84 cspp e4500 4.5 200 55 3.0~6.5 ��84 cspp e5000 5.0 200 55 3.0~6.5 ��84 cspp e5500 5.5 200 55 3.0~6.5 ��84 cspp e6000 6.0 200 55 3.0~6.5 ��84 cspp e6500 6.5 200 55 3.0~6.5 ��84 cspp e700 7.0 200 55 3.0~6.5 ��84 cspp e7500 7.5 200 55 3.0~6.5 ��84 cspp e8000 8.0 200 55 3.0~6.5 ��84 note: i.d. Is the inner diameter of the pipe; length is the wave length; height is the wave height; thickness is the wall thickness; galv. Is the thickness of the galvanized layer.

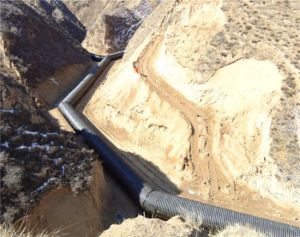

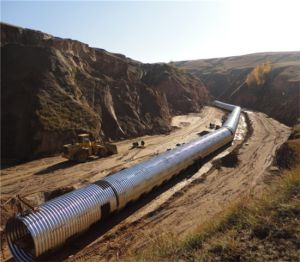

We offer anticorrosive corrugated steel pipe is the best choice for harsh environment we can offer anticorrosive corrugated steel pipe that used in harsh environment because of its superior corrosive resistance. Our anticorrosive corrugated steel pipe can be divided into galvanized pipe, aluminized type 2 coating, polymer-laminated coated and asphalt coated corrugated steel pipe. galvanized or zinc-coated steel is the standard finish of all corrugated steel pipe and it performs well in low-abrasion conditions. The galvanized corrugated steel pipe can be serviced for 25 years without damage. aluminized type 2 coating can offer much more corrosion resistance than galvanized products. It has the characteristics of aluminum of high strength and low cost. The service life can be up to 75 years. polymer-laminated coating is the ideal choice for the most aggressive environments. It is a tough, heavy-gauge film that is laminated to both sides of galvanized steel to produce a corrosion and abrasion barrier. Polymer laminate corrugated steel pipe can stand up to high concentrations of acids and alkalis. The service life can be more than 100 years. asphalt coating is often coated after fabrication or after installation. It is used to reinforce the pipe in the sites where the three coatings available (galvanized, alt2 and polymer) on steel delivered to pipe fabrication facilities may not be the best match for the site conditions.

We offer integral corrugated steel pipe is the optimum combination of strength, flexibility and performance our company is a professional manufacture of corrugated steel pipe. in the following we intend to give customers the detailed description of integral corrugated steel pipe. integral corrugated steel pipe is made of a whole corrugated steel plate without a joint. it��s high strength, light weight, low cost with a long service life. compared to assembled corrugated steel pipe it��s more convenient to install and there is no leakage. the construction period is shorter. of course there are some shortcomings. integral corrugated steel pipe is not easy to transfer than assembled steel pipe. the diameter and length are limited, whole round pipe ��0.3m-��2.5m, while assembled round pipe ��3m-��6m, and the pipe wall thickness is 2.0mm to 8.0mm. integral corrugated steel pipe is applied to culverts, infiltration wells of highways, railways and waterways, temporary bridge load-bearing structure, underground pipeline, reconstruction and reinforcement of bridge and culvert. technical advantages: high strength: the strength of corrugated steel pipe is 1.5-3 times of cement pipe and it has a long service life. light weight: corrugated steel pipe is 1/15-1/5 of the same specification of cement pipe. convenient construction: in the site there is no need to use high-duty machinery; it��s fast and easy to construct. axial direction: corrugated steel pipe is applied to the settlement of more serious occasions. corrugated steel pipe can improve the phenomenon of dislocation that happens in the land-based structures and embankment, so as to improve the degree of comfort. environment production and low carbon: reduce or abandon the use of cement, sand, gravel, wood, it is conducive to environmental production and reduced the carbon emissions. convenient maintenance: in a considerable part of environment corrugated steel pipe even can without maintenance. it is significant to reduce post-operational costs.

We are offering spiral rib pipe. Spiral rib pipe can solve your storm water problems with the improved hydraulics spiral rib pipe is our innovative flexible metal pipe that combines the proven strength of corrugated metal pipe with the flow capacity of a smooth inner wall. That is to say the product has two layers: the first layer is a smooth interior corrugated steel pipe and the second layer is a smooth steel liner providing for improved hydraulics. It is also called smooth wall spiral rib pipe or double wall corrugated steel pipe. It is economical and easy to install. It combines the advantages of many piping varieties into one revolutionary product. Spiral rib pipe is lightweight, easy to use and install, high strength, long-lasting and with superior performance therefore it is the perfect pipe that used for storm water sewer systems, culverts and drainage systems. Spiral rib pipe features and benefits revolutionary hydraulic design: spiral rib pipe has better hydraulics than the traditional metal pipe and manning��s n factor is 0.012 therefore it is allowed to be used interchangeably with concrete pipe and plastic pipe without affecting flow capacity. Strength and durability: spiral rib pipe is stiffer than hdpe pipe so it is less inclined to deflect and fracture. It maintains the project grade longer than concrete pipe due to the positive joint connection and long pipe lengths. Various metals and coatings are available depending on site conditions. Customers can match the metal and coatings with the site conditions to achieve the best engineering design service life and economic efficiency. Cost savings on installation: steel spiral rib is only weighs only 10% as much as concrete pipe while the aluminum spiral rib weighs only 3% as much. With the weight reduction it is easy to install and can save a lot of money on labor costs. Versatility: spiral rib can be fabricated in virtually any length or diameter. Our company can supply non-standard pipe size to meet your projects. Applications can be used for pipes and culverts drainage systems storm water systems to suit the applications in construction, our spiral rib pipe comes in different diameters and lengths of six meters or longer. The thicknesses range from 1.6mm to 2.8mm. The material can be galvanized or aluminized type 2 steel and is about 1/12th the weight of concrete pipe. O.d. (mm) i.d. (mm) ring stiffness rank sn8 sn10 sn12.5 ��8kn/m2 ��10kn/m2 ��12.5kn/m2 external diameter (mm) external diameter (mm) external diameter (mm) 200 200 224 224 300 300 325 325 400 400 438 438 500 500 539 539 600 600 644 644 644 700 700 745 745 745 800 800 852 852 852 900 900 963 963 963 1000 1000 1063 1063 1063 1100 1100 1173 1173 1173 1200 1200 1273 1273 1273 1300 1300 1385 1385 1385 1400 1400 1485 1485 1485 1500 1500 1585 1585 1585 1600 1600 1693 1693 1693 1700 1700 1793 1793 1793 1800 1800 1893 1893 1903 2000 2000 2105 2105 2121 2200 2200 2307 2307 2323 2400 2400 2527 2527 2533 2500 2500 2629 2629 2635 2600 2600 2729 2729 2743 2700 2700 2848 2848 2858 2800 2800 2958 2958 2973
