Nestable Corrugated Steel Pipe

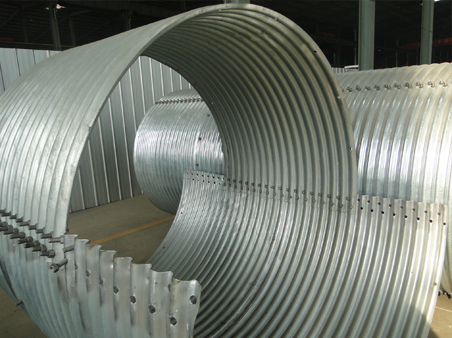

Nestable corrugated pipe is composed of two semicircle sections that are bolted together to form a round corrugated steel pipe. Compared with integral corrugated pipes, this one has nestable structure, which means they can be nested into bundles for easier handling and transportation. Therefore, they are generally applied to remote projects or sites with bad construction condition.
There are two types of nestable corrugated pipe, one is Flange type, another is Riveting type.
Flange type nestable corrugated pipe features protruding flange plates with pre-drilled holes for bolting two sections together using galvanized 10mm bolts and nuts. However, riveting type pipe don’t have flanges but have pre-drilled holes at both ends of each semicircular section for easy assembly. This design results in cost saving, especially labor saving. Both these two types of nestable corrugated pipes are galvanized for high durability and corrosion resistant under normal conditions.
Details:
Material: High quality steel such as Q235a, Q253b, S400, etc.
Structure: Semicircular structure – flange type and riveting type.
Pipe thickness: 1.6mm to 7.0mm.
Pipe diameter: 0.6m to 2.5m.
Pipe length: 610mm or other custom length.
Flange width: 50mm.
Wave size:
2-23″ × 12″ (68mm × 13mm);
3″ × 1″ (75mm × 25mm);
5″ × 1″ (125mm × 25mm);
6″ × 2″ (150mm × 50mm);
8″ × 2-16″ (200mm × 55mm).
Anti-corrosion treatment: Hot dipped galvanized (600gm2), asphalt or polymer coated upon request.
Height of back-fill cover: 0.5m to 37m.
