Hangzhou Pass Fluid Equipment Co.,Ltd

• MOQ 50 Set(s)
• blueas your requirement

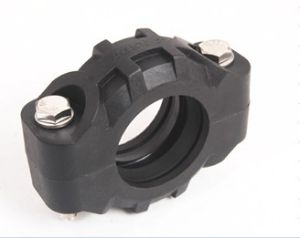

We are offering model ny-300 plastic flexible coupling. sizes-inches/dn 1 inch to 8 inch (dn25 to dn200) maximum working pressure: 300psi(21bar) model ny-300 material specifications housings: nylon rubber gaskets: the gasket seals is c-shaped, made of standard gasket epdm(ethylene propylene diene monomer) for cold water, hot water, rare acid, oil-free air and multiple chemical product (-50~150 degree). It is not suitable for medium like petroleum bolts & nuts: round-head, elliptoid-neck, carriage bolts, type carbon iron covered with zinc or dacromet. nominal pipe max. Working pipe end dimensions size od pressures separation a b c weight mm mm psi mm mm mm mm kgs in in bar in in in in lbs 25 33.40 300 0-1.6 61 95 44 0.26 1 1.315 20.67 0-0.06 2.402 3.74 1.732 0.57 32 42.20 300 0-1.6 73 130 44 0.28 1.25 1.660 20.67 0-0.06 2.874 5.118 1.732 0.62 40 48.30 300 0-1.6 79 121 44 0.35 1.5 1.900 20.67 0-0.06 3.11 4.764 1.732 0.77 50 60.30 300 0-1.6 91 135 45 0.43 2 2.375 20.67 0-0.06 3.583 5.315 1.772 0.95 65 73.00 150 0-1.6 104 145 45 0.55 2.5 2.875 10.33 0-0.06 4.094 5.709 1.772 1.21 65 76.10 150 0-1.6 108 148 45 0.58 　 3.000 10.33 0-0.06 4.252 5.827 1.772 1.28 80 88.90 150 0-1.6 125 166 45 0.65 3 3.500 10.33 0-0.06 4.921 6.535 1.772 1.43 100 114.30 100 0-3.2 157.4 207 52 0.98 4 4.500 6.89 0-0.13 6.197 8.15 2.047 2.16 125 141.30 100 0-3.2 192 248 52 5.52 5 5.563 6.89 0-0.13 7.559 9.764 2.047 12.14 150 168.30 100 0-3.2 227 282 52 6.2 6 6.625 6.89 0-0.13 8.937 11.102 2.047 13.64 200 219.10 100 0-3.2 281 244 64 10.5 8 8.625 6.89 0-0.13 11.063 9.606 2.52 23.1

• MOQ 50 Set(s)
• blueas the requirement

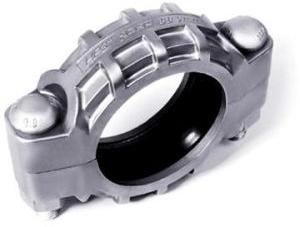

Sizes-Inches/DN 3/4 inch to 12 inch(DN20 to DN300) Maximum working pressure: 1200psi(83bar) Sch 40S, cut groove only MODEL SS-1200 MATERIAL SPECIFICATIONS Housings: Super duplex 2507(CE3MN)to ASTM A890 Grade5A Duplex 2205(CD3MN)to ASTM A890 Grade4A Austenic 254SMO(CK3MCuN) to A743 Type 316 to ASTM A743 CF8M Type 316L to ASTM A743 CF3M Rubber Gaskets: The gasket seals is C-shaped, made of standard gasket EPDM(ethylene propylene diene monomer) for cold water, hot water, rare acid, oil-free air and multiple chemical product (-50~150 degree). It is not suitable for medium like petroleum Bolts & Nuts: Round-head, elliptoid-neck, carriage bolts, type316 stainless steel bolts and heavy duty nuts comform to ASTM F-593 Nominal Pipe Max. Working Pipe End Dimensions Size OD Pressures Separation A B C Weight mm mm psi mm mm mm mm kgs in in bar in in in in lbs 20 26.70 1200 0-1.6 53 86 44 0.58 0.75 1.050 82.68 0-0.06 2.087 3.386 1.732 1.28 25 32.00 1200 0-1.6 59 91 44 0.67 　 1.260 82.68 0-0.06 2.323 3.583 1.732 1.47 25 33.40 1200 0-1.6 60 93 44 0.67 1 1.315 82.68 0-0.06 2.362 3.661 1.732 1.47 32 38.00 1200 0-1.6 70 100 44 0.76 　 1.496 82.68 0-0.06 2.756 3.937 1.732 1.67 32 42.20 1200 0-1.6 72 102 44 0.76 1.25 1.660 82.68 0-0.06 2.835 4.016 1.732 1.67 40 48.30 1200 0-1.6 79 121 44 1.16 1.5 1.900 82.68 0-0.06 3.11 4.764 1.732 2.55 50 57.00 1200 0-1.6 89 33 45 1.33 　 2.244 82.68 0-0.06 3.504 1.299 1.772 2.93 50 60.30 1200 0-1.6 91 35 45 1.33 2 2.375 82.68 0-0.06 3.583 5.315 1.772 2.93 65 73.00 1200 0-1.6 104 145 45 1.53 2.5 2.875 82.68 0-0.06 4.094 5.709 1.772 3.366 65 76.10 1200 0-1.6 108 152 45 1.62 　 3.000 82.68 0-0.06 4.272 5.984 1.772 3.56 80 88.90 1200 0-1.6 125 166 45 2 3 3.500 82.68 0-0.06 4.921 6.535 1.772 4.4 100 108.00 1200 0-3.2 154 197 52 3.33 　 4.2501 82.68 0-0.13 6.063 7.756 2.047 7.33 100 114.30 1200 0-3.2 157.4 207 52 3.35 4 4.500 82.68 0-0.13 6.197 8.15 2.047 7.37 125 133.00 1200 0-3.2 178 231 52 4.19 　 5.250 82.68 0-0.13 7.008 9.094 2.047 9.22 125 141.30 1200 0-3.2 192 248 52 5.25 5 5.563 82.68 0-0.13 7.559 9.764 2.047 11.55 150 159.00 1200 0-3.2 216 256 52 6.48 　 6.259 82.68 0-0.13 8.504 10.433 2.047 14.26 150 168.30 1200 0-3.2 227 282 52 7.5 6 6.625 82.68 0-0.13 8.937 11.102 2.047 16.5 200 219.10 1200 0-3.2 281 244 64 11.26 8 8.625 82.68 0-0.13 11.063 9.606 2.52 24.77 250 273 800 0-3.2 342 400 65 16.2 10 10.75 55.12 0-0.13 13.456 15.748 2.559 35.64 300 323.9 800 0-3.2 397 478 65 18 12 12.75 55.12 0-0.13 15.63 18.819 2.559 39.6

• MOQ 50 Set(s)
• blueas the requirement

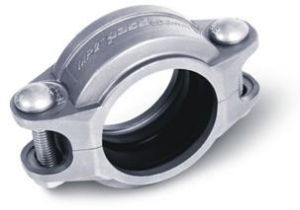

We are offering ss-600 stainless steel medium pressure flexible coupling. sizes-inches/dn 3/4 inch to 8 inch(dn20 to dn200) maximum working pressure: 600psi(42bar) sch 40s, cut groove only model ss-350 material specifications housings: type 304 stainless steel to astm a351 cf8 or a743 gr. Cf8 �type 316 to astm a743 cf8m �type 316l to astm a743 cf3m rubber gaskets: the gasket seals is c-shaped, made of standard gasket epdm(ethylene propylene diene monomer) for cold water, hot water, rare acid, oil-free air and multiple chemical product (-50~150 degree). It is not suitable for medium like petroleum bolts & nuts: round-head, elliptoid-neck, carriage bolts, type carbon iron covered with dacromet. Ï¿½type 304 stainless steel bolts and heavy duty nuts confirm to astm f-593 �type 316 stainless steel bolts and heavy duty nuts confirm to astm f-593 nominal pipe max. Working pipe end dimensions size od pressures separation a b c weight mm mm psi mm mm mm mm kgs in in bar in in in in lbs 20 26.70 600 0-1.6 48 85 42 0.42 0.75 1.050 41.34 0-0.06 1.890 3.346 1.654 0.92 25 32.00 600 0-1.6 52 92 42 0.5 　 1.260 41.34 0-0.06 2.047 3.622 1.654 1.1 25 33.40 600 0-1.6 54 94 42 0.5 1 1.315 41.34 0-0.06 2.126 3.701 1.654 1.1 32 38.00 600 0-1.6 61 101 44 0.54 　 1.496 41.34 0-0.06 2.401 3.976 1.732 1.19 32 42.20 600 0-1.6 63 103 44 0.54 1.25 1.660 41.34 0-0.06 2.48 4.055 1.732 1.19 40 48.30 600 0-1.6 70 112 44 0.58 1.5 1.900 41.34 0-0.06 2.756 4.409 1.732 1.28 50 57.00 600 0-1.6 80 121 44 0.67 　 2.244 41.34 0-0.06 3.149 4.764 1.732 1.48 50 60.30 600 0-1.6 82 124 44 0.67 2 2.375 41.34 0-0.06 3.228 4.882 1.732 1.48 65 73.00 600 0-1.6 96 148 44 0.91 2.5 2.875 41.34 0-0.06 3.78 5.827 1.732 3.41 65 76.10 600 0-1.6 100 152 44 0.83 　 3.000 41.34 0-0.06 3.937 5.984 1.732 1.82 80 88.90 600 0-1.6 113 166 44 1.1 3 3.500 41.34 0-0.06 4.449 6.535 1.732 2.42 100 108.00 600 0-3.2 134 187 48 1.4 　 4.2501 41.34 0-0.13 5.276 7.362 1.89 3.08 100 114.30 600 0-3.2 140 193 48 1.55 4 4.500 41.34 0-0.13 5.512 7.598 1.89 3.41 125 133.00 600 0-3.2 160 215 50 2.9 　 5.250 41.34 0-0.13 6.299 8.465 1.969 6.38 125 141.30 600 0-3.2 167 222 50 2.9 5 5.563 41.34 0-0.13 6.575 8.74 1.969 6.38 150 159.00 600 0-3.2 186 242 56 3.1 　 6.259 41.34 0-0.13 7.323 9.528 2.205 6.82 150 168.30 600 0-3.2 196 252 56 3.1 6 6.625 41.34 0-0.13 7.717 9.921 2.205 6.82 200 219.10 450 0-3.2 255 319 60 6.5 8 8.625 31.01 0-0.13 10.039 12.559 2.362 14.3

• MOQ 50 Set(s)
• blueas the requirement

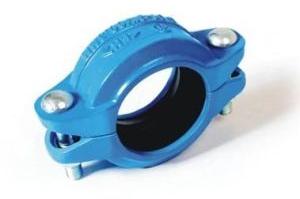

Sizes-Inches/DN 3/4 inch to 12 inch (DN20 to DN300) Maximum working pressure: 600psi(42bar) cut groove only MODEL DI-600 MATERIAL SPECIFICATIONS Housings: Ductile Iron to ASTM A536 Surface Finish: Antirust paint red or blue �Hot dip zinc galvanized �Epoxy power �Dacromet �Trflow �PTFE �RilsanPA11 Rubber Gaskets: The gasket seals is C-shaped, made of standard gasket EPDM(ethylene propylene diene monomer) for cold water, hot water, rare acid, oil-free air and multiple chemical product (-50~150 degree). It is not suitable for medium like petroleum Bolts & Nuts: Round-head, elliptoid-neck, carriage bolts, type carbon iron covered with zinc or dacromet. Nominal Pipe Max. Working Pipe End Dimensions Size OD Pressures Separation A B C Weight mm mm psi mm mm mm mm kgs in in bar in in in in lbs 20 26.70 600 0-1.6 53 99 43 0.52 0.75 1.050 41.34 0-0.06 2.087 3.898 1.693 1.14 25 32.00 600 0-1.6 59 105 45 0.58 　 1.260 41.34 0-0.06 2.323 4.134 1.772 1.28 25 33.40 600 0-1.6 61 108 45 0.6 1 1.315 41.34 0-0.06 2.402 4.252 1.732 1.32 32 38.00 600 0-1.6 65 114 45 0.6 　 1.496 41.34 0-0.06 2.559 4.488 1.772 1.32 32 42.20 600 0-1.6 68 117 45 0.6 1.25 1.660 41.34 0-0.06 2.677 4.606 1.772 1.32 40 48.30 600 0-1.6 74 122 45 0.6 1.5 1.900 41.34 0-0.06 2.913 4.803 1.772 1.32 50 57.00 600 0-1.6 85 130 48 0.78 　 2.244 41.34 0-0.06 3.346 5.118 1.89 1.72 50 60.30 600 0-1.6 87 133 48 0.8 2 2.375 41.34 0-0.06 3.425 5.236 1.89 1.76 65 73.00 600 0-1.6 98 144 48 0.9 2.5 2.875 41.34 0-0.06 3.858 5.669 1.89 3.41 65 76.10 600 0-1.6 102 150 48 0.9 　 3.000 41.34 0-0.06 4.01 6.906 1.89 1.98 80 88.90 600 0-1.6 114 178 48 1.3 3 3.500 41.34 0-0.06 4.488 7.008 1.89 2.86 100 108.00 600 0-3.2 141 198 54 1.7 　 4.2501 41.34 0-0.13 5.551 7.795 2.126 3.74 100 114.30 600 0-3.2 147 204 54 1.9 4 4.500 41.34 0-0.13 5.787 8.031 2.126 4.18 125 133.00 450 0-3.2 166 238 54 2.7 　 5.250 31.01 0-0.13 6.535 9.37 2.126 5.94 125 141.30 450 0-3.2 175 256 54 2.6 5 5.563 31.01 0-0.13 6.89 10.079 2.126 5.72 150 159.00 450 0-3.2 194 266 54 3.1 　 6.259 31.01 0-0.13 7.638 10.472 2.126 6.82 150 168.30 450 0-3.2 203 281 58 3.2 6 6.625 31.01 0-0.13 7.992 11.063 2.283 7.04 200 219.10 450 0-3.2 263 355 59 5.6 8 8.625 31.01 0-0.13 10.354 13.976 2.323 12.32 250 273 350 0-3.2 343 440 67 13.2 10 10.75 24.12 0-0.13 13.504 17.323 2.638 29.04 300 323.9 350 0-3.2 394 486 65 13.9 12 12.75 24.12 0-0.13 15.512 19.134 2.559 30.58

• MOQ 50 Set(s)
• blueas the requirement

We are offering ss-350 stainless steel low pressure flexible coupling. Sizes-Inches/DN 3/4 inch to 8 inch(DN20 to DN200) Maximum working pressure: 350psi(25bar) Sch 40S, cut groove only MODEL SS-350 MATERIAL SPECIFICATIONS Housings: Type 304 Stainless steel to ASTM A351 CF8 or A743 Gr. CF8 �Type 316 to ASTM A743 CF8M �Type 316L to ASTM A743 CF3M Rubber Gaskets: The gasket seals is C-shaped, made of standard gasket EPDM(ethylene propylene diene monomer) for cold water, hot water, rare acid, oil-free air and multiple chemical product (-50~150 degree). It is not suitable for medium like petroleum Bolts & Nuts: Round-head, elliptoid-neck, carriage bolts, type carbon iron covered with dacromet. �Type 304 stainless steel bolts and heavy duty nuts confirm to ASTM F-593 �Type 316 stainless steel bolts and heavy duty nuts confirm to ASTM F-593 Nominal Pipe Max. Working Pipe End Dimensions Size OD Pressures Separation A B C Weight mm mm psi mm mm mm mm kgs in in bar in in in in lbs 20 26.70 300 0-1.6 47 84 41 0.33 0.75 1.050 20.67 0-0.06 1.850 3.307 1.614 0.73 25 32.00 300 0-1.6 50 89 41 0.36 　 1.260 20.67 0-0.06 2 3.504 1.614 0.79 25 33.40 300 0-1.6 52 90 41 0.36 1 1.315 20.67 0-0.06 2.047 3.543 1.614 0.79 32 38.00 300 0-1.6 59 97 42 0.4 　 1.496 20.67 0-0.06 2.323 3.819 1.654 0.88 32 42.20 300 0-1.6 61 99.7 42 0.4 1.25 1.660 20.67 0-0.06 2.402 3.925 1.654 0.88 40 48.30 300 0-1.6 67 106.3 42 0.42 1.5 1.900 20.67 0-0.06 2.638 4.185 1.654 0.92 50 57.00 300 0-1.6 79 118 42 0.5 　 2.244 20.67 0-0.06 3.11 4.646 1.654 1.1 50 60.30 300 0-1.6 81 121 42 0.5 2 2.375 20.67 0-0.06 3.189 4.764 1.654 1.1 65 73.00 300 0-1.6 96 143.1 43 0.74 2.5 2.875 20.67 0-0.06 3.79 5.634 1.693 1.63 65 76.10 300 0-1.6 98 147.3 43 0.78 　 3.000 20.67 0-0.06 3.858 5.799 1.693 1.72 80 88.90 300 0-1.6 111 160.9 43 0.83 3 3.500 20.67 0-0.06 4.37 6.335 1.693 1.89 100 108.00 300 0-3.2 132 183.3 47 1.41 　 4.2501 20.67 0-0.13 5.197 7.217 1.85 3.1 100 114.30 300 0-3.2 138 189.5 47 1.4 4 4.500 20.67 0-0.13 5.433 7.461 1.85 3.08 125 133.00 300 0-3.2 157.4 209.1 49 1.32 　 5.250 20.67 0-0.13 6.197 8.232 1.929 2.91 125 141.30 300 0-3.2 164.4 216.3 49 2.1 5 5.563 20.67 0-0.13 6.472 8.516 1.929 4.62 150 159.00 300 0-3.2 184.2 236 55 2.36 　 6.259 20.67 0-0.13 7.252 9.291 2.165 5.19 150 168.30 300 0-3.2 194.2 246.2 55 2.6 6 6.625 20.67 0-0.13 7.646 9.693 2.165 5.72 200 219.10 300 0-3.2 251 310 60 4.8 8 8.625 20.67 0-0.13 9.882 12.205 2.362 10.56

• MOQ 50 Set(s)
• blueas the requirement

Sizes-Inches/DN 3/4 inch to 12 inch (DN20 to DN300) Maximum working pressure: 1000psi(69bar)cut groove only MODEL DI-1000 MATERIAL SPECIFICATIONS Housings: Ductile Iron to ASTM A536 Surface Finish: Antirust paint red or blue �Hot dip zinc galvanized �Epoxy power �Dacromet �Trflow �PTFE �RilsanPA11 Rubber Gaskets: The gasket seals is C-shaped, made of standard gasket EPDM(ethylene propylene diene monomer) for cold water, hot water, rare acid, oil-free air and multiple chemical product (-50~150 degree). It is not suitable for medium like petroleum Bolts & Nuts: Round-head, elliptoid-neck, carriage bolts, type carbon iron covered with zinc or dacromet. Nominal Pipe Max. Working Pipe End Dimensions Size OD Pressures Separation A B C Weight mm mm psi mm mm mm mm kgs in in bar in in in in lbs 20 26.70 1000 0-1.6 54 102 44 0.5 0.75 1.050 68.9 0-0.06 2.126 4.016 1.732 1.1 25 32.00 1000 0-1.6 59 103 44 0.5 　 1.260 68.9 0-0.06 2.323 4.055 1.732 1.1 25 33.40 1000 0-1.6 61 105 44 0.5 1 1.315 68.9 0-0.06 2.402 4.134 1.732 1.1 32 38.00 1000 0-1.6 65 124 48 0.9 　 1.496 68.9 0-0.06 2.559 4.882 1.89 1.98 32 42.20 1000 0-1.6 67 127 48 0.9 1.25 1.660 68.9 0-0.06 2.638 5 1.89 1.98 40 48.30 1000 0-1.6 79 137 48 1 1.5 1.900 68.9 0-0.06 3.11 5.394 1.89 2.2 50 57.00 1000 0-1.6 89 146 48 1.2 　 2.244 68.9 0-0.06 3.504 5.748 1.89 2.64 50 60.30 1000 0-1.6 92 149 48 1.2 2 2.375 68.9 0-0.06 3.622 5.866 1.89 2.64 65 73.00 1000 0-1.6 108 165 48 1.4 2.5 2.875 68.9 0-0.06 4.252 6.496 1.89 3.41 65 76.10 1000 0-1.6 111 168 48 1.5 　 3.000 68.9 0-0.06 4.37 6.614 1.89 3.3 80 88.90 1000 0-1.6 127 181 48 1.7 3 3.500 68.9 0-0.06 5 7.126 1.89 3.74 100 108.00 1000 0-3.2 152 219 54 5 　 4.2501 68.9 0-0.13 5.984 8.622 2.126 11 100 114.30 1000 0-3.2 156 226 54 3 4 4.500 68.9 0-0.13 6.142 8.898 2.126 6.6 125 133.00 1000 0-3.2 194 264 54 4.5 　 5.250 68.9 0-0.13 7.638 10.394 2.126 9.9 125 141.30 1000 0-3.2 197 270 54 4.8 5 5.563 68.9 0-0.13 7.756 10.63 2.126 10.56 150 159.00 1000 0-3.2 216 265 52 6 　 6.259 68.9 0-0.13 8.504 10.433 2.047 13.2 150 168.30 1000 0-3.2 219 302 54 5.4 6 6.625 68.9 0-0.13 8.622 11.89 2.126 11.88 200 219.10 800 0-3.2 279 375 63 9.4 8 8.625 55.12 0-0.13 10.984 14.764 2.48 20.68 250 273 800 0-3.2 346 435 67 14.1 10 10.75 55.12 0-0.13 13.622 17.126 2.638 31.02 300 323.9 800 0-3.2 397 489 67 12.6 12 12.75 55.12 0-0.13 15.63 19.252 2.638 27.72
