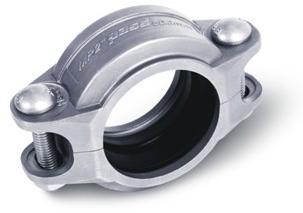

SS-600 Stainless Steel Medium Pressure Flexible Coupling

We are offering ss-600 stainless steel medium pressure flexible coupling.
sizes-inches/dn
3/4 inch to 8 inch(dn20 to dn200)
maximum working pressure:
600psi(42bar) sch 40s,cut groove only
model ss-350 material specifications
housings:
type 304 stainless steel to astm a351 cf8 or a743 gr. Cf8
�type 316 to astm a743 cf8m
�type 316l to astm a743 cf3m
rubber gaskets:
the gasket seals is c-shaped, made of standard gasket epdm(ethylene propylene diene monomer) for cold water, hot water, rare acid, oil-free air and multiple chemical product (-50~150 degree). It is not suitable for medium like petroleum
bolts & nuts:
round-head,elliptoid-neck,carriage bolts,type carbon iron covered with dacromet.
Ï¿½type 304 stainless steel bolts and heavy duty nuts confirm to astm f-593
�type 316 stainless steel bolts and heavy duty nuts confirm to astm f-593
nominal pipe max. Working pipe end dimensions
size od pressures separation a b c weight
mm mm psi mm mm mm mm kgs
in in bar in in in in lbs
20 26.70 600 0-1.6 48 85 42 0.42
0.75 1.050 41.34 0-0.06 1.890 3.346 1.654 0.92
25 32.00 600 0-1.6 52 92 42 0.5
　 1.260 41.34 0-0.06 2.047 3.622 1.654 1.1
25 33.40 600 0-1.6 54 94 42 0.5
1 1.315 41.34 0-0.06 2.126 3.701 1.654 1.1
32 38.00 600 0-1.6 61 101 44 0.54
　 1.496 41.34 0-0.06 2.401 3.976 1.732 1.19
32 42.20 600 0-1.6 63 103 44 0.54
1.25 1.660 41.34 0-0.06 2.48 4.055 1.732 1.19
40 48.30 600 0-1.6 70 112 44 0.58
1.5 1.900 41.34 0-0.06 2.756 4.409 1.732 1.28
50 57.00 600 0-1.6 80 121 44 0.67
　 2.244 41.34 0-0.06 3.149 4.764 1.732 1.48
50 60.30 600 0-1.6 82 124 44 0.67
2 2.375 41.34 0-0.06 3.228 4.882 1.732 1.48
65 73.00 600 0-1.6 96 148 44 0.91
2.5 2.875 41.34 0-0.06 3.78 5.827 1.732 3.41
65 76.10 600 0-1.6 100 152 44 0.83
　 3.000 41.34 0-0.06 3.937 5.984 1.732 1.82
80 88.90 600 0-1.6 113 166 44 1.1
3 3.500 41.34 0-0.06 4.449 6.535 1.732 2.42
100 108.00 600 0-3.2 134 187 48 1.4
　 4.2501 41.34 0-0.13 5.276 7.362 1.89 3.08
100 114.30 600 0-3.2 140 193 48 1.55
4 4.500 41.34 0-0.13 5.512 7.598 1.89 3.41
125 133.00 600 0-3.2 160 215 50 2.9
　 5.250 41.34 0-0.13 6.299 8.465 1.969 6.38
125 141.30 600 0-3.2 167 222 50 2.9
5 5.563 41.34 0-0.13 6.575 8.74 1.969 6.38
150 159.00 600 0-3.2 186 242 56 3.1
　 6.259 41.34 0-0.13 7.323 9.528 2.205 6.82
150 168.30 600 0-3.2 196 252 56 3.1
6 6.625 41.34 0-0.13 7.717 9.921 2.205 6.82
200 219.10 450 0-3.2 255 319 60 6.5
8 8.625 31.01 0-0.13 10.039 12.559 2.362 14.3
