Hebei Kaixiang Electrical Technology Co. Ltd.

Hebei, China

• 1490mmx1820mmx1649mm 4.47m3

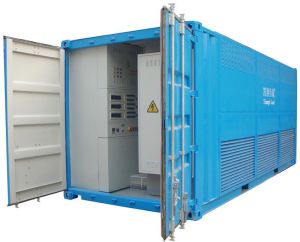

We are offering generator intelligent testing system. Generator intelligent testing system can test the output power and load ability of all kinds of generator precisely, mainly on the test to all parameters for generator set including the dynamic parameter, is composed of monitor&control and the load bank, working with the software, realizes the intellectualization, completes special testing to all parameters of generator automatically, generates the graph, curve and testing report stimultaneously, intelligent operation(intelligent control, automatic/mannal for choice), providing scientific testing method for high-power generator. main feature and function 1. It can test stable state three-phase voltage, current, active power, reactive power, apparent power, power factor, frequency, run duration of generating set and so on. 2. It has harmonic analysis function and power energy accumulation function. It can analyze voltage, 2-50 times harmonic capacity of current, total harmonic capacity. 3. It has setting test, fluctuating test, transient test (load increase quick, load decrease quick), and can test automatic max voltage, min. Voltage, max current, min. Current, max frequency, min. Frequency and restoring time. 4. It is of powerful voltage oscillograph and photoelectricity isolate and rs485/rs232 com communication. 5. Not only it can display all stable state parameter, but also the load increase quickly, load decrease quickly, voltage, current, frequency curve, voltage curve, current harmonic curve and harmonic content. 6. Cooperating with software, it can achieve automatic testing all electricity parameter and form all kinds of chart, curve, and test report. The content of data is very abundant; the report form is of applicability. Data and report forms can be signed and changed format according to consumer's need. 7. It is of four group load control functions. Its each group can control 25% load and combine four load forms of 25%, 50%, 75% and 100% or set oneself according to users' need. 8. It is of load control function that can achieve the function of load increasing quickly and load decreasing quickly. 9. It is of loading inductive or capacitive load. (it is designed specially according consumers' need) 10. Control function not only can be controlled automatically by pc, but also manual operated with panel hand. 11. It is configured three ways sensor interface of environment temperature, humidity and atmospheric pressure and can achieve automatically the measure of environment temperature, humidity and atmospheric pressure, display and upload(consumer configures sensor by oneself). 12. We adopt power input mode of optimize subsection for it that can be set convenient and covered all power. (1kw_max 120kw, 0.5kva _50.5kva). 13. It achieves intelligent control that can test automatic all kinds of parameter include dynamic parameters. It can provide scientific test measures for high-power generating set. 14. Cooling measures: forced air cooling. 15. Operation measure: load subsection control (single-pole double throw switch, controlled by contactor) can meet any power combination in rating power.

• MOQ 1 Set(s)

We are offering marine high power dry type load bank.6mw marine dry load bank is mainly used to test ups power supply. The unit can test various loading capacity of ac power by simulating pure resistance, capacitance, and inductance loading. The rlc power input adopts optimized subsection style to meet various needs in loading characters and power factors. main features and functions * combinations of resistance, capacitance and inductance loading upon user's requirement. * three subsectional switch controls for power setting: respective stepwise triggers for resistance "r", capacitance "c" and inductance "l" to achieve various power (current) levels. * professional-used meter display: 0.5 grade multi-functional digital meter displays ac voltage, ac current, power, power factor, and voltage frequency. * instant plugs let the input connection easy and convenient to operate. * load unit has wheels with brakes on. * protection switch is appended to the input port to ensure safety. * overheat protection.

• 1490mmx1820mmx1649mm4.47m3

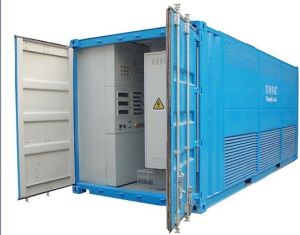

We are offering generator intelligent test system.generator intelligent testing system can test the output power and load ability of all kinds of generator precisely, mainly on the test to all parameters for generator set including the dynamic parameter, is composed of monitor&control and the load bank, working with the software, realizes the intellectualization, completes special testing to all parameters of generator automatically, generates the graph, curve and testing report stimultaneously, intelligent operation(intelligent control, automatic/mannal for choice), providing scientific testing method for high-power generator. main feature and function 1. It can test stable state three-phase voltage, current, active power, reactive power, apparent power, power factor, frequency, run duration of generating set and so on. 2. It has harmonic analysis function and power energy accumulation function. It can analyze voltage, 2-50 times harmonic capacity of current, total harmonic capacity. 3. It has setting test, fluctuating test, transient test (load increase quick, load decrease quick), and can test automatic max voltage, min. Voltage, max current, min. Current, max frequency, min. Frequency and restoring time. 4. It is of powerful voltage oscillograph and photoelectricity isolate and rs485/rs232 com communication. 5. Not only it can display all stable state parameter, but also the load increase quickly, load decrease quickly, voltage, current, frequency curve, voltage curve, current harmonic curve and harmonic content. 6. Cooperating with software, it can achieve automatic testing all electricity parameter and form all kinds of chart, curve, and test report. The content of data is very abundant; the report form is of applicability. Data and report forms can be signed and changed format according to consumer's need. 7. It is of four group load control functions. Its each group can control 25% load and combine four load forms of 25%, 50%, 75% and 100% or set oneself according to users' need. 8. It is of load control function that can achieve the function of load increasing quickly and load decreasing quickly. 9. It is of loading inductive or capacitive load. (it is designed specially according consumers' need) 10. Control function not only can be controlled automatically by pc, but also manual operated with panel hand. 11. It is configured three ways sensor interface of environment temperature, humidity and atmospheric pressure and can achieve automatically the measure of environment temperature, humidity and atmospheric pressure, display and upload(consumer configures sensor by oneself). 12. We adopt power input mode of optimize subsection for it that can be set convenient and covered all power. (1kw_max 120kw, 0.5kva _50.5kva). 13. It achieves intelligent control that can test automatic all kinds of parameter include dynamic parameters. It can provide scientific test measures for high-power generating set. 14. Cooling measures: forced air cooling. 15. Operation measure: load subsection control (single-pole double throw switch, controlled by contactor) can meet any power combination in rating power.

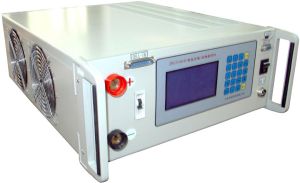

We are offering intelligent charge, discharge tester etc.products intelligent charge/ discharge tester click to enlarge image origin china model number znc/fj48-60 brand name triumph load intelligent charge/ discharge tester is a pioneer product leading in domestic china. Its multi-functional feature has five functions of charge, discharge, diagnoses, online monitoring and activation in one combine. The introduction of the tester has effectively reduced the corporations' costs and maintenance personnel' workingload, provides a complete scientific testing method for the maintenance of continuous battery and ups power supply. main functions l charge, discharge, diagnoses, online monitoring and activation, ''five in one'' 1. Scm control realizes constant current discharge. 2. Intelligent three-phases charge mode, even/floating charge, constant current/voltage automatic switch function. 3. Adjustable and controllable parameters: voltage, current, time, capacity. Automatic test and control for continuous battery parameters. 4. Real-time online monitoring: real-time online display, test, record cell/overall voltage with simultaneous data storage/pc transmission. 5. Repeated charge/discharge process realizes battery activation, thus extend the battery life. main features 1 lcd screen: chinese menu display for all test figures including discharge current, overall voltage, cell voltage, discharging time, discharge capacity and temperature, etc. 2 latest power-consuming components ensure safety, long-life and no red-hot. 3 data transmission from scm to flash disk resolve high-volume data storage. 4 rs232/rs485 interface for computer upload and background process, automatic diagram/report generation. 5 powerful data processing: easy operation, windows-based software for data processing, cell internal resistance and residual capacity analysis, curve displaying and report generating, provides scientific evidence for the analysis of battery performances. 6 portable smart design, suitable for high mobility users. technical parameters: model: zn48-60c/f cell voltage: 2v/6v/12v input voltage: dc 48v+-15% adjustable current range: 5-300a adjustable current variation: 1a constant current charge/discharge variation: 1% overall voltage variation: 1% cell voltage variation: +-10mv timer: 0 - 99hrs power supply: ac 220v/16a number of cells: 24 insulation intensity: input vs. Crust and output ≥ 1500v input vs. Crust ≥ 500v mttf: (mtbf): ≥ 50000h dimensions (mm): 426*172*448 weight: 18kg.

• MOQ 1 Set(s)
• 426mmx300mmx172mm0.022m3

We are offering automatic charger.the charger is mainly used in broadcasting, communication, electric power electron, scientific research, galvanization, water treatment, battery charge and so on. it has switching power supply electric circuit, with small volumelight weighthigh efficiencylong life. 1.intellectual charge with 3 phases automatically, widely used in battery daily maintanence. 2.digital meter display, keyboard set, simple operation, high intellectual, you can set voltage, current, capacity and so on. It can complete the test according to the setting various parameters of battery automatically. 3.automatic stop: it can stop charge/discharge/activation voluntarily when any one in following condition: time out, exceed capacity, undervoltage and overvoltage. 4.alarm and protection: when abnormal voltage happens, it can send warning to you . 5.the function of calibration: it mainly calibrates charge voltage and current. 6.it has a compact size, light weight. It can be carried very conveniently. technical parameters model cd48-60 automatic charger load voltage dc48v charge voltage 6~60v charge current range 6~60a charge current precision 1a constant current charge control precision 1% total voltage measurement precision 1% time 1-99h59m power supply ac220v 50hz

• 412mmx290mmx500mm0.0597m3

We are offering intelligent battery discharger.intelligent battery discharger is an instrument that can deeply discharge maintenance and capacity test to batteries in telecommunication, electricity, railway and so on. It is of small volume, latest design, safe and long life. Voltage and current value can be displayed by led. Simple operation, adopt special component and patent technology power consumption part. It can improve the complete machine reliability rapidly.after discharging, you can view all kinds curves on pc to analyze the battery. main features and functions: 1. Constant current discharge, online monitor, for battery daily maintenance. 2. Lcd display, keyboard set, menu hint, simply operation, high intellectual. You can set voltage, current, time and so on, testing and monitoring all the parameters automatically. 3. Online monitoring, display all the parameters, such as discharge current, voltage, discharge time, discharge capacity, temperature and so on, transfering to pc at the same, then you print the charts. 4. It can constant current discharge after setting the parameters. 5. Stop automatically: you can set lower limit of total battery set, discharge capacity, discharge time to realize automatic self-protection 6. Self-alarming function: it will alarm automatically if there is high temperature or power break-off 7. It adopts latest special ally resistor with safety and long life. 8. It can store 8 times discharge datas, users can search according to their requirements. 9. Single chip control and u disk saving. 10. It can generate all kinds of graphs through u disk or communication port to pc after working. 11. Monitor function by software 1) software can gain the information from the machine (stop state, contant current discharge state) 2)software can gain the discharge parameters of the machine(set parameter and running parameter) 3)software can set the discharge parameter of the machine (notice:you can not set parameter when it is discharging. Software has corresponding hints if your operation is wrong) 4)software can control setup or stop discharge of the machine. 5)you can get the stored discharge history datas through communication interface (rs232. Serial interface) 12. The calibration revision function of setting voltage/current reality :mainly for voltage/current of battery set. 13. Input the limit protection function:you can not input data, if the set data exceed the rating data 14. Because the small volume and special design adopting latest high quality primary device, making it a replacement of the former one, and even more smaller.

• MOQ 1 Set(s)
• 340mmx720mmx580mm0.14m3

We are offering intelligent battery charger, discharge tester etc.it adopts latest power-consuming componet, with patent, on-line display in real time, test volts of battery, at the same save data or to pc, lcd display, simple operation, high intellectual.you can set volts, current, time, capacity and so on, test and monitor automatically.after charge/discharge, data can be transferred to pc or be transferred to u disk on-site, collecting data throuhg software, generating all kinds of charts, providing scientific basis for analysis performance of battery.

We are offering electric vehicle charging station.as a fast charge design, it can be used to monitoring charging host, motive battery including operation room, host room, monitoring room, terminals and supporting facilities.the mainly applications are in large construction projects, such as municipal planning projects, highway service etc.

We are offering intelligent grid, micro grid etc.as power consuming components and circuit simulating device, kaixiang micro-grid testing equipment can be used to testing output stablity, parallelism and harmonic wave of micro-grid and meet with the requirements of protection experimental of micro-grid.it is also used to testing the hwole micro-grid system, take down all the test data in loading progess.it also helps to complete intelligent control of the micro-grid, optimize scheduling and seamless switching techniques.

We are offering vehicle charging station.as a fast charge design, it can be used to monitoring charging host, motive battery including operation room, host room, monitoring room, terminals and supporting facilities.the mainly applications are in large construction projects, such as municipal planning projects, highway service etc.
