Intelligent Charge, Discharge Tester

We are offering intelligent charge, discharge tester etc.products

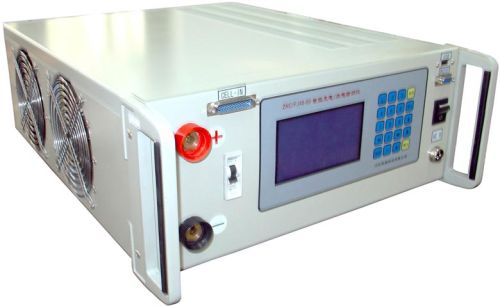

intelligent charge/ discharge tester
click to enlarge image
origin china
model number znc/fj48-60
brand name triumph load
intelligent charge/ discharge tester is a pioneer product leading in domestic china. Its multi-functional feature has five functions of charge, discharge, diagnoses, online monitoring and activation in one combine. The introduction of the tester has effectively reduced the corporations' costs and maintenance personnel' workingload, provides a complete scientific testing method for the maintenance of continuous battery and ups power supply.
main functions
l charge, discharge, diagnoses, online monitoring and activation, ''five in one''
1. Scm control realizes constant current discharge.
2. Intelligent three-phases charge mode, even/floating charge, constant current/voltage automatic switch function.
3. Adjustable and controllable parameters: voltage, current, time, capacity. Automatic test and control for continuous battery parameters.
4. Real-time online monitoring: real-time online display, test, record cell/overall voltage with simultaneous data storage/pc transmission.
5. Repeated charge/discharge process realizes battery activation, thus extend the battery life.
main features
1 lcd screen: chinese menu display for all test figures including discharge current, overall voltage, cell voltage, discharging time, discharge capacity and temperature, etc.
2 latest power-consuming components ensure safety, long-life and no red-hot.
3 data transmission from scm to flash disk resolve high-volume data storage.
4 rs232/rs485 interface for computer upload and background process, automatic diagram/report generation.
5 powerful data processing: easy operation, windows-based software for data processing, cell internal resistance and residual capacity analysis, curve displaying and report generating, provides scientific evidence for the analysis of battery performances.
6 portable smart design, suitable for high mobility users.
technical parameters:
model: zn48-60c/f
cell voltage: 2v/6v/12v
input voltage: dc 48v+-15%
adjustable current range: 5-300a
adjustable current variation: 1a
constant current charge/discharge variation: 1%
overall voltage variation: 1%
cell voltage variation: +-10mv
timer: 0 - 99hrs
power supply: ac 220v/16a
number of cells: 24
insulation intensity: input vs. Crust and output ≥ 1500v
input vs. Crust ≥ 500v
mttf: (mtbf): ≥ 50000h
dimensions (mm): 426*172*448
weight: 18kg.
