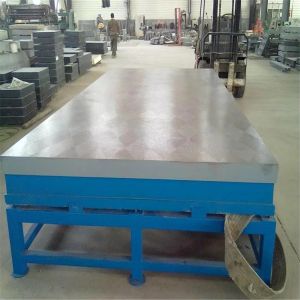

The cast iron surface plate  is a measurement benchmark for inspecting the flatness, parallelism, straightness, and other geometric tolerances of mechanical parts. The cast iron marking platform can also be used for marking, riveting, grinding, and measurement of general and precision parts. The accuracy of cast iron surface plate  is generally level 3, with specifications of 1000-9000mm. 　　The specifications of the  surface plate  are 200 × 200-3000 × 8000mm (special specifications can be customized according to user drawings or agreed upon by both parties for production and processing) 　　Material of  surface  plate and marking platform 　　The hardness of the working surface of the high-strength cast iron HT200-300 on the marking platform is HB170-240. After two manual treatments (artificial annealing at 600-700 degrees and natural aging for 2-3 years), the product has stable accuracy and good wear resistance. 　　Accuracy of surface  plates and marking platforms 　　The  surface plate  is executed according to the national standard metrological verification regulations, with four levels: 0, 1, 2, and 3.

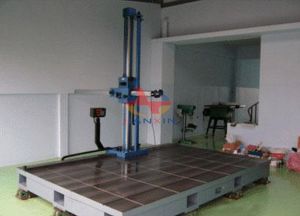

Cast iron T slot  surface  plates are specifically used as basic flat plates (platforms) for large equipment. They have the characteristics of reasonable design, stable structure, high precision, and wear resistance. They can achieve flat plate splicing of 3000mm-6000mm. The products are made by scraping or grinding. Widely used in mechanical processing, tool workshops, machine (inspection) repair workshops, large equipment bases, measuring rooms, and precision machining inspection, measurement, and grinding, and can accurately measure and inspect the flatness, straightness, and angle tolerance values of workpieces. 　　Cast iron  T slot surface  plate material: high-strength cast iron HT200-300. 　　The hardness of the cast iron T slot   surface  working face is HB170-240. After two manual treatments (manual annealing at 600-700 degrees and natural aging for 2-3 years), the product has stable accuracy and good wear resistance. 　　Cast iron T slot  surface  plate specifications: 100 * 100-4000 * 8000mm (special specifications to be made according to the buyer's drawings). 　　Precision of cast iron  T slot  surface  plates: According to the national standard metrological verification regulations, they are classified into four levels: 0, 1, 2, and 3. 　　Cast iron  T slot surface  plates can be designed according to customer requirements to determine the size of the platform and whether it is equipped with brackets.

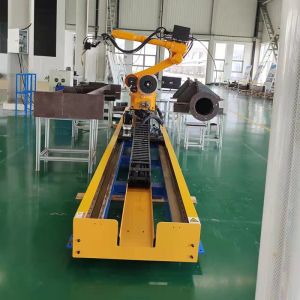

The robot walking track mainly includes: 　　1. Track base 　　2. Heavy load roller guide rail rack 　　3. Imported servo system and planetary reducer 　　4. Equipped with a lubrication system, it can continuously achieve automatic lubrication function. 　　5. Dust prevention system (fully enclosed form, semi enclosed, open optional) 　　6. Travel limit switch 　　7. Buffer device 　　8. High flexibility silent drag chain 　　The robot's walking track adopts a servo power system, which achieves fast speed, high accuracy, good dust and dirt resistance. It is suitable for loading and unloading, welding, assembly, spraying, inspection, casting, forging, heat treatment, metal cutting, handling, stacking and other work of machine tool workpieces, meeting the actual needs of factory automated production lines.
