PARAMETER: The stainless steel flat flex belt features a single layer structure, which contributes to its lightweight quality, and the belt is driven by roller chain sprocket. Flat Flex Mesh Belts are ideal for light transfers and a re suitable for a wide range of active food contact applications such as: Drying, Heating, Coating, Cooling, Draining, Glazing and wrapping lightweight products. Material 304 stainless steels, 316 stainless steels Rod pitch(mm) 4.3-22 Wire diameter(mm) 1, 1.2, 1.4, 1.5, 1.6, 1.8, 2, 2.3, 3 Belt width (mm) 200-3600 Note: above are common specifications, other specifications can be customized according to customer requirements. For now, wire mesh conveyor belt is mainly divided into major categories: Chain Driven Mesh Belt is widely used in spiral freezer machines; Spiral Mesh Belts are suitable for the conveying of small and high density materials ; Eye Link Belt is suited to convey heavy loads and unstable or fragile products that require good support from the conveyor belt ; Balanced Weave Belt is extensively applied for conveying parts of metallurgy, food processing, pharmacy, glass print, special equipments; Flat flex bel t is mainly used in for quick-frozen food, fried food, sugar machine, chocolate coating with a variety of bread and pastry food baking conveyor line ; Flat Wire Belt is usually used for the equipment of cooling, drying, bread production, washing, sorting and products processing, etc. In a word, according to the use environment and clients ’ special requirements, we can be able to give them different type of conveyor belt. For all of your conveyor belt installation, commissioning, condition monitoring, and maintenance, please rest assured to contact us today!

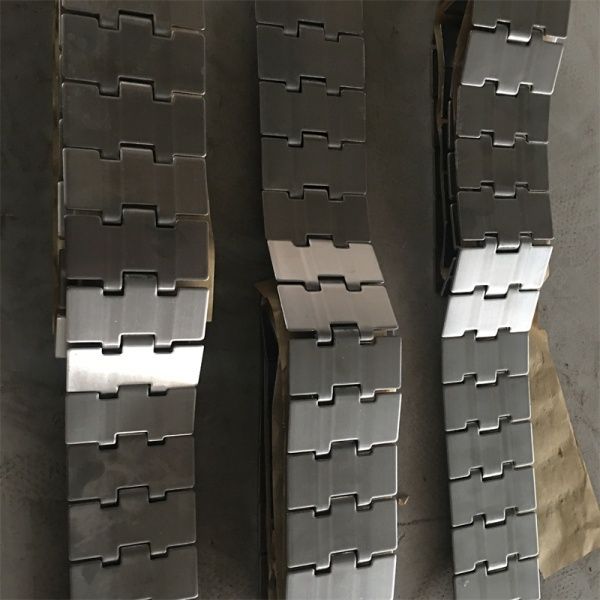

PARAMETER: Technical Details And Specification of Stainless Steel Chain Plate Conveyor Belts Product Name Stainless Steel Chain Plate Conveyor Belts Certificate SGS Technique Chain Plate Conveyor Belts Material 201, 304, 316L, 310S, 410 etc Specification Chain pitch: 19.5mm, 25.4 mm, 31.75 mm, 38.1 mm, 50.8 mm, 63.5 mm. Rod diameter: 4mm, 5 mm, 6 mm, 7 mm, 8 mm, 10 mm, 12 mm. Plate thickness : 0.8mm, 1.2mm, 1.5 mm, 1.6 mm, 1.8 mm, 2 mm, 2.5 mm, 3 mm Belt width: 200 mm to 6, 000 mm. Application Drying , Cooling, Freezing and Baking machine Size Max width can reach to 6 000mm , belt length can be customized as your machine. Other services Special requirements can be customized Flat-top Plate Belts: Plate conveyor belts are well suited to drying processes. The self-supporting structure of these belts means they can be used over large widths without support. Perforations allow the opening in the belt to vary from zero to very large. Chain-driven plate belts can be fitted with edge plates. It also can be used for food processing, leisure food production and ceramics production etc. Plate link belts are suitable for a wide range of active food contact applications such as: Baking Frying Drying Cooling Freezing Features: 1. A wide range of applications. In addition to the viscosity of particularly large materials, general solid materials and components can be transported by it; 2. Large conveying capacity. 3. The strength of the traction chain is high, which can be used for long-distance transportation; 4. Flexible layout of transmission line. Compared with the net belt conveyor, the chain plate conveyor can be transported under the condition of larger inclination Angle and smaller bending radius, so the flexibility of the layout is greater. The inclination Angle of chain plate conveyor can reach 30°-35°, and the bending radius is generally about 5-8m; 5, in the conveying process can be classified, drying, cooling or assembly and other processes; 6, stable and reliable operation.
