Technical Details And Specification of Curved Belt
Product Name | Stainless Steel Curved Belt |
Certificate | SGS |
Technique | Stainless Steel Curved Belt |
Material | 201,304,316L,310S,410 etc |
Specification | · Wire diameter: 1.2mm,1.5 mm, 1.6 mm, 1.8 mm, 2 mm, 2.5 mm, 3 mm. · Spiral pitch: 2.4 mm to 100 mm. · Rod pitch: 25.4 mm, 31.75 mm, 38.1 mm, 50.8 mm, 63.5 mm, 76.2 mm. · Belt width: 200 mm to 6,000 mm. |
Application | Drying,Cooling,Freezing,Pasteurizing,Blanching,Baking and Washing machine |
Size | Max width can reach to 6000mm , belt length can be customized as your machine. |
Other services | Special requirements can be customized |

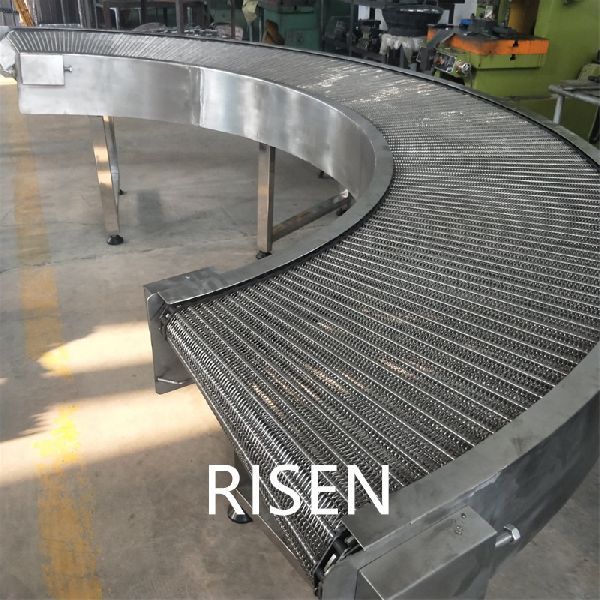

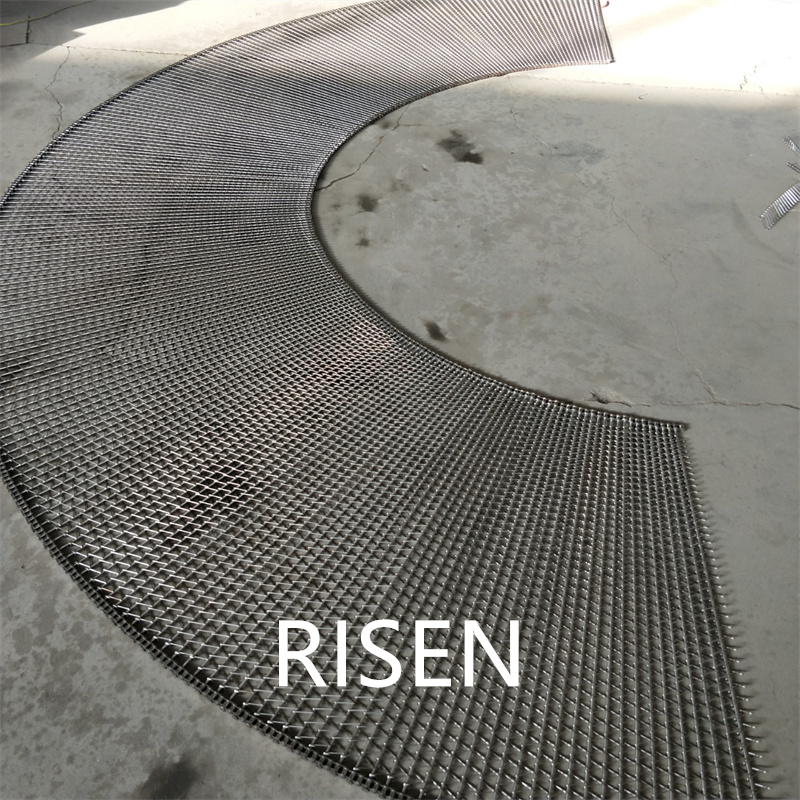

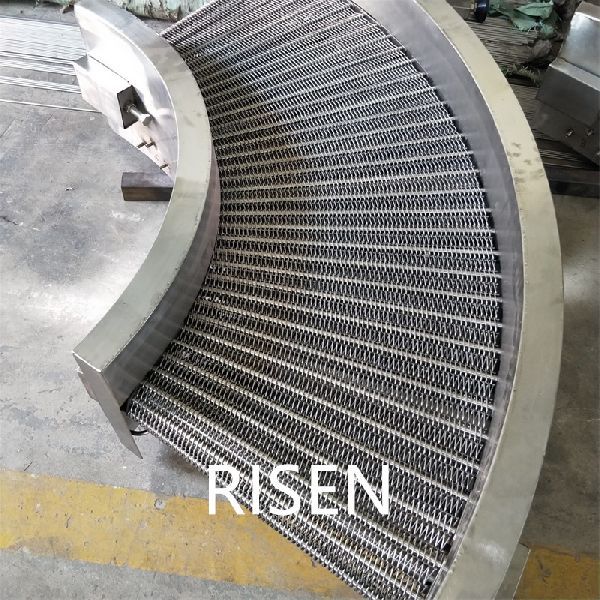

The curved belt can be installed on many conveyor systems making full use of existing space in order to work around issues caused by limited workshop space. Customers can choose from 90, 180 or 360 degree turn angles, and the system will smoothly maintain proper product stacks in order to minimize potential product damage.
The curved belt is a deformation on the basis of all types of not only wire mesh belts,but also including plate link belts.For now,wire mesh belt is mainly divided into major categories:Chain Driven Mesh Belt is widely used in spiral freezer machines;Spiral Mesh Belts are suitable for the conveying of small and high density materials;Eye Link Belt is suited to convey heavy loads and unstable or fragile products that require good support from the conveyor belt;Balanced Weave Belt is extensively applied for conveying parts of metallurgy, food processing, pharmacy, glass print, special equipments;Flat flex belt is mainly used in for quick-frozen food, fried food, sugar machine,chocolate coating with a variety of bread and pastry food baking conveyor line;Flat Wire Belt is usually used for the equipment of cooling, drying, bread production, washing, sorting and products processing, etc. In a word,according to the use environment and clients’ special requirements,we can be able to give them different type of conveyor belt.
For all of your conveyor belt installation, commissioning, condition monitoring, and maintenance, please rest assured to contact us today!
