Valves & Valve Fittings

We offer a complete product range of Russian Standard Cast Iron Gate Valve PN1.0Mpa, Cast Steel Gate Valve (GOST), Wedged Type Cast Steel Gate Valve PN1.6Mpa, DIN3352 Resilient Seated Ductile Iron Gate Valve and Wafer Type Central Line Cast Steel Butterfly Valve

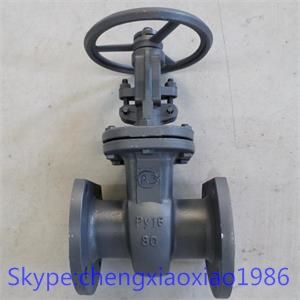

Cast Steel Gate Valve (GOST)

₹ 1,656 / 500 500 Set Get Latest Price

Min. Order (MOQ) 10 Set(s)
Material WCB
Structure wedged
Media water , oil, steam
Country of Origin China
Pressure PN1.6Mpa
Port Size DN50-DN600
Temperature Of Media less than 425 degrees

Cast steel gate valves are produced for installation on pipelines as lock units. Ends: flange ends operation: handwheel, gear box, actuator. characteristics of functionalitymedium: water , steam , oilsuitable temperature :less than 425 degreesmain parts and materials:body - carbon steelbonnet - carbon steelwedge(disc) - carbon steel with stainless steel welding working surface;stem - carbon steelstem nut ductileeye bolt carbon steelgasket graphithandwheel carbon steelworking surface of the body stainless steel welding;

Additional Information:

Payment Terms : T/T

Packaging Details : standard wooden case or wooden pallets or as required

Delivery Time : 15 days

View Complete Details

Ask Latest Price & Details

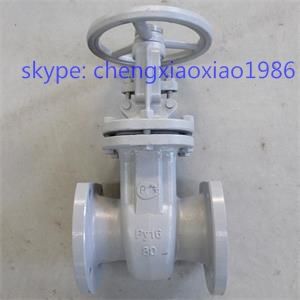

Wedged Type Cast Steel Gate Valve PN1.6Mpa

Min. Order (MOQ) 10 Set(s)
Material WCB
Application open and shut off
Power manual, hydraulic, pneumatic, solenoid
Pressure PN1.6Mpa
Media water , oil, steam
Temperature Of Media less than 425 degrees
Country of Origin China

Wedged type cast steel gate valve pn1.6mpacast steel gate valves are produced for installation on pipelines as lock units. Ends: flange ends operation: handwheel, gear box, actuator. characteristics of functionalitymedium: water , steam , oilsuitable temperature :from 29 to +425;main parts and materials:body - carbon steelbonnet - carbon steelwedge(disc) - carbon steel with stainless steel welding working surface;stem stainless steelstem nut brassgasket graphithandwheel carbon steelworking surface of the body stainless steel welding

Additional Information:

Payment Terms : T/T

Packaging Details : standard wooden case or wooden pallets or as required

Delivery Time : 15 days

View Complete Details

Ask Latest Price & Details

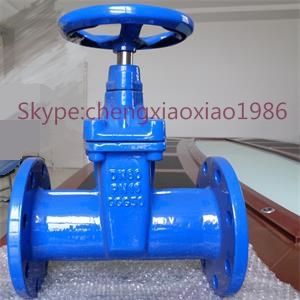

DIN3352 Resilient Seated Ductile Iron Gate Valve

Min. Order (MOQ) 1 Set(s)
Material ductile iron
Application open and shut off
Power manual, hydraulic, pneumatic, solenoid
Pressure PN1.6Mpa
Country of Origin China
Model Number DIN3352

Din3352 resilient seated ductile iron gate valve soft seat gate valves is usd the compensation action of flexible disc making trace deformation to achieve good sealing effect.this kind of valve has the outstanding advantage of overall rubber coating , anti-corrosion, nonbreakable, goog elastic memory and long service life etc. It can be widely used on tap water, sewage, construction, food, electric power, medicine, metallurgy, light textile, energy system and other fluid on the pipeline as the adjusting and the closure device. Main parts and materialname: materialbody: didisc : di+epdmnbrstem nut: brassstem: 2cr13gasket: epdmbonnet: dihandwheel: didust ring: epdmnut: brasssealing ring: ptfeo-ring: epdmlocting ring: brass

Additional Information:

Payment Terms : T/T

Packaging Details : standard wooden case or wooden pallet or as required

Delivery Time : 15 days

View Complete Details

Ask Latest Price & Details

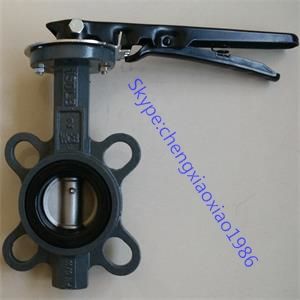

Wafer Type Central Line Cast Steel Butterfly Valve

Min. Order (MOQ) 1 Set(s)
Material WCB
Application adjust
Power manual, hydraulic, pneumatic, solenoid
Pressure PN1.0Mpa/1.6Mpa
Structure butterfly
Media water , oil, steam
Port Size DN40-DN250
Country of Origin China
Model Number D71X-10C/16C

Product overviewthe valve is made of ptef sealing and carbon steel valve body, it is normally used for food industry, medicine, chemical industry, oil, electricity, light textile, papermaking industry. The application is regulated flow or closure the medium in water supply and drainage pipeline or gas pipeline. characteristics of functionalitynormal diameter: dn40-dn250normal pressure: pn10, pn16applicable medium: fresh water, sewage, seawater, etc.Suitable temperature: -20c---135cdriving form: manual operation, worm and worm wheel , gas transmission, electric transmission main parts and materialsvalve body carbon steel , ductile iron , alloy steel , stainless steelvalve disc cast steel , stainless steel or special materialsealing surface pte

Additional Information:

Payment Terms : T/T

Packaging Details : standard wooden case or wooden pallets or as required

Delivery Time : 15 days

View Complete Details

Ask Latest Price & Details

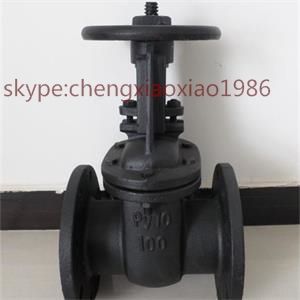

Russian Standard Cast Iron Gate Valve PN1.0Mpa

Min. Order (MOQ) 1 Set(s)
Material grey iron /ductile iron
Application pipeline
Power manual, hydraulic, pneumatic, solenoid
Pressure PN1.0Mpa/1.6Mpa
Media water , oil, steam
Port Size DN50-DN600
Country of Origin China

Russian standard cast iron gate valve pn1.0mpa usage: cast iron gate valves are produced for installation on pipelines as lock units. Ends: flange ends operation: handwheel, gear box, actuator. This product is extensively used in petro-chem industry, pharmacy and power industry etc. The flowing medium includes steam, water and oil etc. Main parts and materials:body - grey ironductile ironbonnet - grey ironductile ironwedge(disc) - grey iron with brass welding working surface;stem - carbon steelstem nut ductile ironnut grey ironstud, bolt grey ironeye bolt grey irongasket graphithandwheel grey ironworking surface of the body brass welding;

Additional Information:

Payment Terms : T/T

Packaging Details : standard wooden case or wooden pallets or as required

Delivery Time : 15 days

View Complete Details

Ask Latest Price & Details

Wafer Type Cast Iron Butterfly Valve

Min. Order (MOQ) 1 Set(s)
Material cast iron
Application adjust
Power manual, hydraulic, pneumatic, solenoid
Pressure PN1.0Mpa
Media water , oil, steam
Port Size DN40-DN800
Country of Origin China
Model Number D71X

Wafer type cast iron butterfly valve specificationsuitable medium: water, oil, steam and non-corrosive medianorminal pressure: 1.01.6mpanominal temperature: from -35 c to130ctransient temperature: 150 c main parts and materials:body - cast iron gg18disc cast iron with nickelstem carbon steel seat - epdm.

Additional Information:

Payment Terms : T/T

Packaging Details : standard wooden case or wooden pallets or as required

View Complete Details

Ask Latest Price & Details

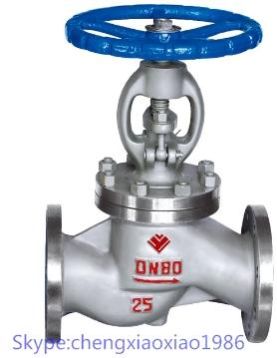

Flanged Steel Globe Valves

Min. Order (MOQ) 1 Set(s)
Material WCB
Pressure PN1.6Mpa
Structure stop
Media water , oil, steam
Country of Origin China
Power manual, hydraulic, pneumatic, solenoid

Flanged steel globe valvesusagethis valve applies to the water, steam or oil pipeline which is noncorrosive medium and the pipeline must be the working temperature 425 c. main parts and materialsbody: wcbbonnet: wcbstem: stainless steeldisc: carbon steel with stainless steel surfacehard alloyyoke nut: brass

Additional Information:

Payment Terms : T/T

Packaging Details : standard wooden case or wooden pallets or as required

Delivery Time : 15 days

View Complete Details

Ask Latest Price & Details

Flanged Steel Ball Valves

Min. Order (MOQ) 1 Set(s)
Material WCB
Pressure PN1.6Mpa
Country of Origin China
Model Number Q41F
Structure ball
Media water , oil, steam

Usagethis valve applies to the water, steam or oil pipeline which is noncorrosive medium and the pipeline must be the working temperature less than 200 degrees. main parts and materialsbody: wcbstem: stainless steelball: stainless steelseal ring: f4 stainless steel + h

Additional Information:

Payment Terms : T/T

Packaging Details : standard wooden case or wooden pallets or as requried

Delivery Time : 15 days
