Hefei Setsailtelecom Co. Ltd

Hefei, Anhui, China

• MOQ 1 Piece(s)
• Frequency800-2500/800-2700/698-2700MHZ
• Brand NameSETSAIL
• Applicationindoor
• Stock600PCS
• Inpedance50ohm
• ConnectorN Female
• Insertion loss≤8.8
• Country of Originchina(mainland)
• Isolation≥18
• ModelYF-PS-0815-08NF
• VSWR≤1.35：1

• MOQ 1 Piece(s)
• Frequency885--954/1880-1920MHZ
• Brand NameSETSAIL
• Model NumberYF-RFCOM-3-01N
• ConnectorN Female
• Stock600PCS
• Insertion loss≤0.6dB
• Out band Rejection≥80@CH2&3
• Inpedance50ohm
• Passband Ripple≤0.4dB

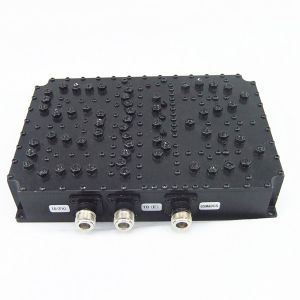

We offer Three Band Rf Combiner. Model 　　　　　　　　　　　 YF-RFCOM-3-01N 　　 CH1:GSM CH2：TD(A) CH3：TD(B) Frequency(MHz) 　　 885-954 1880-1920 2010-2025 Insertion Loss(dB) 　　 ≤0.6dB ≤0.6dB ≤0.6dB Passband Ripple(dB) 　　 ≤0.4dB ≤0.4dB ≤0.4dB Out band Rejection(dB) 　 ≥80@CH2&3 ≥80@CH1&3 ≥80@CH1&2 VSWR ≤1.25 IM3 ≤-120dBc or -140dBc@2×43dBm Impedance(ohm) 50 Power(W) 200 Operating Temperature(deg) -30～+65℃ Connector Type N-F Dimensions(mm) 219*147*41 (Without Connectors) Weight(kg) 1.750

• MOQ 1 Piece(s)
• FrequencyDC3GHZ
• Average power5/10/20/50/100/200w
• VSWR1.2:1
• Inpedance50ohm
• Attenuation3-6/10/20/30/40/50/60dB
• ConnectorN Male-N Female
• Applicationindoor
• Brand NameSETSAIL
• ModelYF-RFCA-5W-N

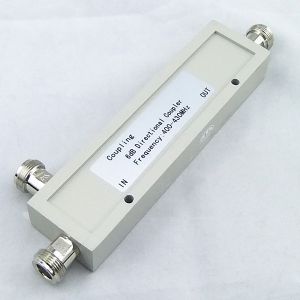

• MOQ 1 Piece(s)
• Frequency400-430/350-520/350-1000MHZ
• Brand NameSETSAIL
• Applicationindoor
• ConnectorN Female or DIN(7/16)Female
• Coupling6±0.6
• power capacity200w
• ModelYF-DC-3510-06-NF
• Insertion Loss1.75
• Directivity≧20
• VSWR≦1.25:1
• Inpedance50ohm

• MOQ 1 Piece(s)
• Frequency800-2500/800-2700/700-2700/670-2700MHZ
• Model NumberYF-HC-627-3dB-DINF
• Brand NameSETSAIL
• Power500W
• Inpedance50ohm
• VSWR≤1.3:1
• ConnectorDIN(6/16) Female
• Insertion loss≦0.5 or 0.6
• Isolation≧23
• Stock600PCS

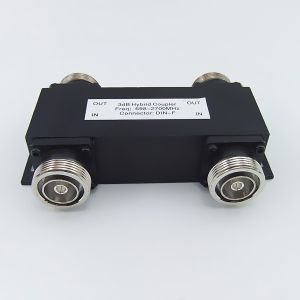

We offer Hybrid Coupler Din Female. Model YF-HC-627-3dB-DINF Frequency(MHz) 800-2500800-2700700-2700670-2700MHz Insertion Loss(dB) ≦0.5 or 0.6 Isolation(dB) ≧23 VSWR ≤1.3:1 3rd order IMD -120dBc or -140dBc or -150dBc Power Capacity(W) 500 Impedance(ohm) 50 RF Connector DIN-female Operating Temperature(deg) -35~+70 Relative Humidity 5%-95% IP Grade IP60 or IP65 Weight(kg) 0.850
