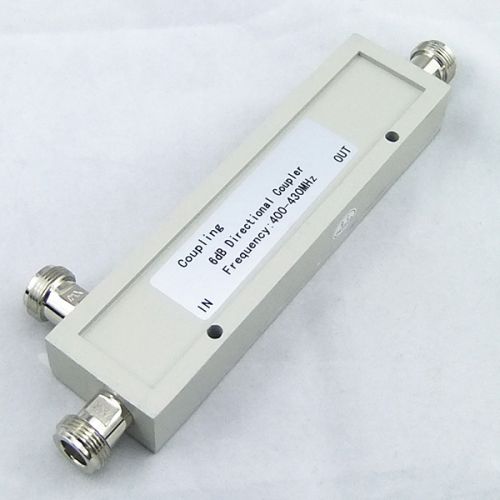

400-430/350-520/350-1000MHZ 400-430mhz 200w Directional Coupler 6db

MOQ1 Piece(s)
Frequency400-430/350-520/350-1000MHZ
Brand NameSETSAIL
Applicationindoor
Insertion Loss1.75
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Product Details

Frequency400-430/350-520/350-1000MHZ
Insertion Loss1.75
Applicationindoor
Brand NameSETSAIL
Coupling6±0.6
power capacity200w
ModelYF-DC-3510-06-NF
Directivity≧20
Inpedance50ohm
VSWR≦1.25:1
ConnectorN Female or DIN(7/16)Female

We offer Directional Coupler.
Model YF-DC-3510-
06-NF YF-DC-3510-
10-NF YF-3DC-510-
15-NF YF-DC-3510-
20-NF YF-DC-3510-
30-NF
Frequency(MHz) 400-430MHz 350-1000MHz350-520MHz
Coupling(dB) 　　 6±0.6 　　 10±0.8 　　 15±0.9 　　 20±1.0 　　 30±1.2
Insertion Loss(dB) 　　 1.75 　　 0.8 　　 0.3 　　 0.3 　　 0.3
VSWR ≦1.25:1
Power Capacity(W) 200
Directivity(dB) ≧20
RF Connector N-female or DIN(716)-female
Impedance(ohm) 50
Color Black-plated or silivery-white plated
Temperature(deg) -35~+80
Application Indoor
Weight(kg) 0.20
