Henan Sinosun Machinery Co. Ltd

henan, China

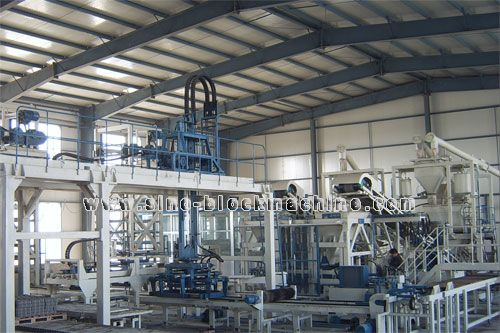

We are offering concrete block making machine. qft 12-18 concrete block making machinernrnbrief introduction:rnautomatic intelligent and high-efficient sinosun qft12-18 concrete block making machine has been called "quite explicit germany customer new style, the largest and most modern concrete block making machine in china".rnrnthe design of this concrete block machine is unique, hydraulic engine system adopt international famous brand hydraulic elements. The directional control valves of the block making machine is very soft, fast and smooth in the operation. The hydraulic system has plenty flow of hydraulic oil and pressure, its design flow for 290 liters/minute and pressure for 16 mpa.rnrnqft12-18 concrete block making machine is the heart of the automatic block production line, is currently on the market selling high-end products. Its structure consists of base material distributing mechanism, color-face material distributing mechanism, molding mechanism, demoulding mechanism, pallet feeder and green blocks belt conveyor. In addition, there are hydraulic, pneumatic and electric control systems that constitute the entire block machine. It can not only produces standard or non-standard load-bearing wall blocks, but also produces various colorful floor interlocking block and lawn block.rnrnqft12-18 concrete block making machine in a circuit is adopted in the computer control system, contains the interface for touch-screen or industrial screens screen, allow operators on glass dynamic simulation to see the machine process, and can adjust display molding products of random period can online adjust excitation force size, make the quality of the product to achieve the best. In the touch screen menu, can browse the activation of the concrete block making machine. In addition, the computer system is set for fault diagnosis of "package" intelligent, once use of malfunction, computational opportunity to tell the operator how to exclude.rnrnadvantages of vibration enginethe vibration system is the heart of the concrete block machine, this system has two 15 kw vibration motors with schneider atv type conversion governor, from 0-65 hz only 1-2 seconds response time, the vibration table produce vertical amplitude for 1-2 mm, also could produce for 33 tons of giant vibration force rapidly, and system produces excitation to acceleration overleap 20g (g = 9.81 meters seconds), more than europe similar type is generally 15g, making the materials for 6 seconds of rapid prototyping. In ordinary weight ratio condition, block strength more than 15 mpa. In order to prevent products weight and pressure head added stress, affect the vibration effect, the company borrowed euramerican professional company mould vibration model of technology in mould box of classics, the vibration link parts joined four groups of american firestone company mattress buffer, and add another one set of yijing retreat device, made under the vibrators vibration force will not be restrained, completely can get sufficient play.rnchina rn block machine rnmanufacturer and supplier.we offer "rn block making machine rnincludingrn concrete block making machine , rn concrete block machine , rn hollow block making machine , rn hollow block machine , rn mobile block making machine rn mobile block machine , rn small block making machine , rn small block machine ect.

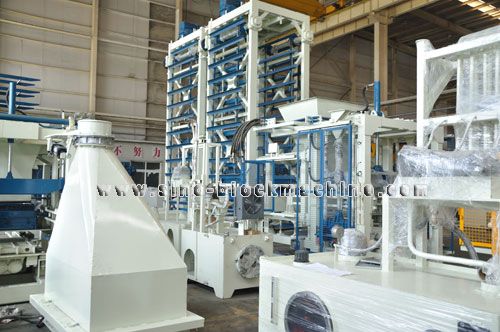

We are offering qft 4-15 concrete block making machine. brief introductionrnsinosun concrete block making machine qft4-15 features low investment and easy to operate. For local workers, qft4-15 block making machines could produce high quality block through short time training. For small business investment, qft4-15 block machine is an ideal choice.rnqft4-15 block making machine could produce concrete blocks, colorful paving blocks and other concrete blocks according to the requirements of the customers though exchange the mouldsrnrnqft4-15 concrete block making machine features:popular design of this concrete block machine: germany format, famous-and-excellent-product. rnqft4-15 concrete block making machine could widely uses fly ash and slag, hold river sands, cement and steel slag, acid water slag, slag, gangue, construction waste other industrial wastes to produce standard bricks, porous brick, hollow blocks, concrete block, paving brick, curbstone and high value-added garden environmental protection products, etc.rnrnthe hydraulic station of qft4-15 concrete block making machine uses the reversal valves made by atos (italy), rexroth (german). These famous reversal valves could run steady and reliable with reasonable design and precise manufacture. The whole system layout of the concrete block machine is reasonable, compact structure, absolute guarantee product yield and precise appearancernrnmanual and automatic: the plc control system of this concrete block making machine adopts integrated control circuits, the entire block making machine equipped with corresponding magnetron travel switch, manual function control button switches etc, reliable operation, convenient and practical operation.rnqft4-15 concrete block machine is well made, modeling beautiful generous, reliability, simple and easy maintenance adjustment, at the same time this block machine can be realized, which greatly reduce labor intensity of operators.rnchina rn block machine rnmanufacturer and supplier.we offer "rn block making machine rnincludingrn concrete block making machine , rn concrete block machine , rn hollow block making machine , rn hollow block machine , rn mobile block making machine rn mobile block machine , rn small block making machine , rn small block machine ect.

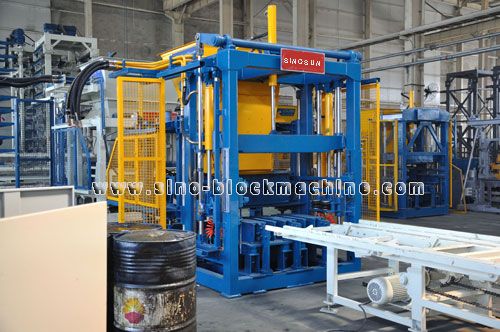

We are offering qft 6-16 concrete block making machine. The vibration engine (the core system of mechanical drive) of qft6-16 concrete block making machine, adopts the classic manufacturing process of gear drive of the high grade automobile engine, which directly guarantees the core system hardware of molding machines manufactured by sinosun reaches the international first-class quality.rnrnthe perfect automatic control system used in the concrete block making system is undoubtedly a rising star when the cost of manpower continuously rises.rnrnhydraulic cylinder and balance system of qft6-16 concrete block making machinerna is for the main hydraulic cylinder of the concrete block machine, it is used to up and down the block mould. When the vibration table vibrates to form the blocks, it is also could mix the mould.rnb is the hydraulic cylinder of the mould. It is used to up and down the concrete block mould.rnc stands for the synchronous axis. There are 2 synchronous axes beside the qft6-16 concrete block making machine to keep synchronous when the mould up and down.rnd is the guide axis. There are 4 guide axes beside the concrete block making machine. These axes would absolutely keep block mould in one horizontal plane.rnrnthe shock absorbing system of qft6-16 concrete block making machinernqft6-16 concrete block machine uses the air mat suspender to focus the shock to the vibration table and reduce the damage of the block machine, because of the huge vibration force. The air mat suspender would give the whole vibration force to blocks, let the blocks from compactness completely in 0.52.5 seconds.rnchina rn block machine rnmanufacturer and supplier.we offer "rn block making machine rnincludingrn concrete block making machine , rn concrete block machine , rn hollow block making machine , rn hollow block machine , rn mobile block making machine rn mobile block machine , rn small block making machine , rn small block machine ect.

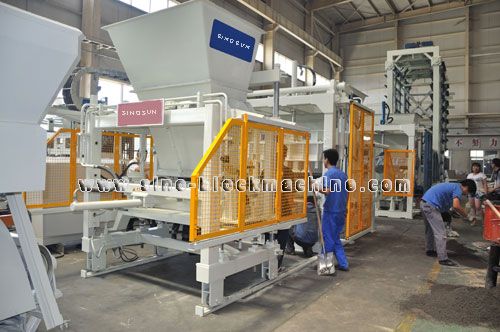

We are offering concrete block making machine. qft 9-18 concrete block making machinernrnbrief introduction: rnthe vibrator of the concrete block machine adopts the high-speed heavy structure, which greatly prolongs its service life. In the program of purchasing concrete block machine for building material plant, investors can choose different equipment matching according to their need.rnrnthe vibration system of the concrete block machinernthe special design of vibration + double vibration motors. There are 4 special design excitation blocks in the vibration box. They could adjust to different materials with variable amplitude, it just needs 0.52.5 seconds to form the concrete blocks compactness completely. The vibration box uses two frequency conversion motors (with schneider atv variable-frequency governor) and two pieces of transmission shafts in the vibration table. This is special design in our company.rnrnintelligent plc controller:rnqft9-18 concrete block making machine is operated via visualization system, using the programmed logic controller-siemens touch screen control system.it is more easy and convenient to use. Electric control system: "simpleton type" program operation.the core of the control system uses the new international level of imported from industrial programmable controller (microcomputer), the function is perfect, compact structure, strong anti-jamming capability and high reliability.rnrnelectrical system:rnthe control panel configuration of the qft9-18 concrete block machine uses the imported interface display screen, for molding machinery equipment production block process accurately automatic control, control input are imported components, relevant procedure have interlocking or interlock function, and is equipped with automatic monitoring count functionrnrnmanualandautomatic:rnqft9-18 concrete block machine adopts integrated control circuits, the entire equipped with corresponding magnetron trip state switch, manual, function control button switches etc, reliable operation, convenient operation and practical.rnchina rn block machine rnmanufacturer and supplier.we offer "rn block making machine rnincludingrn concrete block making machine , rn concrete block machine , rn hollow block making machine , rn hollow block machine , rn mobile block making machine rn mobile block machine , rn small block making machine , rn small block machine ect.
