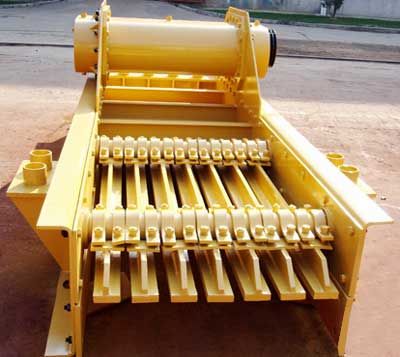

The Vibrating Feeder is Used to Transfer the Large Size Materials and Granular Materials from Hopper to Receiving Device Uniformly, Periodically and Continuously in the Production Flow and to Feed Materials Into the Crusher Continuously and Uniformly also to Screen the Materials in the Sandstone Production Line. Vibrating Feeder Equipment is Widely Used to Match the Crushing and Sieving Equipments in Many Industries Including Metallurgy, Coal Mine, Mineral Dressing, Building Material, Chemical, Grinding, Etc. Additionally, We are Reckoned as One of the Most Preeminent Vibrating Pan Feeders Manufacturers from China. vibrating Feeder's Capability and Characteristic are :it Vibrates Calmly, Works Reliably with a Long Life-span; Its Stimulating Vibrancy Power Can Be Adjusted, While the Flux Can Be Changed and Controlled, It is Convenient and Stable to Adjust; Vibrating Feeder's Vibrating Electrical Engine is Stimulating Vibrancy Fountain, with Low Noise, Low Cost of Electricity, and Good Adjusting Capability, Without Rushing Phenomenon. Its Structure is Simple and Works Stably and Easy to Adjust and Install, and It is Convenient to Maintain and Take Care for Its Light Weight and Small Size, and It Can Avoid Powder and Dust Pollution When Using the Closed Structural Body characteristics of Vibratory Feeder :smooth Vibration, Reliable Operation, Long Service Life, Low Noise, Low Power Consumption, Easy to Adjust, Simple Structure, Easy to Install, Light Weight, Small Volume, Simple Maintenance.
Technical Parameter :
| Model | Feed chute size (mm) | Max. feeding size (mm) | Handling capacity (t/h) | Power (kW) | Overall dimension (mm) | Weight (including motor) (kgs) |
| GZD-960 x 3800 | 960 x 3800 | 500 | 120-210 | 11 | 3880 x 2240 x 1880 | 3980 |
| GZD-1100 x 4200 | 1100 x 4200 | 580 | 200-430 | 15 | 4300 x 2450 x 2010 | 4170 |
| GZD-1100 x 4900 | 1100 x 4900 | 580 | 280-500 | 15 | 4980 x 2450 x 2030 | 4520 |
| GZD-1300 x 4900 | 1300 x 4900 | 650 | 450-600 | 22 | 4980 x 2705 x 2050 | 5200 |
| | | | | | |
| Notice : Any change of Vibrating Feeder technical data shall not be advised additionally. |
