Welcome to Z Tech Sensor
We have exported our inclinometer,tilt switch,digital compass, IMU, AHRS,FOG to dozens of countries such as Germany(like Siemens),Sweden,Spain,USA, Australia,Saudi Arabia,UAE,Brazil,Indonesia,Malaysia,India,Russia,South Africa etc based on our quality and after-sale service. With researchers account for 50% of the total, we have acquired many certifications like ISO, CE, ROHS and so on.
Manager
Hanson
Year of Establishment
2005
Primary Business
Supplier
Introduction VG500 vertical gyroscope is a low-cost, high performance inertial measurement device used for measuring the attitude parameters (roll and pith) as well as angular velocity and acceleration of carriers in motion. Deviation of attitude and angular velocity can be estimated optimally by 6-state Calman filtering with appropriate gain. It is a product applicable to dynamic measurement of navigation and positioning. High-quality and reliability MEMS accelerometer and gyroscope have been adopted in BWD-VG500 together with optimal algorithm to guarantee accuracy of measurement. Besides, seal design as well as strict techniques allows the product to measure the accurate motion parameters of the carrier such as angular velocity, acceleration, and attitude, etc. With nonlinear compensation, perpendicular compensation, temperature compensation, and drift compensation, etc, the error sources of BWD-VG500 can be significantly eliminated so as to improve the overall accuracy. Features 1. Nonlinear compensation, perpendicular compensation 2. Dynamic accuracy 0.1Ã��ï¿Â½ÃƒÃ¯Â¿Â½ÃƒÂ¯Ã‚¿Â½ÃƒÃ¯Â¿Â½Ãƒ‚° Static accuracy 0.01Ã��ï¿Â½ÃƒÃ¯Â¿Â½ÃƒÂ¯Ã‚¿Â½ÃƒÃ¯Â¿Â½Ãƒ‚° 3. Drift cancellation by special bias tracking algorithm 4. Gyroscopic drift compensation 5. RS232, 485, TTL optional output interfaces 6. , temperature compensation 7. High performance Calman filtering algorithm 8. Product size: L103.8 x W55.4 x H26 (mm) Part of Applications 1. Machine Equipment 2. Solar tracking 3. Bridge Monitoring 4. Building Monitoring 5. Excavation Tilt Monitoring 6. Vehicle 7. Slope Monitoring 8. Construction Machinery 9. Platform Leveling 10. Tower Crane 11. Lifting Machinery 12. Pole Tilt Monitoring 13. Ship 14. Agricultural Machinery 15. Medical Devices 16. UAV 17. Antenna Adjustment 18. Robot
Introduction lis342 is a dual-axis inclination switch produced by bewis sensing technology llc. With a measurement range is +- 90â°, the output cable turns to closed (or disconnected) in case the measured inclination is larger than alarm threshold value, if otherwise, the output cable is normally open (or closed) if the measured inclination does not reach alarm threshold value. Users are not required to purchase an extra relay since an embedded relay has been equipped in the product. Max current may reach as high as 1a at normally closed status, and alarm threshold value can be determined as per the practical situation. It is characterized by its small size, high consistency and stability. As a highly cost-effective inclination switch, it is able to work under an industrial range of temperature from -40â��ï½�85â��. Features 1. Dual-axis inclination detection optional 2. Arbitrary setting of alarm threshold value 3. Two-channel alarm single-line 4. Wide voltage input: 9ï½�35v 5. Small size: (91*40*26mm) (customizable) 6. Shock resistance>2000g 7. High resolutionï¼�0.01â° 8. Full range of accuracy: 0.1â° 9. Wide range of working 10. Temperature: -40ï½�+85â�� 11. Ip67 protection part of applications 1. Machine equipment 2. Solar tracking 3. Bridge monitoring 4. Building monitoring 5. Excavation tilt monitoring 6. Vehicle 7. Slope monitoring 8. Construction machinery 9. platform leveling 10. Tower crane 11. Lifting machinery 12. Pole tilt monitoring 13. Ship 14. Agricultural machinery 15. Medical devices 16. Uav 17. Antenna adjustment 18. Robot
Introduction BW-AH500 Attitude and Heading Reference System (AHRS) is a high performance and low cost inertial equipment, for measurement of attitude parameters (roll & pitch), angular rate, acceleration and course angle of dynamic carrier. Its attitude and angular bias are optimized via a six-state Kalman filter with adaptable gain, so as to make it good for dynamic measurement in navigation and positioning applications. BW-AH500 adopts high reliability & stability MEMS accelerometer, gyroscope and magnetometer and uses optimal algorithm to ensure measurement accuracy. Meanwhile, its rugged-design and strict production process safeguard the precise measurement of angular rate, acceleration, attitude and other dynamic parameters of the carrier under harsh environment Features Dynamic compensation, perpendicular compensation Dynamicstatic measurement Driftcancellation by special bias tracking algorithm Gyroscopic drift compensation Heading Accuracyï¼�0.3�° RS232, 485, TTL optional output interfaces Broad temperature rangeï¼�-40~+85â��, temperature compensation High-performance Kalman filtering algorithm Product sizeï¼�L103.8��W55.4��H26ï¼�mmï¼� Part of Applications 1. Machine Equipment 2. Solar tracking 3. Bridge Monitoring 4. Building Monitoring 5. Excavation Tilt Monitoring 6. Vehicle 7. Slope Monitoring 8. Construction Machinery 9. Platform Leveling 10. Tower Crane 11. Lifting Machinery 12. Pole Tilt Monitoring 13. Ship 14. Agricultural Machinery 15. Medical Devices 16. UAV 17. Antenna Adjustment 18. Robot
Introduction unmanned vehicles are performing progressively more complex tasks-and requiring increasingly robust and accurate heading and orientation information. But existing ahrs modules leave too much room for error. They lose heading when encountering magnetic distortion; they suffer from errors when experiencing erratic motion; and often don�t provide accurate headings, even in a static environment. And at more than $2000 for a mems-based ahrs, it�s no wonder ahrs have only been integrated by a select few customers. So when there�s no room for error, hec395 stays on track. The new hec395 ahrs provides unparalleled heading accuracy when static, while moving and when encountering magnetic distortion. Hec395 employs a patented kalman filtering algorithm that intelligently fuses magnetic sensors with gyros and accelerometers to overcome errors due to erratic motion and changes in the local magnetic field. And hec395 is priced for commercial use � delivering more reliable heading than ahrs modules that cost twice as much. Features 1. High accuracy: 0.3-0.5Ⱐ2. Rs232rs485ttl optional; modbus optional 3. Widely working temperature: -40��+85� 4. Small size: l60*59*29mm 5. Low power consumption 6. Hard and soft iron correction with quality of calibration score 7. User calibration procedures part of applications 1. Machine equipment 2. Solar tracking 3. Bridge monitoring 4. Building monitoring 5. Excavation tilt monitoring 6. Vehicle 7. Slope monitoring 8. Construction machinery 9. platform leveling 10. Tower crane 11. Lifting machinery 12. Pole tilt monitoring 13. Ship 14. Agricultural machinery 15. Medical devices 16. Uav 17. Antenna adjustment 18. Robot

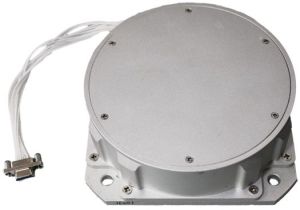

Model biasâ instabilityï¼�âºhï¼� scale factorï¼�ppmï¼� randomâ walkï¼�âºâ��hï¼� agilelight-100a 1 â�¤ 300 â�¤ 0.1 agilelight-100b 1 â�¤ 300 â�¤ 0.1 agilelight-100c 1 â�¤ 300 â�¤ 0.1 agilelight-200a 0.5 â�¤ 300 â�¤ 0.05 agilelight-200b 0.5 â�¤ 300 â�¤ 0.05 agilelight-200c 0.5 â�¤ 300 â�¤ 0.05 agilelight-300a 0.1 â�¤ 200 â�¤ 0.01 agilelight-300b 0.1 â�¤ 200 â�¤ 0.01 agilelight-300c 0.1 â�¤ 200 â�¤ 0.01 agilelight-400a 0.05 â�¤ 80 â�¤ 0.005 agilelight-400b 0.05 â�¤ 80 â�¤ 0.005 agilelight-400c 0.05 â�¤ 80 â�¤ 0.005 agilelight-500a 0.02 â�¤ 50 â�¤ 0.002 agilelight-500b 0.02 â�¤ 50 â�¤ 0.002 agilelight-500c 0.02 â�¤ 50 â�¤ 0.002.
