specifications:

1.cpu: mediatek mt8735 quad-core 1.3ghz;

2.operation system: android 7.0,

3.display: 7inch capacitive multi-touch ips hd screen 1280*800pixels;

4.4g networks: support gsm: b5/b8/b3/b2=850/900/1800/1900mhz,

3g wcdma: b1/b2/b5/b8=2100/1900/850/900mhz;

4g tdd-lte: b38/b39/b40/b41=2600/1900/2300/2500mhz;

4g fdd lte: b1/b3/b7=2100/1800/2600mhz.

american version 4g fdd: b4 or b17 is optional for >=1000units order.

5.front cameras: front 2.0m camera (software upgrade to 5.0m);

6.memory & storage: 1g ram + 8g rom;

7.wireless network:wifi 802.11 ac/b/g/n 2.4g+5.0ghz dual-band wifi and blutooth v4.1;

8.navigation: support gps and tv;

9.battery: without battery, can't add battery;

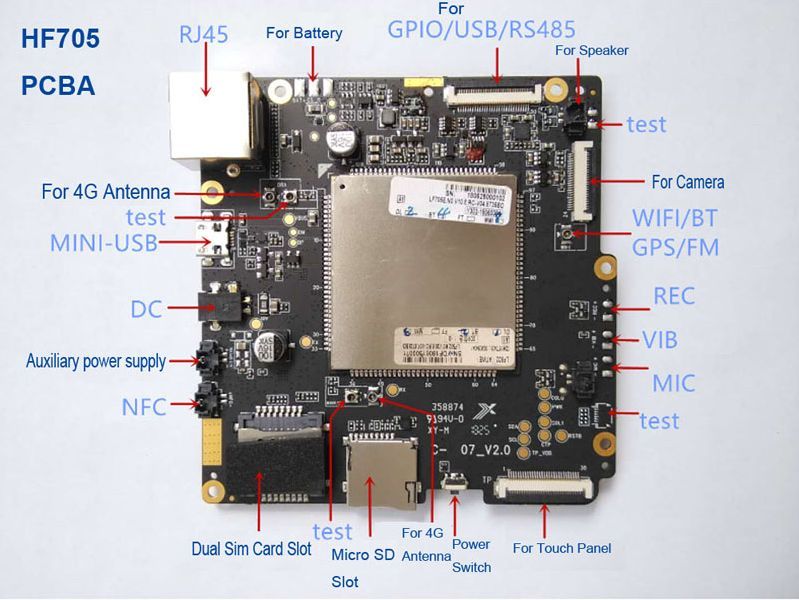

10.i/o ports:1*dc port(12v/3a), 1*micro usb port, 1*10m/100m ethernet rj45 port, 5*rs485 ports, 1*earphone jack, 2*sim card slot, 1*tf card slot;

11.front nfc: high frequency is 13.56mhzsupport ic/id card;

12.optical fingerprint scanner: recognition rate >=99.9999%, can storage 1000pcs fingerprint, support dry and wet fingerprint;

13.sensors: acceleration sensor, gyroscope, geomagnetic sensor, gravity sensor, light sensor;

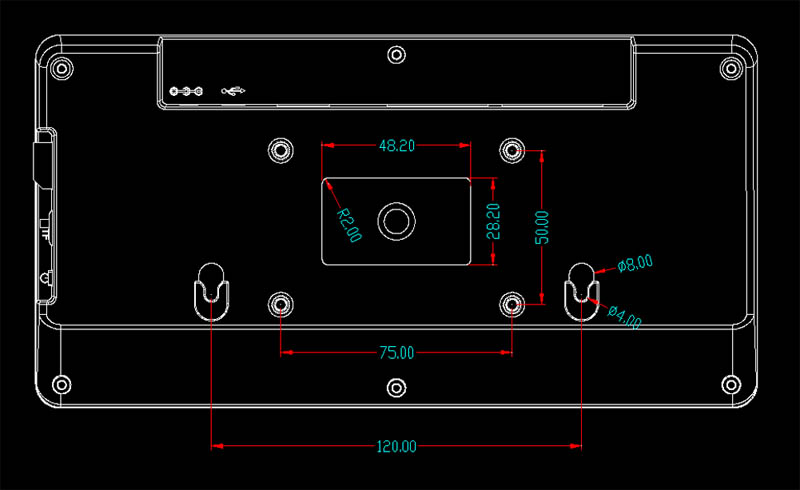

14.wall-mount design: vesa 75*50cmfor m4 screw, also has 2*wall-mount holes;

15.work temperature:-20 to 60 degree, storage temperature:-40 to 80 degree.

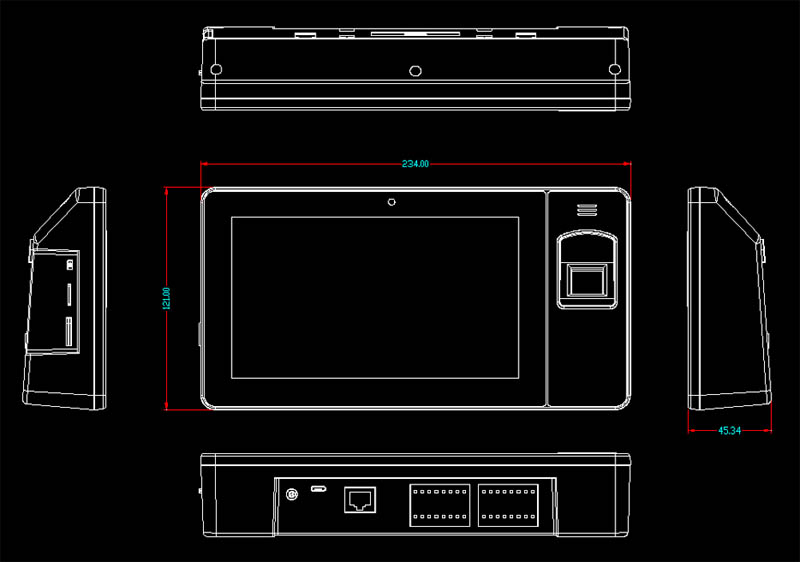

16.dimention: 234*121*45.3mm.

company info:

highton electronics co ltd is the first and professional rugged tablet pcs and rugged phones manufacturer in china, we manufactured tablet pcs since 2008 year, our oem factory has 200-300 employees, covering 5000 floor square meters, having 6 smt machines, 8 production assembly line.

model no.: hr828d

video link:

https://youtu.be/lsmhqnrdqti

specifications:

1.cpu: mediatek mtk6762 octa (8)-core 2.0ghz;

2.operation system: android 9.0;

3.display: 8 inch capacitive multi-touch, gorilla glass, ips fhd screen 1920*1200 pixels, normal sunlight readable;

4.4g networks: support 2g gsm:b5/b8/b3=850/900/1800mhz, 3g: wcdma: b1/b5/b8=2100/850/900mhz; 4g tdd lte: b39/b40/bc0=1900/2300/800mhz; fdd lteb1/b3/b5/b8=2100/1800/850/900mhz

5.two cameras: front 5.0m camera, rear 13.0m camera;

6.memory & storage: 4g ram + 64g rom;

7.wireless network: 802.11 a/b/g/n 2.4g+5ghz dual-band wifi and blutooth5.0;

8.navigation and location: support gps / glonass;

9.battery: built-in 3.7v/ 10000mah lithium battery;

10.rugged durability: waterproof and dustproof rate: ip68; ruggedness: comply with mil-std-810g;

11.nfc module: frequency is 13.56mhz, is optional for >=1000units order;

12.dimention:about 243*158*23mm, net weight: about 739g.

company introduction:

highton electronics co ltd is the first and professional rugged tablet pcs and rugged phones manufacturer in china, we manufactured tablet pcs since 2008 year, our oem factory has 200-300 employees, covering 5000 floor square meters, having 6 smt machines, 8 production assembly line.
