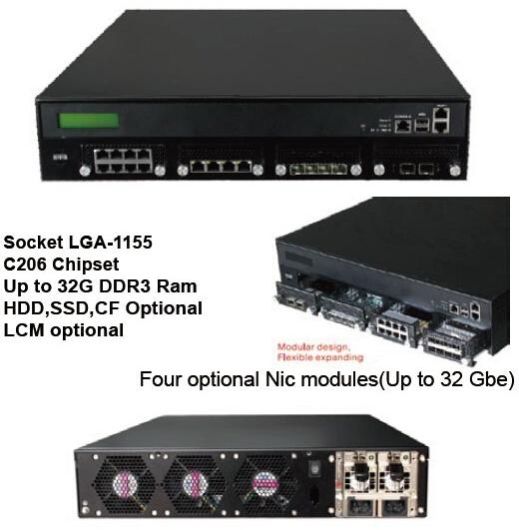

Up to 32 LAN portsIntel Xeon processors Motherboard Platform Intel Sandy Bridge Platform CPU Supports Intel Xeon E3, Gen 2 i3 core or Pentium family processor Chipset Intel C206H61 chipset BIOS UEFI BIOS System memory Four dual-channel 10661333MHz DDR3 DIMM slots, up to 32GB, support ECC function Storage Interface Five SATA connectors, one CF TypeII slot, optional one IDE interface Hard Drive Supports one 3.5" or 2.5" HDD bay; One SATA3.0, four SATA2.0, supports RAID 0, 1, 5, 10 Compact Flash Supports one CF TypeII slot Ethernet LAN Port One 101001000Mbps gigabit RJ-45 port Ethernet Controller Four Intel PCIE GbE controllers BYPASS Supports two channels BYPASS Expansion Supports to expand four HOLL LAN card, up to 32 LAN ports External IO USB Two USB2.0 COM One RJ-45 COM communication interface Console COM One RJ-45 Intel PCIe GbE console port Indicator One power LED, One HDD LED Internal IO Video One DB-15 VGA port, support hot plug USB Six USB2.0 KeyboardMouse One PS2 Keyboard and mouse Pin-header COM One RS-232 Pin-header TPM One TPM interface, for TPM module DIO 8-bit digital input output(4-bit input4-bit output) WDT Software programmable supports 1255sec System reset Expansion PCIex16 Four PCIex16 slots, for expanding four HOLL LAN card PCIex4 One PCIex4 PCI One PCI Model No. Descriptions IEC-95N44 gigabit RJ-45 ports lan card, Intel 82580 GbE controller IEC-95F44 gigabit SFP ports lan card, Intel 82580 GbE controller IEC-96NF22 SFP+ 2 Rj45 gigabit Ports, Intel 82580 GbE controller IEC-95F88 gigabit SFP ports lan card, Intel 82580 GbE controller IEC-95N88 gigabit RJ-45 ports lan card, Intel 82580 GbE controller IEC-95W2 2 10G SFP, Intel 82599 GbE controller

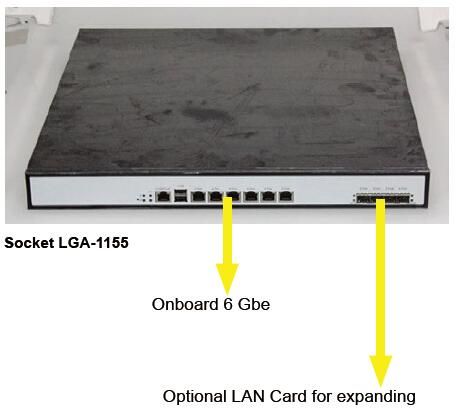

1.1u rackmount Xeon network appliance for UTM firewall(Hardware platform without software)2.Intel Xeon E3 CPU3. Linux, fedora, CentOS, kernel2, Endian, pfSense, ubuntu, free BSD, windows4.6 GbE RJ-45 ports 5.LCM optional Network firewall hardware supports Xeon E3 CPU HOll provides a wide range of X86 network appliance, secure appliances & secure hardware platform for Network security appliances, firewall hardware, VPN devices, Gateway devices, IPS IDS IDP hardware platform, UTM hardware appliances, network security platforms, firewall devices, Rackmount communication appliance. Holl's firewall hardware supports Atom D525 or D425 Gen2 i3 or i5 or i7 core E3 or E5 processor. Features Supports Intel LGA1155 Socket H2 architecture Xeon E3 Core processor Intel C206 chipset Four 240-pin 10661333MHz DDR3 DIMM slots, up to 32GB Four Intel PCIe GbE controller, support two channels bypass One SATA 6Gbs interface, four SATA 3Gbs interface, support RAID 0, 1, 5, 10 Supports USB, CF TypeII, COM Dimensions (D x W x H) 500x435x44.5 mm Motherboard CPU Supports Intel Xeon E3 family or i3i5i7 core or Pentium family processor Chipset Intel C206 chipset BIOS SPI FLASH BIOS System memory Four 240-pin 10661333MHz DDR3 DIMM slots, up to 32GBStorage Interface One SATA 6Gbs, Four SATA 3Gbs, support RAID 0, 1, 5, 10, one CFII slot, Optional one IDE interface Hard Drive Supports one 3.5" HDD bay Compact Flash One CFII slot, supports Master Slave modeEthernet LAN Port 6 101001000Mbps RJ-45 ports Ethernet Controller 6 Intel PCIE GbE controllers BYPASS Supports two channels BYPASS Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LEDExternal IO USB Two USB2.0 COM One RJ-45 COM port Indicator One power LED, 1x HDD LED
