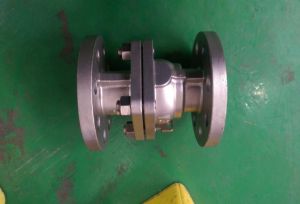

We are offering cast steel floating ball valve. Main features: principle of the cast steel floating ball valve: this kind of ball valve has a floating ball supported by two valve seats. Under the medium pressure effect, a certain displacement can be generated by the ball itself so as to be pressed onto the seat seal ring at the outlet, guaranteeing tightness at the outlet.   the floating ball valve is mainly divided into such two structures as the single-body type and double-body type float ball valve structures â  design the ball valve are designed in accordance with iso17292ã��bs 5351ã��api6dã��api607 simple structure with good tightness and small torque; have reduce bore type and full bore type with the minimum flow resistance (zero actually); low emission packing; fire safe, anti-static and anti-blowout stem design; optional locking device optional iso 5211 top flange â  product range body material: astm :wcbã��lcbã��lccã��wc6ã��wc9ã��cf8ã��cf8mã��cf3ã��cf3m ect. Nominal diameter:12"ï½�6"ï¼�dn15~dn150ï¼� end connection: rf, bw, thr pressure range: class150 â�� 600ï¼�pn16~pn100ï¼� working temperature: -46â��â - +200â�� operation : lever, gear-box, electric, etc

We are offering forged steel floating ball valves. Main features: principle of the forged steel floating ball valve: this kind of ball valve has a floating ball supported by two valve seats. Under the medium pressure effect, a certain displacement can be generated by the ball itself so as to be pressed onto the seat seal ring at the outlet, guaranteeing tightness at the outlet.â  â  design the ball valve are designed in accordance with iso17292ã��bs 5351ã��api6dã��api607 simple structure with good tightness and small torque; have reduce bore type and full bore type with the minimum flow resistance (zero actually); low emission packing; fire safe, anti-static and anti-blowout stem design; optional iso 5211 top flange â  product range body material: astmï¼�a10, lf2, f11, f22, f304(l), f316(l), f51, f6a, 20alloy ect. Nominal diameter:12â��â��-6â��â��ï¼�dn15~dn150ï¼� end connection: rf, rtj, bw, thr, sw pressure range: class150 â�� 600ï¼�pn16~pn100ï¼� working temperature: -46âºc- +200âºc operation : lever, gear-box, electric, etc

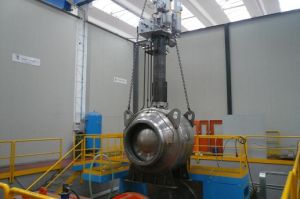

We are offering fully welded ball valve. Main features: the fully-welded ball valve adopts forged material, welded body, instead of bolts and nuts, to aviod any potential leakage from body.   the forged body with regular structure and even thickness can avoid shrinkage cavities, pin holes, cracks, sand holes and other defects occurringâ to casting body valves.   fully-welded ball valves can be spherical and cylindrical type. Usually the spherical type has only one welding seam on the body, the cylindrical type has two welding seam on the body.   design the ball valve are designed in accordance with iso14313ã��api 6d; simple structure with good tightness and small torque; with a fully-welded valve body, full bore and the minimum flow resistance emergency sealant injection; cavity pressure self relief; low emission packing; fire safe, anti-static and anti-blowout stem design; valve seat function dbb, dib-1, dib-2; optional overlay stainless steel on body to seat surface andor gasket container surface;â  be able to be used for underground installation without corrosion of interior parts, therefore, it is the best application for petroleum and natural gas line systems; service life up to 30 years.   product range body material: astm:a105, lf2, f52, f51 etc. Nominal diameter:2â��â��-48â��â��ï¼�dn50-dn1200ï¼� pressure range:class150-2500ï¼�pn10-pn420ï¼� end connection: rf, rtj, bw working temperature:-46âºc-+200âºc operation:wrench, worm gear, electric , pneumatic , gas over oil actuator and electro-hydraulic actuator.

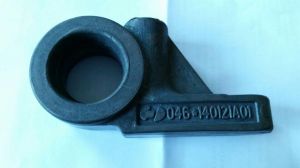

We provide precision forging part, such as ball valve body, seat, stem, cover, and other mechanical part. reduce cost for customer greatly.

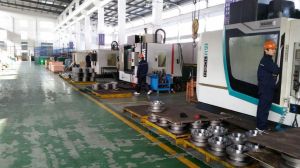

We are offering precision machines. Based on our powerful machining capability, we provide all kinds of precision machining parts.

We are offering forged steel trunnion ball valve. Main features: the trunnion mounted ball valve has been designed two piece body type or three piece body type and with two floating seats, which are movable under the pressure of medium. Under the bottom of seats, seat pre-loading springs are positioned to ensure two floating seats can attach the ball’s surface tightly, other more, pressure of medium also can push seats to attach ball tightly to ensure sealing more reliable. The trunnion ball valve is equipped with a movable seat seal ring which can generate displacement under the pressure of medium. In case that any medium pressure exists, the pressure will press the valve seat seal ring onto the ball tightly, guaranteeing the sealing performance of the ball valve.   design the ball valve are designed in accordance with iso14313、api 6d、bs 5351 simple structure with good sealing performance and small torque; full bore and reduced bore design with the minimum flow resistance (zero actually); emergency sealant injection; cavity pressure self relief; independent ball and stem; low emission packing; fire safe, anti-static and anti-blowout stem design; valve seat function dbb, dib-1, dib-2;   product range body material: astm：a105、lf2、f11、f22、f304（l）、f316（l）、f51、f6a、20alloy etc. Nominal diameter:2"～48"（dn50~dn1200） end connection: rf, rtj, bw pressure range: class150～2500（pn16~pn420） working temperature:-46℃～+200℃ operation: lever, gear-box, electric, pneumatic, gas over oil actuator and electro-hydraulic actuator
