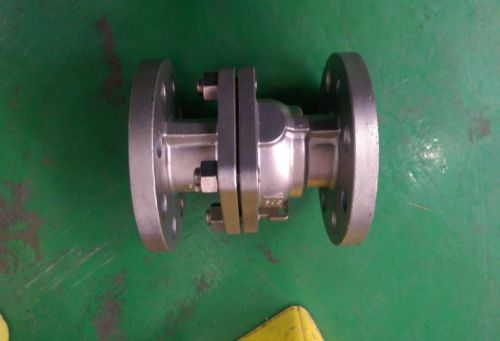

Forged Steel Floating Ball Valves

We are offering forged steel floating ball valves.
Main features:
principle of the forged steel floating ball valve: this kind of ball valve has a floating ball supported by two valve seats. Under the medium pressure effect, a certain displacement can be generated by the ball itself so as to be pressed onto the seat seal ring at the outlet, guaranteeing tightness at the outlet.â
â
design
the ball valve are designed in accordance with iso17292�bs 5351�api6d�api607
simple structure with good tightness and small torque;
have reduce bore type and full bore type with the minimum flow resistance (zero actually);
low emission packing;
fire safe, anti-static and anti-blowout stem design;
optional iso 5211 top flange
â
product range
body material: astm�a10, lf2, f11, f22, f304(l), f316(l), f51,f6a,20alloy ect.
Nominal diameter:12��-6���dn15~dn150�
end connection: rf, rtj, bw, thr, sw
pressure range: class150 � 600�pn16~pn100�
working temperature: -46âºc- +200âºc
operation : lever, gear-box, electric, etc
