Jinan Sinon Cnc Machine Co., Ltd

Jinan, Shandong, China

• MOQ 1 Set(s)

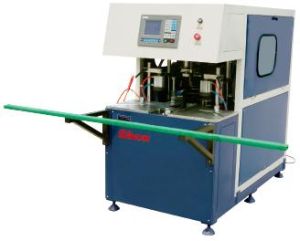

Processing performance and feature 1.professionalused in cleaning the welding tumor in 90°corner of external for window frameand sash, the upper and lower of profile as well as the groove of rubber strip. 2.ithas multi-function such as vertical milling, saw milling and broaching and soon. 3.two-axiscnc cleaning the corner of processing flow controlling make the operation iseasy. 4.adoptsindustry grade computer system, closed-loop controlling, ensures highprecision. 5.interfacein figures and diagrams which can display directly the moving trace of thecutter. 6.itis simple, direct-viewing with the demonstrating program function, can settwo-dimension processing programming by cnc controller. 7.equippedwith usb connection, may connect with external store. 8.thevalue can be stochastic keyed, revised the processing program on the spot, sothat make the welding seam error can be cleaned up efficiently. 9.adoptthe dust-cleaner which can clean the dust so that ensure the operator health. technical parameter 1 input power source 380v/50hz 2 total power 2.0kw 3 working air pressure 0.5~0.8mpa 4 air consumption 200l/min 5 diameter of milling cutter 200mm 6 principal axis rotate speed 2800r/min 7 processing profile height 30~120mm 8 processing profile width 30~110mm 9 dimension 2000×1930×1500mm 10 weight 640kg

• MOQ 1 Set(s)

Function the welding machine is a new type of special equipment of plastic doors and windows, it can also weld a variety of window frames at the same time. the machine has four welding head, joint action can work four head or one head , separately forward two heads and behind two heads .work only when the operator put the profile, start automatically complete all the welding process. performance characteristic european most advanced models, can automatically convert the welding sew 0/2mm. High-precision linear motion guide with round bearing, upper and lower grinding pressure with clamp for casting as a whole, cnc machining, heavy-duty frame structure, machine is firm; high-precision parts, strict quality control assembly with better stability. cylinder, solenoid valve, plc, low voltage electrical parts and other electrical / gas component through a rigorous choice of imported brands, high reliability, high configuration with siemens, schneider, smc and other brands. general profile positioning mechanism, any two welding head can work, maximize machine utilization, ensure the amount of welding, high dimensional accuracy of finished welding. The machine uses the overall symmetry, balance and stability of the flow head pressure. Positioning plate, jaw, symmetrical design of welded plate, processing a wide range of parts interchangeability, and easy to replace. The welding cell for multisection complex-type windows, and door and window products for requiring high quality color, coextrusion, coating upvc plastic window processing. Squeeze knife cutter made of high quality alloy tool steel, long- life machine interface of the welding parameters, profiles of different formulations facilitate the adjustment of welding parameters to achieve the best quality. Low pressure alarm system instructions, avoid the emergence of substandard products. Differential treatment temperature, scr system allows a small fluctuation range of the heating plate, high strength welding angle. meet the european ce standard, high-performance security. technical parameter operation air pressure: 0.5~0.8mpa consumption: 100l/min input power: 380v 50hz power: 5kw welding profile height: 30-140mm welding profile width: max 120mm welding range : 340mm-4500mm outline dimension: 5000mm×1100mm×1800mm total weight: 2200 kg.

Processing performance and features 1.suitable for cutting pvc profile. 2.angle range: -45°, 45°, 90°., angle adjusting rotated by manual. 3.swing infeed make cutting force to the profile completely so that ensure the accurate. 4.double compaction system in horizontal and vertical direction for different profiles, clamp more reliable. 5.install the mullion cutting device, more convenient and accurate. 6.both hand concurrent operation button, ensures the oprator safety. technical parameter input power source 380v/50hz cutting length 450~3500mm total power 2.2kw cutting angle ±45°, 90° working air pressure 0.4~0.6mpa cutter feeding speed 0~3m/min air consumption 100l/min dimension 4000×1120×1450mm diameter of blade 350mm weight 650kg processing precision •cutting profile surface roughness ≤0.1mm •cutting angle tolerance: ±5′ •cutting roughness: ra12.5μ
