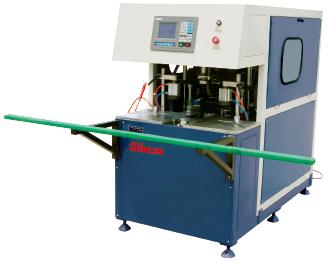

Window Cleaning Machine

Processing performance and feature
1.professionalused in cleaning the welding tumor in 90°corner of external for window frameand sash, the upper and lower of profile as well as the groove of rubber strip.
2.ithas multi-function such as vertical milling, saw milling and broaching and soon.
3.two-axiscnc cleaning the corner of processing flow controlling make the operation iseasy.
4.adoptsindustry grade computer system, closed-loop controlling, ensures highprecision.
5.interfacein figures and diagrams which can display directly the moving trace of thecutter.
6.itis simple, direct-viewing with the demonstrating program function, can settwo-dimension processing programming by cnc controller.
7.equippedwith usb connection, may connect with external store.
8.thevalue can be stochastic keyed, revised the processing program on the spot, sothat make the welding seam error can be cleaned up efficiently.
9.adoptthe dust-cleaner which can clean the dust so that ensure the operator health.
technical parameter
1
input power source
380v/50hz
2
total power
2.0kw
3
working air pressure
0.5~0.8mpa
4
air consumption
200l/min
5
diameter of milling cutter
200mm
6
principal axis rotate speed
2800r/min
7
processing profile height
30~120mm
8
processing profile width
30~110mm
9
dimension
2000×1930×1500mm
10
weight
640kg
