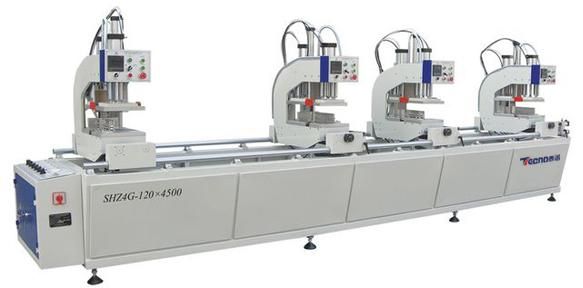

We are offering pvc welding machine. introductionthe machine applies to pvc window and door processing; lm linear kinematic pairand plc control system adopted result high accuracy and efficiency. technical parametermodel shz4g-120*4500 input voltage 380v/50hz input power 4.5kw air pressure 0.4-0.6 mpaair consumption 200l/minwelding length 400-4500mmwelding height 20-120mmoverall dimension 53009501700mm.

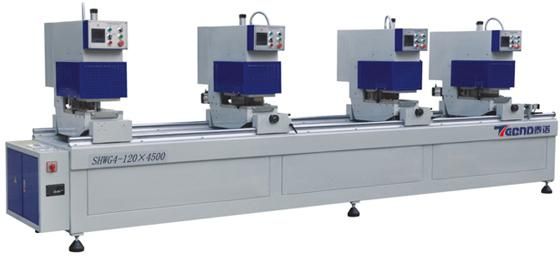

We are offering pvc welding machine.four-head seamless welding machine. introductionthe machine suitable for colored, co-extrusion and sprayed pvc profiles, the welding slag immediately cut by the cutter installed on the clamp devices, hair crack less than 0.2mm.jdb solid oil less bearing kinematics pair, lm linear guide kinematic pair and plc control system adopted result high accuracy and efficiency. technical parametermodel shwg4-120*4500input voltage 380/220v/50hzinput power 4.5 kwair source 0.7-0.8mpa air pressure 0.5-0.8mpaair consumption 260l/minwelding length 400-4500mmwelding height 20-120mmoverall dimension 5300*950*1700mm

We are offering pvc welding machine. Cnc vertical four-point welding machine. introduction* one working circle, one frame. *the machine heads automatically back to the origin position, easy operation. * feeding system adopts imported linear guide pair, with high accuracy and smooth working. *size tolerance compensation is available to increase welding precision. * common profile fixture along with the machine can meet various height profiles' processing requirement. *the length located by ball screw makes high accuracy. *back plates are convenience to change, when connecting joints, the two clamping boards feed symmetrically results parallel welding, increase the welding strength. * imported computer control system, easy operation and high stability. technical parametermodel shp4-cnc-3000binput voltage 380v/50hzinput power 10kwspindle power 5.5kw air pressure 0.6-0.8mpaair consumption 200l/minwelding height 25-150mmmax. Welding width 140mmwelding range 400*400-1800*3000mmoverall dimension 5000*2000*2860mm

We are offering pvc welding machine. Four-head seamless welding machine - single side. introductionthe machine suitable for colored, co-extrusion and sprayed pvc profiles, the welding slag immediately cut by the cutter installed on the clamp devices, hair crack less than 0.2mm. Jdb solid oil less bearing kinematics pair, lm linear guide kinematic pair and plc control system adopted result high accuracy and efficiency. technical parametermodel shwd4-120*4500 input voltage 380v/220v/50hz input power 4.5kw air source 0.7-0.8mpaair pressure 0.6-0.8 mpaair consumption 260l/minwelding length 400-4500mmwelding height 20-120mmoverall dimension 5300*950*1700mm
