Lonrun Industrial Co. Limited

Qingdao, China

• MOQ 1 Set(s)
• Brand NameJINFANGYUAN
• Availability28T
• Knife size4180x200x18mm
• Feeding servo motor3kw
• Max. peeling length4180mm
• Conveyor motor0.75kw
• Main motor power45kw
• Overall dimension9450x2800x2300mm
• Max. peeling diameter1500mm

• MOQ 1 Set(s)
• Brand NameLonrun
• Feeding speed8-40m/min
• Air flow for dust collector28000m3/h
• Main motor power75kw*2
• Working thickness5-100mm
• Sanding belt speed28m/s
• Working width1300mm
• Size of sanding belt1360*2720mm
• Feeding motor power15kw
• Overall dimension1850*3400*3000mm
• Total power165.7kw
• Net weight15000kg
• Working air pressure0.55mpa
• Working length﹥500mm

• MOQ 1 Set(s)
• high-pressure pump flow rate10ml/r
• active beam400mm
• Nominal gross pressure5000 KN
• hot platen size2700×1370×52 mm
• control modeAutomatic pump
• Pressurization≤25Mpa
• low-pressure pump flow rate320 ml/r
• stroke600MM
• number of hot platens7 pcs
• low-pressure pump motor power15 kw
• closing time6 s
• steel thickness Of Upright Column40mm,10㎜
• top beam and lower beam800 mm
• Distance Between Hot Platens100 MM
• steel thickness of active beam40mm, 20mm
• cylinder number6 pcs
• motor brandChint
• feeding directionFeed from the side of 2400mm
• unit pressure15 kg/m2
• Steel Plate of upright column400mm
• high-pressure pump motor power11 kw
• diameterΦ200 mm (WUXI)
• steel thickness of top beam and lower beam40mm,20m
• number of openings6 layers

• MOQ 1 Set(s)
• Brand NameLonrun
• Working width1300mm
• Working air pressure0.55mpa
• Second Sanding belt speed24m/s
• Net weight4500kg
• Working thickness2.5-80mm
• Total power93.74kw
• Feeding speed6-30m/min
• Feeding motor power4kw
• Size of sanding belt1330x2500mm
• Third sanding belt speed18m/s
• Air flow for dust collector12000m3/h
• First Sanding belt speed24m/s
• Main motor power37kw 30 kw 22kw
• Working length﹥500mm
• Overall dimension2450x2600x2150mm

• MOQ 1 Set(s)
• Brand NameLonrun
• Main motor0.75kw
• Net weight420kg
• The depth of entry1250mm
• Splicing speed10-30m/min
• Overall dimension2100x650x1300mm
• Veneer thickness0.3-3mm
• Working table height900mm

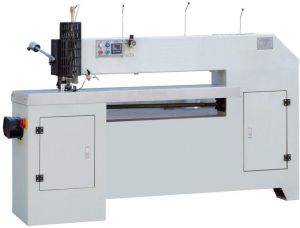

We offer veneer slicer. This machine is mainly used in plywood production for veneer splicing.

• MOQ 1 Set(s)
• Brand NameJINFANGYUAN
• Veneer transport motor2.2kw
• Availability48T
• Wood clamping methodHydraulic control
• Main moter45kw (frequency conversion)
• Slicing thickness0.1-3.5mm
• Max. slicing speed90pcs/min
• Slicer blade size4200x200x20mm
• Max. Workpiece size4090x900x760mm
• Overall dimension6900x5100x4100mm
• Feeding motor3.5kw*2
• Circulating heat water motor1.5kw
• Motor of oil pump11kw

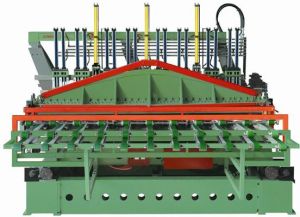

We offer vertical veneer slicer. This machine is based on capital, designed by the experts from america, canada, taiwan, and some of shandong science and technology university. Design concept: safety, quality, effeciency, low price, humanness. And we have got 5 pantents.

• MOQ 1 Set(s)
• Brand NameLonrun
• Main motor power22kw
• Net weight20000kg
• Overall dimension8095x3975x2710mm
• Clamping motor power3kw
• Lifting motor power3kw
• Slicing veneer thickness0.08-2.2mm
• Slicing frequency5-28t/min
• Max. slicing size3000x650x720mm

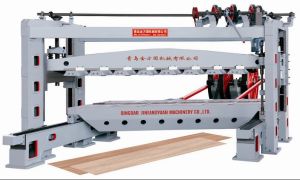

We offer horizontal veneer slicer. This machine is mainly for slicing thin veneers, including engineered veneer.

• MOQ 1 Set(s)
• Brand NameJINFANGYUAN
• Feed motor power0.18kw
• Hydraulic pump power4kw
• Net weight2300kg
• Max.cutting thickness50mm
• Scissors size3250*145*16mm
• Max.hydraulic pressure14mpa
• Overall dimensions3070*1450*1520mm
• Max.cutting length2700mm

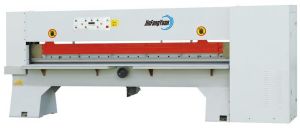

We offer hydraulic veneer guillotine. This is mainly for veneer cutting, used in veneer and plywood production.
