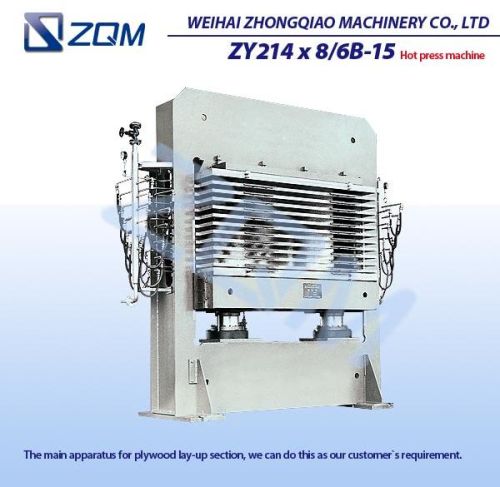

Plywood Hot Press Machine

Model  ZY214 x 8/4B-15 ZY214 x 8/6B-15 Nominal pressure (KN) 4000 600 Platen size (mm) 2700 x 1370 x 42 2700 x 1370 x 42 Finished panel size (ft) 4 x 8 4 x 8 Daylight distance (mm) 70 70 Daylight number 15 15 Cylinder diameter (mm) 360mm x 2 400mm x 2 Working stroke (mm) 1050 1050 Working pressure (MPa) 25 25 Total motor (KW) 26 26 Net weight (kg) 34000 35000 Overall dimension(cm) 500 x 144.6 x 539.5 500 x 144.6 x
