Mestechs

Shenzhen, Guangdong, China

• MOQ 1 Piece

We are offering gpon onu embedded communication module. Mtg400 uplink provides a pon (passive optical network) interface, with olt (optical line terminal) combined to use. Support efc and dba, vlan and qos, also transparent bridge and spanning tree protocols, igmp snooping, ipv4 etc. Downlink provides a rj45 interface, with industrial dip pin connectors 10base-tx/100base-tx, for user-friendly embedded application with small size of 96×100mm. High efficiency dc/dc circuits, using dc5v input, to improve power conversion efficiency, more significantly reduce the power consumption. Features1. high performance, highly integrated gpon onu module 2. low power consumption 3. full duplex , auto-negotiation 10/100 base-t 4. follow the major gpon vendor platform 5. support remote configuration olt 6. multi-interface configuration (rs232/i2c/ethernet/gpio) 7. compact embedded design to ensure stability of the system. Specifications hardware: 1. One gpon interface, sc single mode, single fiber 2.5gbps 2. One 10/100m auto-negotiation (rj45) ethernet interface, double line pin connectors multiplexing 3. Up to ten gpio interfaces, common 2.54mm industrial dip pin connectors

• MOQ 1 Piece(s)

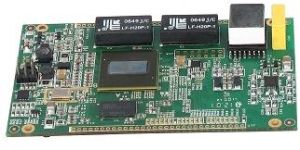

We are offering embedded module-iv604. Specification Conform to ITU-T G.993.2 (VDSL2), ITU-T G.993.1-2004 (VDSL)   Compatible with ADSL/ADSL2+/VDSL2 VDSL2 Band plan: plan 997/ plan 998 VDSL2 Profile: 8a/8b/8c/8d/12a/12b/17a/30a Support AnnexA/M/J, Annex B is customizable. Internet connection mode: PPPoE, PPPoA, IPoA, MER Support TR-069 remote management Support DDNS Robust routing function: NAT/DMZ/VRRP/DDNS/Telnet/ SSH/NTP/IGMP/RIP/VPN(IPSEC)/IP(MAC) filter etc. Support Bonded DSL Communication interface: DSL/Ethernet/RS232(TTL)/ USB 2.0 Host/ other GPIO Configuration interface: HTTP/TELNET/CLI Dimension: L/W/H: 100× 60x 15(mm) Interface with pin: DIP 1x 30 pin, header size: 2.00 Input voltage: DC/5V, power consumption

• MOQ 1 Set(s)

Features 1. Support multiple access methods: PPPOE dynamic dial-up / fixed IP / DHCP dynamic allocation IP / PPPOE + fixed IP and other methods; 2. Perfect stack: sound TCP / IP protocol stack, support PPPOE / PPPOA and other dial-up procedures to meet auto dialing/ auto-reconnecting; 3. Robust routing function: in addition to NAT / DHCP, user can open the port mapping / DMZ / Virtual Server / Remote Management / IP address filtering/VPN (IPSEC) and other advanced router functions, to meet users various services; 4. Access methods: ADSL access: support ADSL/ADSL2+, Annex A/M/J/B standard. LAN access: Use any LAN port as WAN access. Double system protection: hardware watchdog to resolve problem of hanging, crashes and so on; user can also set the software watchdog, to avoid the issues like non-fixed IP lines 24-hour occupying the same IP; Power input: DC 12-72V

Features module dimension: 60x60x12mm, industrial dip pin interfaces(1x 30 pin, space of 2.0mm ) the unit comes with rich communication interfaces and is integrated with router/4-port switch/wireless ap/firewall 4x 10/100m ethernet lan, support 10/100 base-tx 1x 10/100m ethernet wan, support 10/100 base-tx it is compatible with ieee 802.11b/g/n wireless ap, 11n meet 2t2r, up to 270mbps wireless high-speed data rate. 1x usb2.0, host type a interface, compatible with hsdpa/hsupa/wcdma, edge, gprs, evdo. Support various usb 3g cards in current market. 1x rs232 serial port, ttl level, support command line as configuration control interface. With different access modes: ethernet/wifi/3g provide robust routing, support dhcp server and cpe, ip address, mac address, domain name address filtering, static ip routing, rip v1/v2, nat, napt, dmz, built-in firewall. Support upnp, static routing, vpn ipsec. Provide advanced security features, including: wep64/128, 802.1x, wpa, wpa2, wds, wpa1/2-psk, wpa1/2-802.1x, ip address/ mac address/ port filtering to protect wireless communication at the source and ensure security for data transmission. Single power supply: dc/5v, maximum power consumption is less than 2w.
