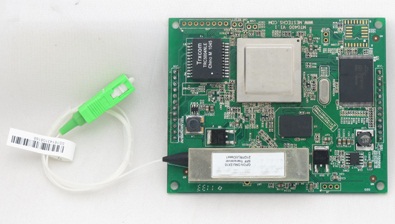

Contact SupplierWe are offering gpon onu embedded communication module. Mtg400 uplink provides a pon (passive optical network) interface, with olt (optical line terminal) combined to use. Support efc and dba, vlan and qos, also transparent bridge and spanning tree protocols, igmp snooping, ipv4 etc. Downlink provides a rj45 interface, with industrial dip pin connectors 10base-tx/100base-tx, for user-friendly embedded application with small size of 96×100mm.
High efficiency dc/dc circuits, using dc5v input, to improve power conversion efficiency, more significantly reduce the power consumption.
Features1. high performance, highly integrated gpon onu module
2. low power consumption
3. full duplex , auto-negotiation 10/100 base-t
4. follow the major gpon vendor platform
5. support remote configuration olt
6. multi-interface configuration (rs232/i2c/ethernet/gpio)
7. compact embedded design to ensure stability of the system.
Specifications
hardware:
1. One gpon interface, sc single mode, single fiber 2.5gbps
2. One 10/100m auto-negotiation (rj45) ethernet interface, double line pin connectors multiplexing
3. Up to ten gpio interfaces, common 2.54mm industrial dip pin connectors
