Ningbo Newshang Textile Co. Ltd

• MOQ 1 Set(s)

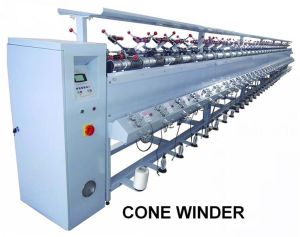

We offer cone to cone winding machine. Features: 1. Perfect soft package edge and density uniformity. 2. Winding transmission: every spindle is driven by a motor (90w) individually which is powered by an inverter. 3. Winding speed and density: 800mmin for cotton yarn and 600mmin for polyester yarn. The density is 0.2-0.4gcm3 (depends on yarn types); 4. Electronic yarn breaks auto-stop function; 5. Anti-hard-edge function and electrical wobble frequency ant patterning function; 6. Package diameter and traverse: diameter ≤φ200mm.the traverse is 152mm. 7. Yarn length counting for per spindle. 8. Advance touch screen operating system. 9. Double-sided 72 spindleset. We could make special type according to the customer’s request! bobbin type 6” (170mm) take-up package tube bobbin (0°) cone 4°20, 5°57, 9°15 layout double-side, can be 12-96 spindles; speed max 1000mmin, can be adjusted by inverter power consumption 90wspindle； yarn tension and waxing device every spindle has a yarn tension and waxing device auto stop device each spindle install auto stop device dimensions l 13700 x w 1050 x h 1650 mm

• MOQ 1 Set(s)

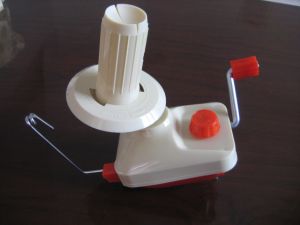

We offer high quality of wool winder, yarn winder for the home using etc.

We are offering yarn winder for the wools, .

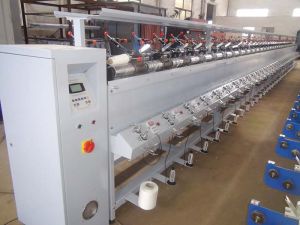

The high speed soft winder for the yarn rewinding, and then goes for the dyeing process to get the various colors.

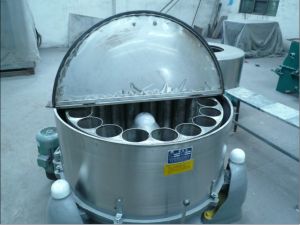

We are offering water extractor machine for the dyed yarn, clothes, etc.

• MOQ 1 Set(s)
• Inner tank Speed900r/min
• CAPACITY51 PCS
• motor Power5.5KW

• MOQ 1 Set(s)

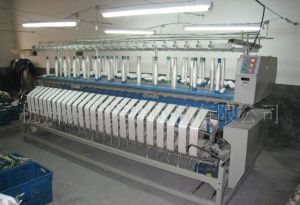

We offe double cone to hank twister. Type b701 is to winding around a bobbin wool (cheese), shake a circumference and a certain number of laps in the wire, and can be widely used in1332and a631e type twister drum vehicles , as well as type zp98 series compound twisting vehicle drum line, shaking in to wire. The machine adopts electronic counting, full circle stop. Specification: 1. No .of spindles: bilateral80 64 single 40 32 2. Spindle gauge: 126m 3. Effective skein gauge: 50-100mm 4. Speed: 251nm 192nm 159nm 5. Circumference: 1300mm-2200mm 6. Motor power: 0.75kw*6 7. Type: bilateral with single deck 8. Weight: bilateral 1800kg 9.overall dimension(l*w*h)：5320*1910*1760mm.

• MOQ 1 Set(s)
• Working temperature130℃
• Capacity5KG, 10KG, 30KG, 50KG, 80KG, 100KG etc
