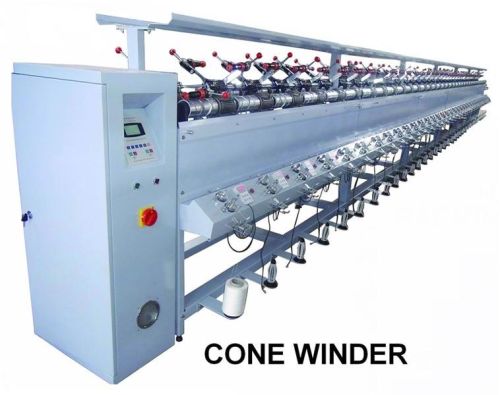

Cone To Cone Winding Machine

We offer cone to cone winding machine.
Features:
1. Perfect soft package edge and density uniformity.
2. Winding transmission: every spindle is driven by a motor (90w) individually which is powered by an inverter.
3. Winding speed and density: 800mmin for cotton yarn and 600mmin for polyester yarn. The density is 0.2-0.4gcm3 (depends on yarn types);
4. Electronic yarn breaks auto-stop function;
5. Anti-hard-edge function and electrical wobble frequency ant patterning function;
6. Package diameter and traverse: diameter ≤φ200mm.the traverse is 152mm.
7. Yarn length counting for per spindle.
8. Advance touch screen operating system.
9. Double-sided 72 spindleset.
We could make special type according to the customer’s request!
bobbin type
6” (170mm)
take-up package
tube bobbin (0°) cone 4°20, 5°57, 9°15
layout
double-side, can be 12-96 spindles;
speed
max 1000mmin, can be adjusted by inverter
power consumption
90wspindle；
yarn tension and waxing device
every spindle has a yarn tension and waxing device
auto stop device
each spindle install auto stop device
dimensions
l 13700 x w 1050 x h 1650 mm
