Flush Bottom Outlet Valve

We offer the best product range of V Port Forged Steel Ball Valve, Trunnion Mounted Ball Valve, Port 3-Way Ball Valve, Jacket Floating Ball Valve and High Pressure Ball Valve.

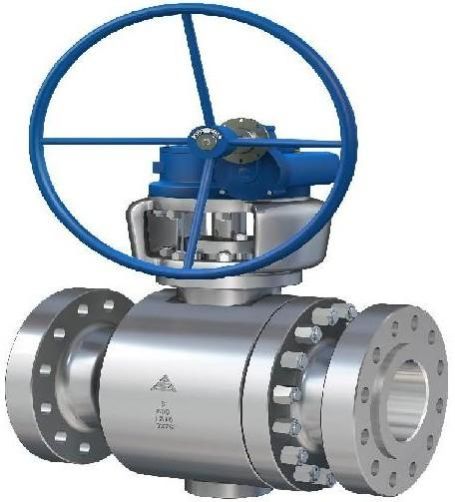

V Port Forged Steel Ball Valve

We Offer V Port Forged Steel Ball Valve. Product DescriptionPressure Class: Class150Class1500 Temperature Range: -196 C680 C Nominal Size: Float Ball Valve 1/2"4" Fixed Ball Valve 2"48" Valve Structure: 2PC, 3PC Valve Body Materials: A105, F304, F316, F304L, F316L Trim Materials: F304, F316, F51, 17-4pH Connection Mode: RF, MF, RJ, BW Driving Mode: Manual, Pneumatic, ElectricProductivity: 7000PCS/YearUnit Price: NegotiableShipment Terms: FOBPayment Terms: L/C, T/T, D/PMinimum Order: 50 PiecesPrice Valid Time: From Aug 04, 2011 To Dec 31, 2011Material: AlloyConnection Form: FlangeChannel: Straight Through TypeStructure: Fixed Ball ValveType: V Type Ball ValveExport Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Additional Information:

Payment Terms : L/C, D/A, T/T

View Complete Details

Ask Latest Price & Details

Trunnion Mounted Ball Valve

We offer trunnion mounted ball valve. product descriptiondesign: asme b16.34/api 6d face to face: asmeb16.10/api 6d end flange: asme b16.5 test: api 6d fire safe test: api 607/api 6fa special: nace mr-01-75 class: 1502500lb anti-static device blow-out proof stem fire safe design class: 1502500lb size: 2"24

View Complete Details

Ask Latest Price & Details

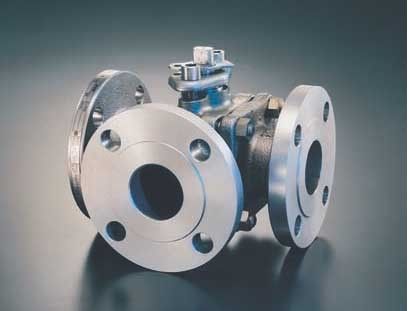

Port 3-Way Ball Valve

Number Of Flower Water Ball Valves
Application Water Fitting
Pattern Plain
Condition New

We offer T/L Port 3-Way Ball Valve. Product Description T/L Port 3-Way Ball Valve Design Standard: Test: API 598, BS 6755, API 6D, ANSI B16.104 Products Range: Size: 1/2"-8" (DN15DN400) Temperature: -29 C+280 C Pressure: ANSI 150lb, 300lb Body: Carbon Steel, Stainless Steel Disc or Ball: Stainless Steel Stem: Stainless Steel Seat: PTFE R. PTFE PEEK PPL Operation: Lever, Gear, Pneumatic & Electric Actuator Features: End Connection Blow-out Proof StemFlange Fire Safe and Anti-static Construction Dependable and Easy Operation Application Oil, Chemical, Petrochemical, Metallurgical, Light industry, Refinery, Power station, Food, Pharmaceutical, Paper making, Mining etc. Available: Fresh Water, Sewage, Sea water, Air, Gas, Vapor, Food, Pharmacy, Medicament Oil, Acid, Alkali, Salt etc.

Additional Information:

Payment Terms : L/C, D/A, T/T

View Complete Details

Ask Latest Price & Details

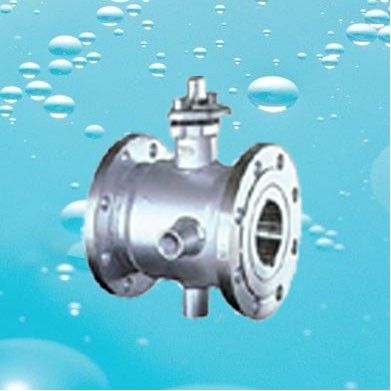

Jacket Floating Ball Valve

Product DescriptionJacket Ball Valve, Side entry structure Size: 1"-8" Pressure: 150LB-300LB Design: API 6D, API 608, BS 5351, ANSI 16.34, API 6FA Face to face/end to end: ANSI B16.10 Flange end dimension: ANSI b16.5 Bw end dimension: ANSI b16.25 Inspection & Test: API598 Fire safe & anti-static: On customers request Available end: Flg-RF Sour service: Nace-01-75 (on request) Available seat: Soft, metal to metal seated Available port: Full bore Materials: 1) Body: WCB, LCB, LCC, WC6, WC9, CF8, CF8M, CF3, CF3M 2) Stem: A105? , F6, SS304, SS316, SS316L, 17-4pH 3) Ball: A105 HCR, A105 ENP, SS304, SS316, 4140 4) Seat: R. PTFE, PTFE, NYLON12 5) Packing: R. PTFE, PTFE, VITON 6) Gasket: PTFE, RPTFE, SPIRAL WOUND

Additional Information:

Payment Terms : L/C, D/A, T/T

View Complete Details

Ask Latest Price & Details

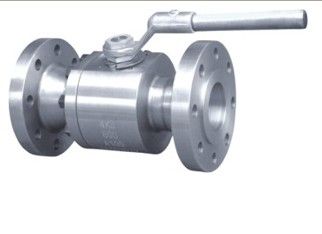

High Pressure Ball Valve

We Offer High Pressure Ball Valve. Product DescriptionDesign and Manufacture: API 6D. ASME B16, 34 BS 5351 @Face to Face Dimension: ASME B16.10, API. 6D @End Flange Dimension: ASME B16.5. @Welding Ends Dimension: ASME B16.25 @Pressure_temperature Ratinqs: ASME B16.34 @Inspection And Test: API 598. APl6D @Type Of Operation: Manual, Gear, Electric. Pneumatic, @Size: 1/2"8" Pressure: Class900Lb-2500Lb @Anti_Static Design Fire Safe Design as per APl607, 6FA @Materials: A105. LF2. F304. F304L. F316. F321. F51

Additional Information:

Payment Terms : L/C, D/A, T/T

View Complete Details

Ask Latest Price & Details

Wafer Type Stainless Steel Ball Valve

Product DescriptionBlow-out Proof Stem Anti-Static Device for Ball-Stem-Body Pressure Balance Hole in Ball Slot 2 Belleville Washer to Self-adjust Packing ISO 5211 Mounting Pad for Easy Automation Fire-Safe Design Available Design: ASME B16.34, API 608 Wall Thickness: EN12516-1 Flange End: ASME B16.5 CLASS 150/300 DIN 2653 PN10-PN40 JIS B2238 10K/20K Inspection & Testing: API 598, EN 12266 Payment & Shipping Terms: L/C, T/TMaterial: Stainless Steel

Additional Information:

Payment Terms : L/C, D/A, T/T

View Complete Details

Ask Latest Price & Details

Stainless Steel Ball Valve-Thread

Product Description1) stainless steel ball valve 2) Material quality: Stainless Steel SS304/SS316 3) Size: DN25-100 (1" - 4") 4) Standards: API, JIS, DIN, BS & GB 5) Type: 1-PCS; 2-PCS and 3-PCS 6) Customers own drawings welcomed.

Additional Information:

Payment Terms : L/C, D/A, T/T

View Complete Details

Ask Latest Price & Details
