We offer a complete product range of 15W Flush Recessed LED Downlight, 3W Flush Recessed LED Downlight and 7W Flush Recessed LED Downlight
15W Flush Recessed LED Downlight (td15, led down light) is a recessed light provided with 125 opening flush with ceiling. 15W Flush Recessed LED Downlight is fitted with patented heatsink of snap-fit ultrathin fins (50x0.4mm, total 1625cm2 surface) and panel of white piano finish, featuring lightweight, stylish compact appearance. 15W Flush Recessed LED Downlight has 50000-hour service life, which making it suitable for retrofit lighting applications.
Features :

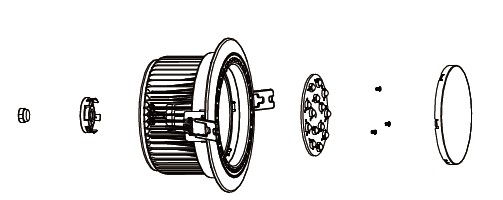

TD15 15W LED Downlight Structure

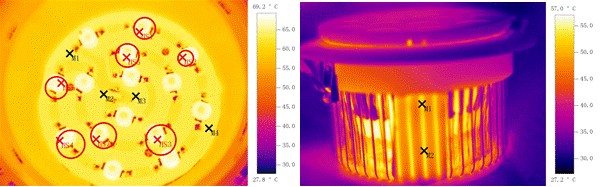

TD15 15W LED Downlight Thermal Test Results
Technical Specifications
| General | |
|---|---|
| Name | TD15 - 15W LED downlight |
| P/N | TD15 |
| Materials | Aluminum + PC lens |
| Electrical | |
| Power Driver | External 15W constant-current power driver |
| Power | 15W |
| Input | 85-265V AC |
| PFC | >0.90 |
| Efficiency | 83% typical |
| Optical | |
| LEDs | SMD2835 LEDs, 30 pieces |
| Flux | 1250lm typical |
| CCT | 4000K / 6000K or custom |
| CRI | 70 / 80 |
| Optical Efficacy | 75lm/W, typical |
| Physical | |
| Size | Ø145 x 78mm |
| Ceiling Opening | Ø125mm |
| Temperature | -20-+60oC (operating), -40-+85oC(storage) |
| Weight | 320g |
| IP Rating | IP20 |
| Standard | CE, FCC, RoHS |
| Lifespan | 50,000 hours |
| Warrantee | 5 years |
3W Flush Recessed LED Downlight (TD3, LED Down Light) is a recessed light installed with 70 opening flush with ceiling. 3W Flush Recessed LED Downlight has a patented heatsink of snap-fit ultrathin fins (30x0.4mm, total 420cm2 surface) and panel of white piano finish, featuring lightweight and compact appearance. Exquisite technique and manufacture quality, 50000-hour service life make 3W Flush Recessed LED Downlight an optimal choice for new installation or retrofit lighting applications in home decoration and other energy-saving lighting needs.
Features :

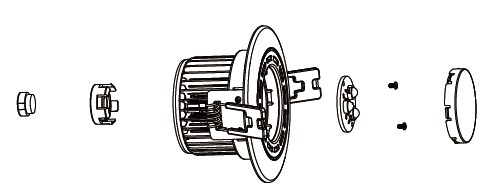

TD3 3W LED Downlight Structure

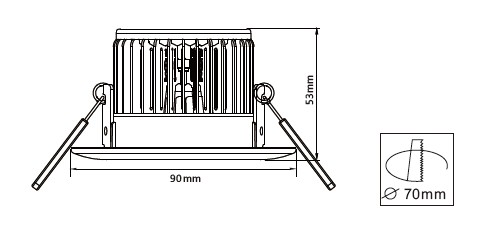

TD3 3W LED Downlight Size
Technical Specifications
| General | |
|---|---|
| Name | TD3 - 3W LED downlight |
| P/N | TD3 |
| Materials | Aluminum + PC lens |
| Electrical | |
| Power Driver | External 3W constant-current power driver |
| Power | 3W |
| Input | 85-265V AC |
| PFC | >0.90 |
| Efficiency | 75% typical |
| Optical | |
| LEDs | SMD2835 LEDs, 6 pieces |
| Flux | 200lm typical |
| CCT | 4000K / 6000K or custom |
| CRI | 70 / 80 |
| Optical Efficacy | 75lm/W, typical |
| Physical | |
| Size | Ø90 x 53mm |
| Ceiling Opening | Ø70mm |
| Temperature | -20-+60oC (operating), -40-+85oC(storage) |
| Weight | 100g |
| IP Rating | IP20 |
| Standard | CE, FCC, RoHS |
| Lifespan | 50,000 hours |
| Warrantee | 5 years |
7W Flush Recessed LED Downlight (td7, led down light) is a recessed light fitted with 80 opening flush and ceiling. 7W Flush Recessed LED Downlight is provided with a patented heatsink of snap-fit ultrathin fins (42x0.4mm, total 840cm2 surface) and panel of white piano finish. 7W Flush Recessed LED Downlight features lightweight and compact appearance. 50000-hour service life makes it an ideal choice for new home decoration and other energy-saving lighting needs.
Features :
TD7 7W LED Downlight Structure

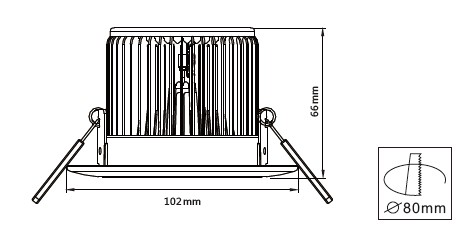

TD7 7W LED Downlight Size
Technical Specifications
| General | |
|---|---|
| Name | TD7 - 7W LED downlight |
| P/N | TD7 |
| Materials | Aluminum + PC lens |
| Electrical | |
| Power Driver | External 7W constant-current power driver |
| Power | 7W |
| Input | 85-265V AC |
| PFC | >0.90 |
| Efficiency | 78% typical |
| Optical | |
| LEDs | SMD2835 LEDs, 14 pieces |
| Flux | 500lm typical |
| CCT | 4000K / 6000K or custom |
| CRI | 70 / 80 |
| Optical Efficacy | 75lm/W, typical |
| Physical | |
| Size | Ø102 x 66mm |
| Ceiling Opening | Ø80mm |
| Temperature | -20-+60oC (operating), -40-+85oC(storage) |
| Weight | 150g |
| IP Rating | IP20 |
| Standard | CE, FCC, RoHS |
| Lifespan | 50,000 hours |
| Warrantee | 5 years |
