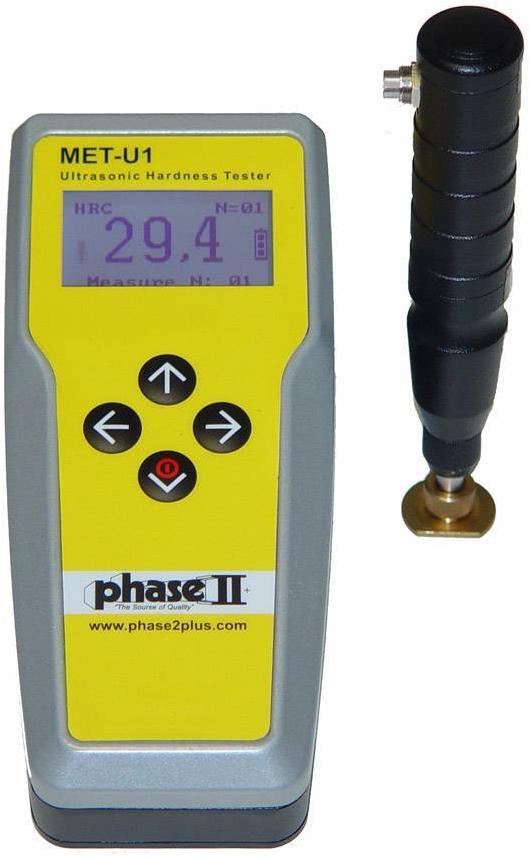

The phase ii ultrasonic portable hardness testers are capable of measuring the surface hardness of a broad variety of metals on flat, round, thin or large surfaces. Unlike the standard dynamic hardness testers, these "state-of-the-art" portable hardness testers incorporate "ultrasonic uci" technology, which enables the hardness testing of very thin and small workpieces, which otherwise could not be tested accurately using a portable device. Non-destructive in it's function, these hardness testers allow for the testing of highly sensitive or finished parts that previously could not be tested in an operational setting. The non-destructive (ndt) feature of these hardness testers allow the operator to accurately test parts without causing physical or structural damage that would normally lead to disposal or refinish of operators part. That translates into less scrap parts lower mfg costs due to necessary inspections. phase ii offers two models of ultrasonic hardness testers that are capable of measuring the surface hardness of a broad variety of metals on flat, round, thin or large surfaces. Accurate measurements of steel, cast steel, alloy steel, aluminum, brass, bronze and copper are easily attained with this compact instrument. the met-u1au1a50u1a100u1a110 portable hardness testers meet astm a1038-10 specifications.

We are offering portable hardness tester. State of the art, digital portable hardness tester is designed to test the hardness of large hard metal parts. Loaded with useful functions only found on high priced models the pht-1800 portable hardness tester is clearly setting a new industry standard by being the most accurate, economically priced portable hardness tester on the market today. Fast test speeds coupled with memory and output, this unit is a hands down winner whether you are out in the field or in the qc shop. the pht-1800 portable hardness tester can perform tests that easily convert to the most popular hardness scales, including rockwell, brinell, vickers, shore, etc.

We are offering digital motorized brinell hardness tester. Features: load cell driven system provides precise control of test force application direct digital reading engineered to obtain highly sensitive and accurate readings perfect for laboratories, workshops, tool rooms, inspection labs, etc. measuring range: 8-650hbw specifications: innovative closed-loop technology. The brinell hardness tester incorporates the latest load cell technology. The test load is applied via a closed-loop control unit with a load cell, a dc motor and an electronic measurement and control unit. The result is highly accurate brinell hardness measurements at all test loads up to 0.5%. The common load overshoot or undershoot as known from traditional dead weight, or open-loop, systems is eliminated. The absence of mechanical weights not only eliminates friction problems but also makes the equipment less sensitive to misalignments caused by vibrations. the whole weight of the tester is 50% less than the traditional dead weights type tester. test load selection by keyboard and lcd screen. fully automatic test cycles. The brinell hardness tester features a fully automatic test cycle, load application, holding, unloading, is performed fully automatically. This greatly improves reproducibility of test results since operator influence is eliminated. selectable dwell times by screen. The indenter, load, and other test information are shown clearly on the large lcd screen. the directions for 0.102fd2 ratios selecting according to the materials and hardness range can be showing on the screen. equipped with a 20x optical microscope to measure the diameter of brinell indention. brinell hardness calculator (bhc) make the hardness value calculation easier and convenient.

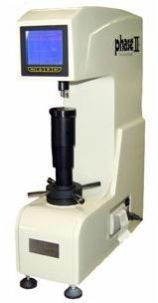

This digital Rockwell hardness tester with fully automated loadunload procedures affords highly sensitive and accurate readings. Micro computer controlled with USB output to built-in mini printer or PC. The 900-365 digital Rockwell hardness tester offers programmable scale conversions, dwell times, statistical capabilities and test counter. Capable of testing in all of the regular Rockwell scales. Automatic conversions to: HRN, HRT, HB, HV, HLD and b. Features: Easily obtain Average, MinMax, S, R Menu selectable system UpperLower Limit Settings Memory of 500 test results Curved Surface Auto Correction.
