1. Structure: 1-base, 2-welding power source, 3-column, 4-boom, 5-column counter, 6-lifting motor, 7-welding oscillator, 8-welding torch and holder. 2. Machine structure is made of aluminum tube. Gantry movement is driven by servo motor, constant torque output, smooth running speed. The boom with strength ribs, boom and column adopt rectangular type rail, with large loading capacity and stable running. 3. Welding torch is vertical to the wheel surface. In order to meet welding requirement, welding gun can be adjusted up and down, side to side and angled turn. They maximize throughout, and welding deformation can be reduced significantly. It is adjusted by ball screw, accurate adjustment and positioning.

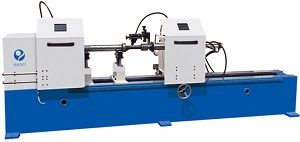

ï�⬠weld circular seams on pipeledger. Welding process will be continual and steady. Machine will stop when the welding is finished. ï�⬠load and unload tire conveniently. ï�⬠this machine also can join 2 tubespipes together. ï�⬠mig welding type, weld double-seam at the same time. The process of mig welding is a welding process in which an electric arc forms between a consumable wire electrode and the workpiece metal, which heats the workpiece metal, causing them to melt and join. Along with the wire electrode, a shielding gas feeds through the welding gun, which shields the process from contaminants in the air. The process will be automatic. ï�⬠machine can work continuously for 24-hour.

Ï�¬ welding torch will weld double circular seams ï�¬ melting thickness and width will be able to reach welding requirement. With uniform and smooth welding appearance. Ï�¬ mig welding type.the process of mig welding is a welding process in which an electric arc forms between a consumable wire electrode and the workpiece metal, which heats the workpiece metal, causing them to melt and join. Along with the wire electrode, a shielding gas feeds through the welding gun, which shields the process from contaminants in the air. The process will be automatic. Ï�¬ machine can work continuously for 24-hour. 1. Left side of machine body is rotary unite, right side is pneumatic thimble. Tank will be fixed by the rotary. Rotation speed is controlled by ac servo motor. And the rotation speed is varied with tank welding position. 2. Japan omron plc and touch screen. 3. Workpiece is supported by pneumatic bracket which ensures that it is flexible and convenient to load and unload tank in the process of welding. Thus increases productive capacity and reduces workers' labor intensity. 4. Japan otc cpve-400 (rated output current is 400a). Its arc is stable, which controls heat input for good penetration and reduced spatter and smoke. 2 sets power source will go with your machine. 5. Machine base is made of cast iron and thick steel tube.

 Machine can weld steel, stainless steel, and red Cu  Weld longitudinal seam on cylindertank. Welding process will be continual and steady.  TIG welding type. The process of TIG welding is: Tungsten electrode excites arc and creates a weld pool, and the filler is workpiece itself, not solderwelding wire. Longitudinal seam will be successfully welded with the help of Tungsten electrode under high temperature. There is not filler wire, there will not be liquid metal. Welding time is shorter, heat will disappear immediately.  Machine can work continuously for 24-hour.

 single solder wire mig welding type. The process of mig welding is a welding process in which an electric arc forms between a consumable wire electrode and the workpiece metal, which heats the workpiece metal, causing them to melt and join. Along with the wire electrode, a shielding gas feeds through the welding gun, which shields the process from contaminants in the air. The process will be automatic.  wire diameter：φ0.8-1.2mm  speed：3-10mms  welding current：400a  shielding gas：co2
