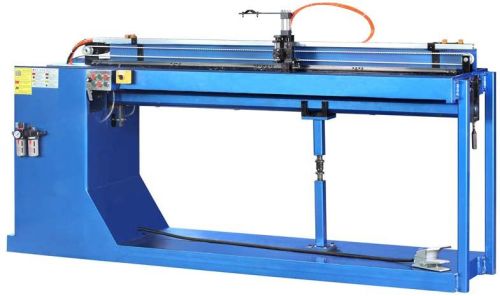

Ssw Automatic Straight Seam Welding Machine, Brand Name : DURO

SSW Series Automatic Argon Arc (Plasma) Straight Seam Welding Machine
Automatic Argon Arc(Plasma) Straight Seam Welding Machine mainly includes two parts: specially designed Straight Seam Automatic Machinery Part and Standard Welding Source Part
According to different welding requirement of various materials , the Automatic Straight Seam Machinery Part can be designed into two kinds : Plate Type pressing Mechanism and Keyboard Type Copper Pressing Mechanism, to get the regular and stable clamping and cooling effect.
Standard welding Source Part includes TIG(tungsten inert gas shielded arc welding), MIG(metal inert gas shielded arc welding) MAG(metal active gas arc welding) SAW(submerged arc welding)PAW(plasma arc welding),etc, Automatic Machinery Part can be equipped by the standard welding source manufactured by our company , can also work with other well-known brands of welding power
Automatic Machinery Part is adopted PLC control, DC motor drive has stepless adjustable welding speed and interfaces with any power source .
Weld Seam back up design has a groove to form a weld on the bottom of a welded plate and provide consistent gas flow to the back of the weld, to assure the stable gas shield and ensure double-side forming in single side welding.
Automatic Straight Seam welding Machine is mainly used for the high quality and low distortion automatic straight welding, such as metallic cylinders and aligned plates made with stainless steel , iron , aluminum and brass, etc.
Compared with the traditional manual welding way , high welding efficiency and speed, well welding quality and good consistency
Item Model SSW-300 SSW-500 SSW-800 SSW-1000 SSW-1200 SSW-1500 SSW-2000 SSW-3000
Input voltge 220V380V440V480V,5060Hz
Max welding length 320mm 500mm 800mm 1000mm 1200mm 1500mm 2000
mm 3000mm
Workpiece diameter 48-800mm 60-800 76-800mm 85-800mm 98-800mm 115-800mm 150-960mm
Workpiece thickness 0.3-3mm
