Qingdao Shengtuo Machine Tool Co.,Ltd.

Qingdao, Shandong, China

• MOQ 1 Set(s)
• Brand NameQingdao ShengTuo

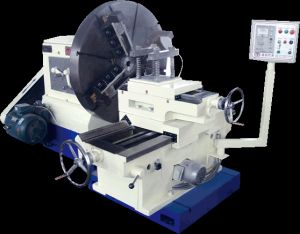

We are offering engineering facing lathe machine with headstock. Technical parameters: power of main motor: 11kw, power of feed rate:1.1kw spindle speed range:21~216 rmin maximum swing diameter of workpiece:1600mm maximum length of workpiece:400mm the cross-feed travel of slide carriage:800mm the longitude-feed of workpiece:400mm maximum load capacity:3t  adjusting mode of feed motor: stepless ，rotated speed of feed-regulating motor: 125~1250 rmin applications: this kind of machine is suitable for processing various large-diameter workpieces. It is widely applied to many industries , such as rubber machinery , textile machinery , chemical machinery , automobile manufacturing and so on , mostly suitable processing various flanges , valves , pressure vessels , boilers, tire moulds, plastic moulds, and other workpieces . Specifications:  customers can customize the lathes, according to their workpieces. standard configuration: 1set of headstock, 1piece of 4-jaw chuck φ1600mm (500mm-long per jaw), 1 piece of chuck wrench , 1 set of 1.56m bed competitive advantages: low price with top qulity and fast delivery; 25 years' rich exprience in producing the lathes; high reputation at home and abroad; having advanced equipments, ensuring a large productive capacity and satisfactory quality. Reasonable in stucture and strong in rigidity with large power and good stability. Easy for operation and beautiful apprearance. Looking forward to your enquiries!

• MOQ 1 Set(s)
• Brand NameQingdao ShengTuo
• Lathe weightabout 8 Tons
• Ball screw(made in China)2 sets
• Electric lubrication system1 set
• Adjusting mode of feed motorFrequency control
• Overall dimensions3200×2200×2500mm
• Spindle speed range0~103r/min

• MOQ 1 Set(s)
• Brand NameQingdao ShengTuo
• Adjusting mode of feed motorFrequency control
• Guangzhou CNC system 980TDB
• Automatic tool post240mm
• Overall dimensions4000×1650×1700mm
• Giudeway  width760mm
• Lathe weightabout 8Tons
• Cutter bar section size50×50mm
