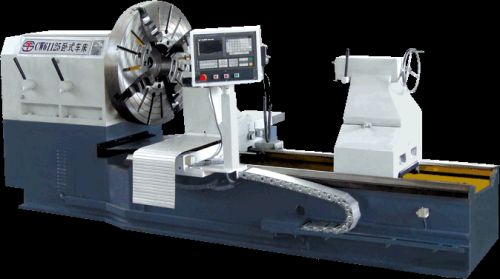

CNC Lathe, Brand Name : Qingdao ShengTuo

we are offering cnc lathe . technical parameters:
power of main motor(4): 11kw
power of feed rate: 0.75kw
level 6-speed range: 23-180rmin
max. swing diameter of work piece: φ1300mm
max. swing diameter over the plate: φ1000mm
max. length of work piece: 2000mm
the cross- feed travel of slide carriage:650mm
the longitude- feed travel of slide carriage:2000mm
the speed of feed motor: stepless
maximum load: 2t
apron aspect pass automatically
applications:
this machine tool is widely applied to many industries such as rubber machinery, mine machinery, automobile manufacturing, aviation and shipbuilding and chemical machinery and so on, mostly suitable for processing large-diameter tire moulds, large-diameter flange, various of valves pipelines, steamer machine accessories and helical supports and other workpieces.
standard configuration:
one set of spindle box
the overall bed and one set of apron
one piece of four-jaw chuck of 800mm
one piece of tailstock
two special chuck wrenches
optional configuration:
chuck of 1000mm
the main motor of 15kw
can be extended bed
cnc system
competitive advantages:
low price with top quality and fast delivery;
having 25 years' rich experience in producing the lathes;
enjoying high reputation at home and abroad;
having advanced equipments, ensuring a large productive capacity and satisfactory quality.
reasonable in structure and strong in rigidity with large power and good stability.
easy for operation and beautiful appearance.
if you are interested in our product or need further information, please don’t hesitate to contact us.
looking forward to your contact.
