Qingzhou Construction Machinery Co.,Ltd

.., China

• MOQ 1 Set(s)
• Rated loading1000KGS
• Agent Urgent Wanted
• EngineChanchai/Xinchai
• CertificateCE、ISO

• MOQ 1 Set(s)
• Turning Radius3000mm
• CertificateCE、ISO
• EngineChangchai L24
• Rated Power24HP

• MOQ 1 Set(s)
• Loading Capacity800KGS
• FrameArticulated Frame
• Engine power28HP
• AgentUrgent Wanted
• EngineChangchai L28

• MOQ 1 Set(s)
• Engine power37KW
• AgentUrgent Wanted
• CertificateCE、ISO
• Optional ColorYellow/red/gray/black
• EngineChangchai 4L68

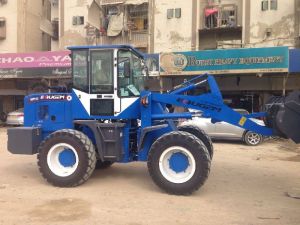

We are offering grab loader. Model: zl12f item parameters performance 1 .rated load 1200 kg 2. Total weight 3360 kg 3. Rated bucket capacity 0.6 m3 4. Max. Tractive force 30 kn 5. Max. Breakout force ≥ 32 kn 6. Max. Gradeability 38° 7. Dumping height 2800 mm 8. Dumping reach 1000 mm 9. Raising time ≤ 5.0s 10. Total cycle time ≤ 9.5 s 11. Overall dimensions (l x w x h) 5040*1680*2600 mm 12. Min. Turning radius 3200 mm engine 13. Model changchai 4l68 14. Type four-cylinder, inline, water-cooled, four-stroke engine 15. Rated power 37 kw 16. Rated speed 2200 rpm 17. Min. Fuel consumption ratio ≤ 230 g/kw•h transmission 18. Hydraulic torque converter zl240 integrated torque converter 19. Gear shift 1 forward, 1 reverse, 1 high speed, 1 low speed 20. Max. Speed 25 km/h drive axle 21. Model of axle 50 drive axle 22. Wheel tread 1400 mm 23. Wheel base 2150 mm drive 24. Mode 4-way drive hydraulic system 25. System working pressure 16 pa 26. Fuel tank capacity 75 l brake system 27. Service brake single-line, hydraulic, expansion-shoe brake on 4 wheels 28. Parking brake hand flexible shaft controlled disc brake tyre 29. Type specification 12-16.5 30. Front tyre pressure 0.40 mpa 31. Rear tyre pressure 0.35 mpa
