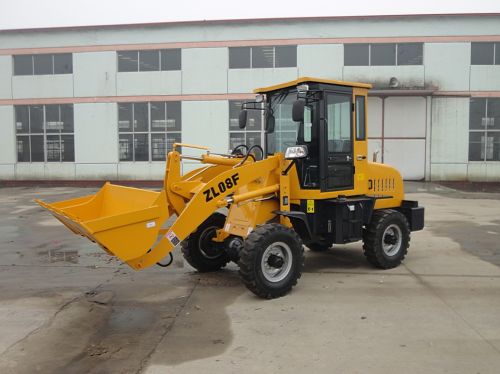

Mini Wheel Loader

We are offering mini wheel loader.
Model: zl08f
item parameters
performance 1 .rated load 800 kg
2. Total weight 2400 kg
3. Rated bucket capacity 0.3 m3
4. Max. Tractive force 28 kn
5. Max. Breakout force ≥ 21 kn
6. Max. Gradeability 38°
7. Dumping height 2680 mm
8. Dumping reach 900 mm
9. Raising time ≤ 4.0 s
10. Total cycle time ≤ 9.0 s
11. Overall dimensions (l x w x h) 4800*1640*2550 mm
12. Min. Turning radius 3000 mm
engine 13. Model changchai l28
14. Type single-cylinder, horizontal, water-cooled evaporative, four-stroke engine
15. Rated power 20 kw
16. Rated speed 2200 rpm
17. Min. Fuel consumption ratio ≤ 244.8 g/kw•h
transmission 18. Mode mechanical shift
19. Gear shift 2 forward, 1 reverse, high & low speed
20. Max. Speed 25 km/h
drive axle 21. Model of axle 50 drive axle
22. Wheel tread 1330 mm
23. Wheel base 2130 mm
drive 24. Mode 4-wheel drive
hydraulic system 25. System working pressure 16 pa
26. Fuel tank capacity 60 l
brake system 27. Service brake drum brake
tyre 28. Type specification 8.25-16
29. Front tyre pressure 0.40 mpa
30. Rear tyre pressure 0.35 mpa
