Shang Hai Jian Ye Heavy Industry Co. ltd

Shanghai, China

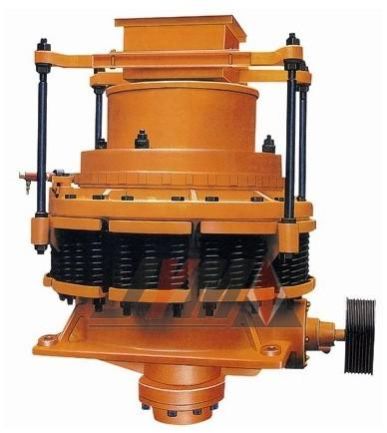

We are offering cone crusher. The shanghai jianye cone crusher series has a feature of reliable construction, high productivity , easy adjustment and low operating cost. It is widely used both domestic and abroad in metallurgy, architecture, roak making , chemistry and silicate industry for crushing various mid-hard and hard ores and rocks. It's spring release system acts as an overload protection to allow the tramp iron to pass without damage to the crushing chamber. The sealing system uses double dry oil and water sealing to separate the lubricating oil from stone dust to provide its reliable operationg .the crushing chamber has atandard, medium and short head typer to fit the needs of medium crushing , medium-fine crushing and fine crushing. cone crusher features: 1) high quality and productivity2) off time shorten3) easy maintenance, low expense4) unparalleled in medium and fine crushing

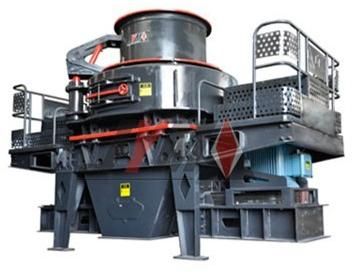

We are offering vertical shaft impact crusher. This series designed and manufactured with optimization by introducing advanced technology at home and abroad.it is operated stably and reliably, easy to maintain, and has high efficiency for breaking.the fineness product is in bubic shape, with lower content of needle-like particles, especially suitable for plastic of stone material, and for production of sand with high ratio.the series of pcl vertical shaft impact crusher can be used widely in fineness breaking task for rock, cobble, non-ore and so on. pcl vertical shaft impact crusher operating principle: the materials fall into the impeller from the head of the machine and with the function of high-speed centrifugal force, they strongly hit against and highly grind the other parts of the materials bypass flowing around the impeller in an umbrella form. After mutual impaction and between the impeller and the machine shell, the materials will move like a vortex and will be impacted, rubbed and pulverized many times. Then they will come to the required fineness controlled by screening equipment, and discharge from the bottom of the machine.

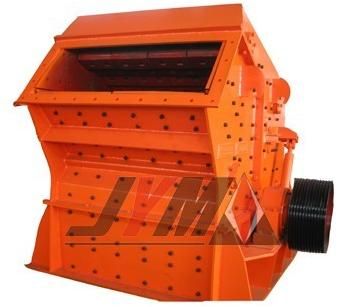

We are offering impact crusher. This impact crusher series is optimized after adopting domestic and foreign technique.it can process granite, basalt, limestone, etc, which the granularity is not bigger than 120-300 mm and crushing compression strength is not more than 320mp.it features high crushing scale, high crushing efficiency, and it is convenient for maintenance.this cubeshaped fineness product is the first-class device used in high grade road surface, railway, water conservancy and eledtrictiy industry. impact crusher operating principle:it is a kind of crushing equipment, using impact energy to crush materials. When materials get into the area where the board hammer plays a part, under the impact function of board hammer at a high speed, the crushed ones are thrown to the impact device above the rotor continuously. And then they are rebounded from the impact liner to the area where the board hammer plays a part, and are impacted again. The materials from large ones to small ones get into the impact cavity for being crushed repeatedly. The process is going on until the materials are crushed to the required sizes and discharged from down of the machine.

We are offering jaw crusher. This jaw crusher series is used in primary crushing of material.it processes various kinds of material with crushing compresion strength not more than 320mp.it features firm structure, stable performance, large capacity, even producing granularity, convenient maintenance and economical running expense.it has been widely applied in area of mining, construction material, smelting, railway, high grade road surface, water conservancy, etc. jaw crusher operating principle:the motor drives the belt wheel, and makes movable jaw up and down by eccentric shaft. When the movable jaw rises, the angle between the fixed jaw and movable jaw gets larger, and the materials can be crushed to reach the crushing target. When the movable jaw is down, the angle between the fixed jaw and movable jaw becomes smaller. The movable jaw plate leaves the fixed jaw plate under the function of drawbar and spring, and then the crushed materials are discharged from the lower outlet of the crushing cavity.

We are offering compoud cone crusher. The cone crusher of pyf series, widely used in the industries of metallurgy, building material, road construction, chemical engineering & silicate, is suitable for crushing all kinds of ores and rocks with hardness of medium or above. This cone crusher features the high crushing ratio, high efficiency, high handling capacity, low operation cost, easy adjustment and economical operation. The quality of material used for components and reasonable design of construction contributes to its longer running performance and even granularity of the crushed product in addition to reducing the circulation load; and furthermore by introducing the hydraulic cleaning chamber system into the crushers of middle and large size, the down time is reduced accordingly. The user may choose different type of chamber upon different request ferrly, because of the wide range of products to be provided. This cone crusher adopts grease sealing so as to prevent the watering and draining system from being blocked and avoid the defect of easy mix of water and oil. The spring safety system is the protection unit against overload, and keeps the crushing chamber from being damaged by foreign substance or iron pieces. This cone crusher is divided into two types; the standard type and the short head type. Normally the large size of material is fed into the standard type, which means that the size of discharge is also much coarse; and the small size of material is fed into the short head type due to its steep crushing cone, which will unavoidably influence the size of discharge, and therefore it is much suitable for producing the fine goods. Consequentially the standard type is generally used for medium and coarse material, and the short head type for medium and fine material.
